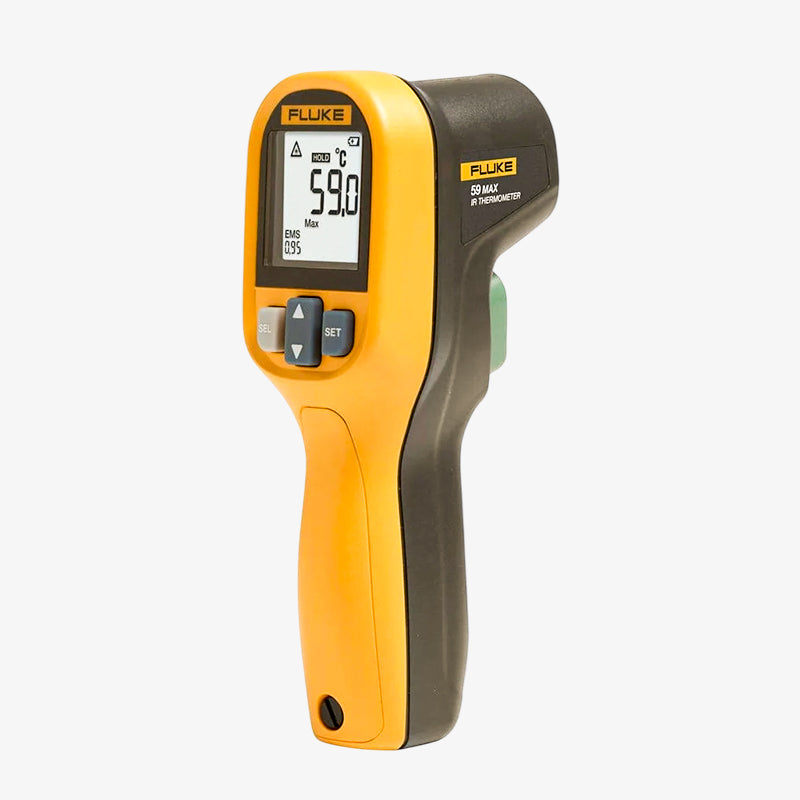

Fluke 59 MAX Infrared Thermometer is a compact, rugged, and professional non-contact infrared thermometer designed for fast and accurate surface temperature measurements. Equipped with precise laser targeting, a 10:1 distance-to-spot ratio, adjustable emissivity, and a backlit LCD display, it is ideal for electrical inspections, HVAC servicing, industrial maintenance, automotive diagnostics, and preventive maintenance. Built to withstand a 1-meter drop and featuring an IP40-rated enclosure, the Fluke 59 MAX delivers reliable performance in demanding work environments.
Fluke 59 MAX Infrared Thermometer Datasheet
| Parameter | Value |
|---|---|
| Product Type | Infrared Thermometer |
| Brand | Fluke |
| Model | 59 MAX |
| Temperature Measurement Range | -30°C to 350°C (-22°F to 662°F) |
| Accuracy | ±2.0°C or ±2.0% of Reading (Whichever is Greater) |
| Repeatability | ±1.0% of Reading or ±1.0°C |
| Distance-to-Spot Ratio | 10:1 |
| Laser Targeting | Yes (Class II) |
| Emissivity | Adjustable (0.10 to 1.00) |
| Response Time | <500ms (95% of Reading) |
| Spectral Response | 8µm to 14µm |
| Display Resolution | 0.1°C (0.2°F) |
| Display | Backlit LCD |
| Temperature Display | °C / °F Selectable |
| Display Modes | Current, MIN, MAX, AVG, DIF |
| High / Low Alarm | Yes |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Operating Altitude | 2000m |
| Storage Altitude | 12000m |
| Drop Test | 1m |
| Protection Rating | IP40 |
| Power Supply | 1 × AA Battery |
| Battery Life | Up to 12 Hours (Laser & Backlight On) |
| Dimensions | 156 × 80 × 50mm |
| Weight | 220g |
| Safety Standards | EN/IEC 61010-1, EN 61326-1, EN 61326-2, FDA & EN 60825-1 Class II |
| Applications | HVAC, Electrical Panels, Motors, Bearings, Industrial Equipment, Automotive Diagnostics, Preventive Maintenance |
