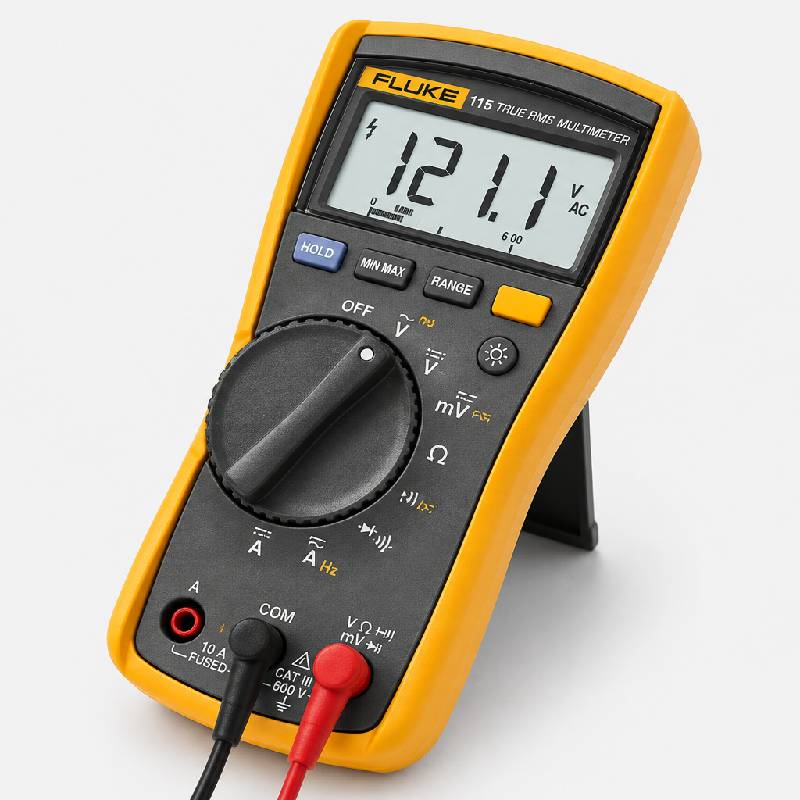

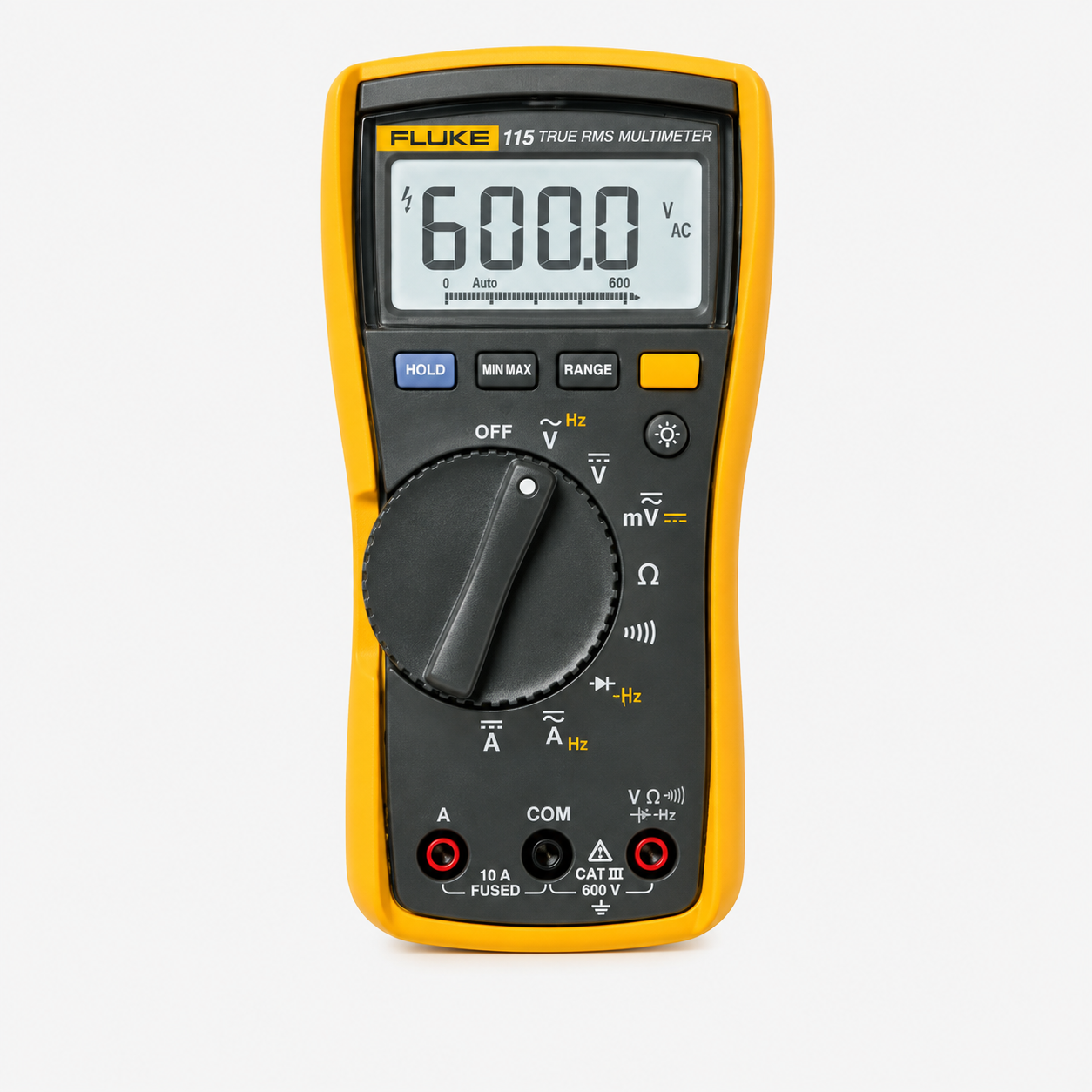

Fluke 115 True Rms Digital Multimeter is a professional True-RMS digital multimeter designed for field service technicians, electricians, industrial maintenance professionals, and electronics engineers. It delivers accurate measurements on both linear and non-linear loads while offering a compact, rugged design, large 6000-count display with analog bar graph, and CAT III 600V safety rating. The Fluke 115 is ideal for troubleshooting electrical systems, industrial equipment, HVAC systems, and electronic circuits.
Fluke 115 Digital Multimeter Datasheet
| Parameter | Value |
|---|---|
| Product Type | True-RMS Digital Multimeter |
| Brand | Fluke |
| Model | 115 |
| Display | 6000 Count LCD with 33-Segment Analog Bar Graph |
| Display Update Rate | 4 Readings/Second |
| Measurement Type | True-RMS |
| Safety Rating | CAT III 600V |
| DC Voltage Range | 600mV to 600V |
| AC Voltage Range | 6V to 600V |
| DC Current Range | 6A / 10A (20A Overload for 30 Seconds Max.) |
| AC Current Range | 6A / 10A True-RMS |
| Resistance Range | 600Ω to 40MΩ |
| Capacitance Range | 1nF to 9999µF |
| Frequency Range | 99.99Hz to 50kHz |
| Continuity Test | Yes (Audible Buzzer) |
| Diode Test | Yes |
| Min / Max / Average | Yes |
| Data Hold | Yes |
| Input Impedance | >10MΩ |
| Battery Type | 9V Alkaline (IEC 6LR61) |
| Battery Life | Approximately 400 Hours (Without Backlight) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Operating Humidity | Up to 90% RH |
| Operating Altitude | Up to 2000m |
| Protection Rating | IP42 |
| Dimensions | 167 × 84 × 46mm |
| Weight | Approximately 550g |
| Safety Standards | IEC 61010-1, IEC 61010-2-033, CAT III 600V, Pollution Degree 2 |
| Certifications | CE, CSA, RCM |
| Applications | Industrial Maintenance, Electrical Installation, HVAC, Electronics Repair, Field Service, Educational Laboratories |
3 Year Warranty Against Sealed Product
This item is covered with a standard warranty of 3 Year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Quartz Components customers against manufacturing defects. Replacement will be provided only in case of verified manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accidental damage, water or fire damage, use of chemicals, unauthorized repair, soldering, or has been altered in any way.
Warranty Against Sealed Product:
This product comes with a manufacturer seal so, warranty policy shall cover only those issues pertaining to manufacturing defects in the product. No return or replacement will be accepted if the manufacturer seal is broken or tampered with.
Fluke 115 True Rms Field Technicians Digital Multimeter
Fluke 15B MAX Digital Multimeter

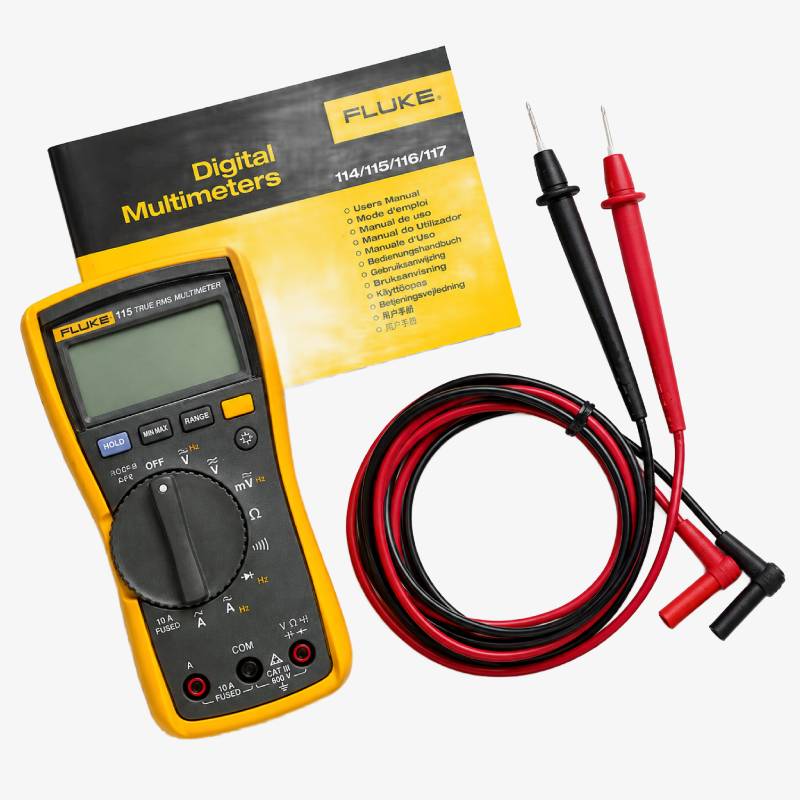

1 × Fluke 115 Field Technicians Digital Multimeter
1 × TL75 Test Lead Set
1 × 9V Alkaline Battery (Pre-installed)
1 × User Manual
