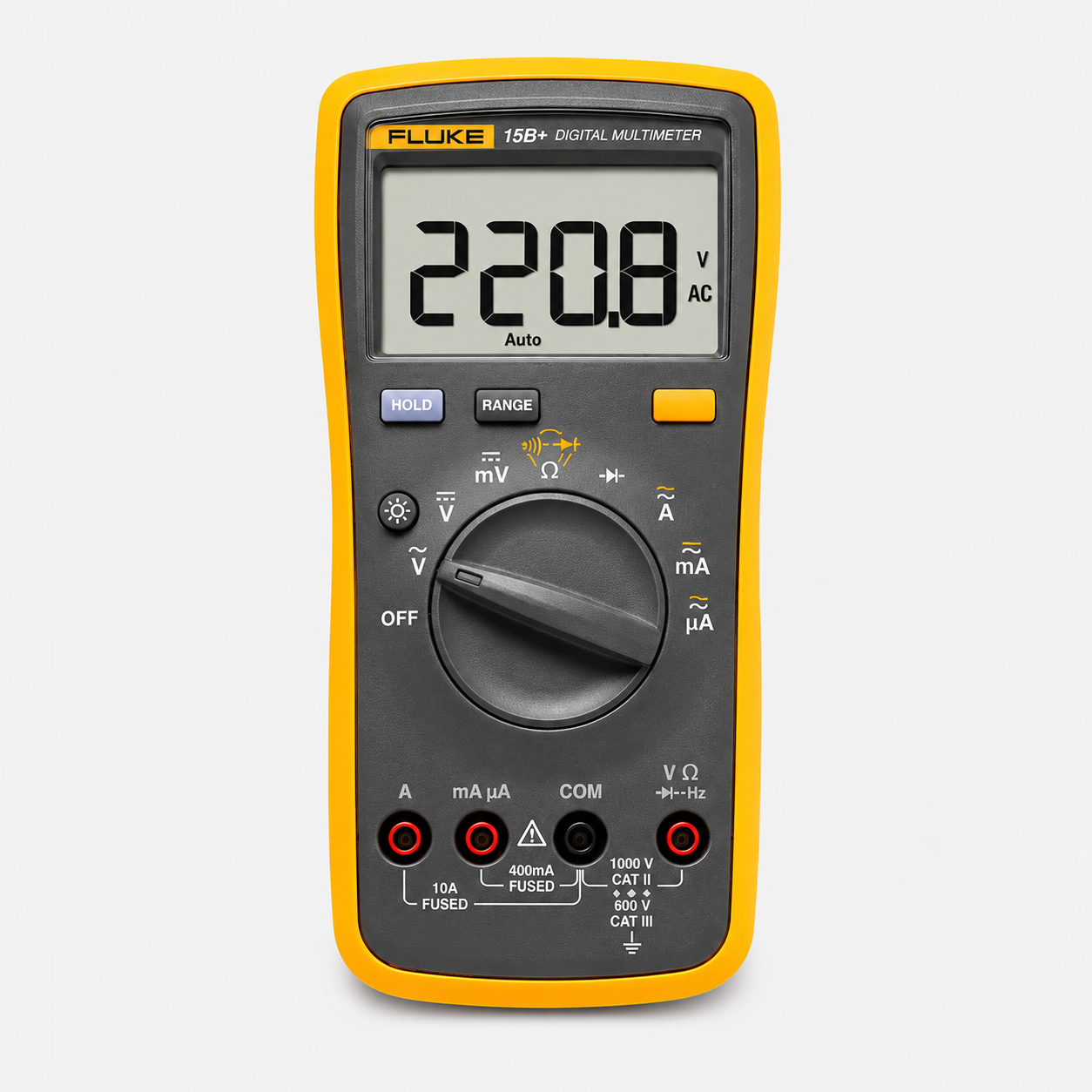

Fluke 15B+ Digital Multimeter with 1 Year Warranty
SKU:
TLS-QC6106
Availability:
12
In Stock
-
- Rs. 8,480.00
- Unit price
- per
Subtotal:
Rs. 8,480.00
Description
xFluke 15B+ Digital Multimeter is a compact, rugged, and reliable digital multimeter designed for electrical maintenance, industrial troubleshooting, HVAC servicing, and electronics applications. Featuring a large backlit 4000-count LCD display, CAT III 600V safety rating, and comprehensive measurement functions including AC/DC voltage, current, resistance, capacitance, continuity, and diode testing, the Fluke 15B+ delivers accurate and dependable measurements for professionals in the field.
Fluke 15B+ Digital Multimeter Datasheet
Features:
- Compact and ergonomic design for comfortable one-hand operation.
- Large 4000-count LCD with bright white backlight.
- CAT III 600V and CAT II 1000V safety rating.
- Measures AC/DC voltage, AC/DC current, resistance, and capacitance.
- Continuity buzzer and diode test functions.
- Data Hold function for convenient reading capture.
- High measurement accuracy for professional use.
- Rugged construction with IP40 protection.
- Up to 500 hours of battery life.
- Ideal for electricians, maintenance engineers, industrial technicians, and electronics professionals.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Digital Multimeter |
| Brand | Fluke |
| Model | 15B+ |
| Display | 4000 Count LCD with White Backlight |
| Display Update Rate | 3 Readings/Second |
| Safety Rating | CAT III 600V, CAT II 1000V |
| DC Voltage Range | 400mV to 1000V |
| AC Voltage Range | 4V to 1000V (40Hz–500Hz) |
| DC Current Range | 400µA to 10A |
| AC Current Range | 400µA to 10A |
| Resistance Range | 400Ω to 40MΩ |
| Capacitance Range | 40nF to 1000µF |
| Continuity Test | Yes (Audible Buzzer) |
| Diode Test | Yes |
| Data Hold | Yes |
| Input Impedance | >10MΩ |
| Battery Type | 2 × AA Batteries |
| Battery Life | Minimum 500 Hours |
| Overload Protection | Yes |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -30°C to +60°C |
| Relative Humidity | Up to 90% RH |
| Operating Altitude | Up to 2000m |
| Protection Rating | IP40 |
| Dimensions | 183 × 91 × 49.5mm |
| Weight | 455g |
| Safety Standards | IEC 61010-1, IEC 61010-2-030, Pollution Degree 2 |
| Applications | Industrial Maintenance, Electrical Testing, HVAC, Electronics Repair, Field Service, Educational Labs |
Warranty:
1 Year Warranty Against Sealed Product
This item is covered with a standard warranty of 1 Year from the time of delivery against manufacturing defects only. Repair or Replacement will be provided only in case of verified manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accidental damage, water or fire damage, use of chemicals, unauthorized repair, soldering, or has been altered in any way.
Warranty Against Sealed Product:
This product comes with a manufacturer seal so, warranty policy shall cover only those issues pertaining to manufacturing defects in the product. No return or replacement will be accepted if the manufacturer seal is broken or tampered with.
Also Check These Out:
Fluke 115 True Rms Field Technicians Digital Multimeter
Fluke 15B MAX Digital Multimeter
Package Includes:
1 × Fluke 15B+ Digital Multimeter
1 × Test Lead Set
2 × AA Batteries
1 × User Manual
