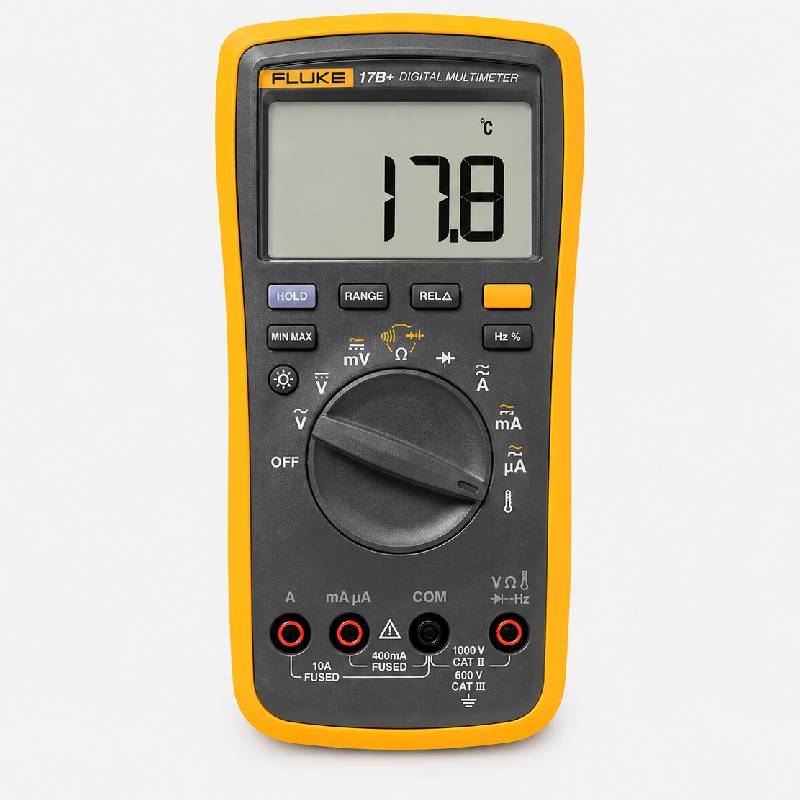

Fluke 17B+ Digital Multimeter with Temperature Measurement - 1 Year Warranty
SKU:
TLS-QC6107
Availability:
12
In Stock
-
- Rs. 10,425.00
- Unit price
- per
Subtotal:
Rs. 10,425.00
Description
xFluke 17B+ Digital Multimeter is a professional-grade digital multimeter designed for electrical maintenance, industrial troubleshooting, HVAC servicing, and electronics testing. It features a large 4000-count backlit LCD display, CAT III 600V safety rating, temperature and frequency measurement, and high measurement accuracy. With its rugged construction and dependable performance, the Fluke 17B+ is an ideal choice for electricians, field service engineers, maintenance technicians, and industrial professionals.
Fluke 17B+ Digital Multimeter Warranty Datasheet
Features:
- Compact and rugged design for professional field use.
- Large 4000-count LCD with bright white backlight.
- CAT III 600V and CAT II 1000V safety rating.
- Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature.
- Duty cycle measurement for signal analysis.
- Continuity buzzer and diode test functions.
- Data Hold function for convenient measurement recording.
- Over-voltage indicator enhances user safety.
- Long battery life with automatic power management.
- Ideal for industrial maintenance, HVAC, electrical servicing, and electronics troubleshooting.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Digital Multimeter |
| Brand | Fluke |
| Model | 17B+ |
| Display | 4000 Count LCD with White Backlight |
| Display Update Rate | 3 Readings/Second |
| Safety Rating | CAT III 600V, CAT II 1000V |
| DC Voltage Range | 400mV to 1000V |
| AC Voltage Range | 4V to 1000V (40Hz–500Hz) |
| DC Current Range | 400µA to 10A |
| AC Current Range | 400µA to 10A |
| Resistance Range | 400Ω to 40MΩ |
| Capacitance Range | 40nF to 1000µF |
| Frequency Range | 50Hz to 100kHz |
| Duty Cycle | 1% – 99% |
| Temperature Measurement | -55°C to +400°C |
| Continuity Test | Yes (Audible Buzzer) |
| Diode Test | Yes |
| Data Hold | Yes |
| Over-Voltage Indicator | Yes |
| Input Impedance | >10MΩ |
| Battery Type | 2 × AA Batteries |
| Battery Life | Minimum 500 Hours |
| Overload Protection | Yes |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -30°C to +60°C |
| Relative Humidity | Up to 90% RH |
| Operating Altitude | Up to 2000m |
| Protection Rating | IP40 |
| Dimensions | 183 × 91 × 49.5mm |
| Weight | 455g |
| Safety Standards | IEC 61010-1, IEC 61010-2-030, CAT III 600V, CAT II 1000V, Pollution Degree 2 |
| Applications | Industrial Maintenance, Electrical Testing, HVAC Systems, Electronics Repair, Field Service, Educational Laboratories |
Warranty:
1 Year Warranty Against Sealed Product
This item is covered with a standard warranty of 1 Year from the time of delivery against manufacturing defects only. Repair or Replacement will be provided only in case of verified manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accidental damage, water or fire damage, use of chemicals, unauthorized repair, soldering, or has been altered in any way.
Warranty Against Sealed Product:
This product comes with a manufacturer seal so, warranty policy shall cover only those issues pertaining to manufacturing defects in the product. No return or replacement will be accepted if the manufacturer seal is broken or tampered with.
Also Check These Out:
Fluke 115 True Rms Field Technicians Digital Multimeter
Fluke 15B MAX Digital Multimeter
Package Includes:
1 × Fluke 17B+ Digital Multimeter
1 × Test Lead Set
1 × Temperature Probe
2 × AA Batteries
1 × User Manual
