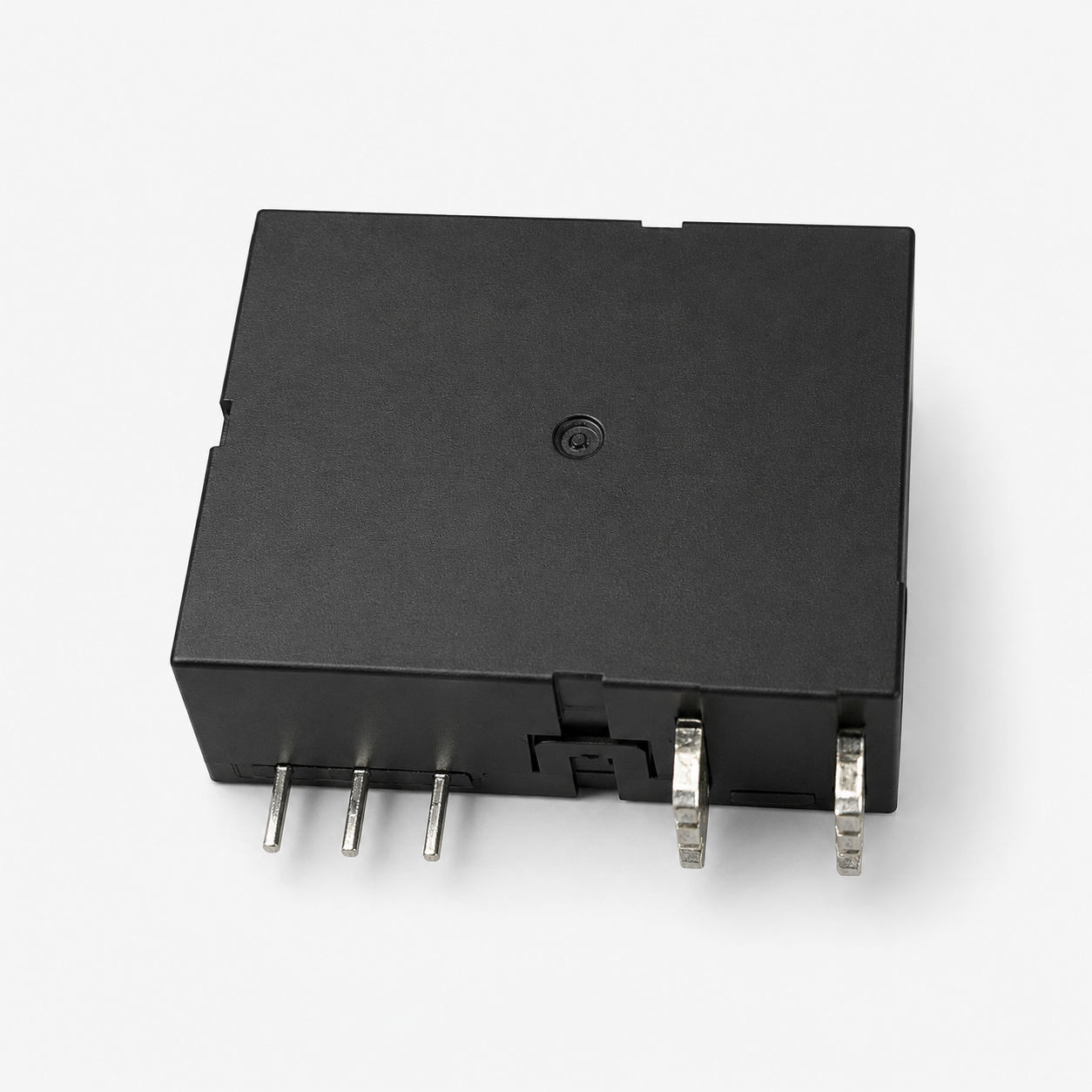

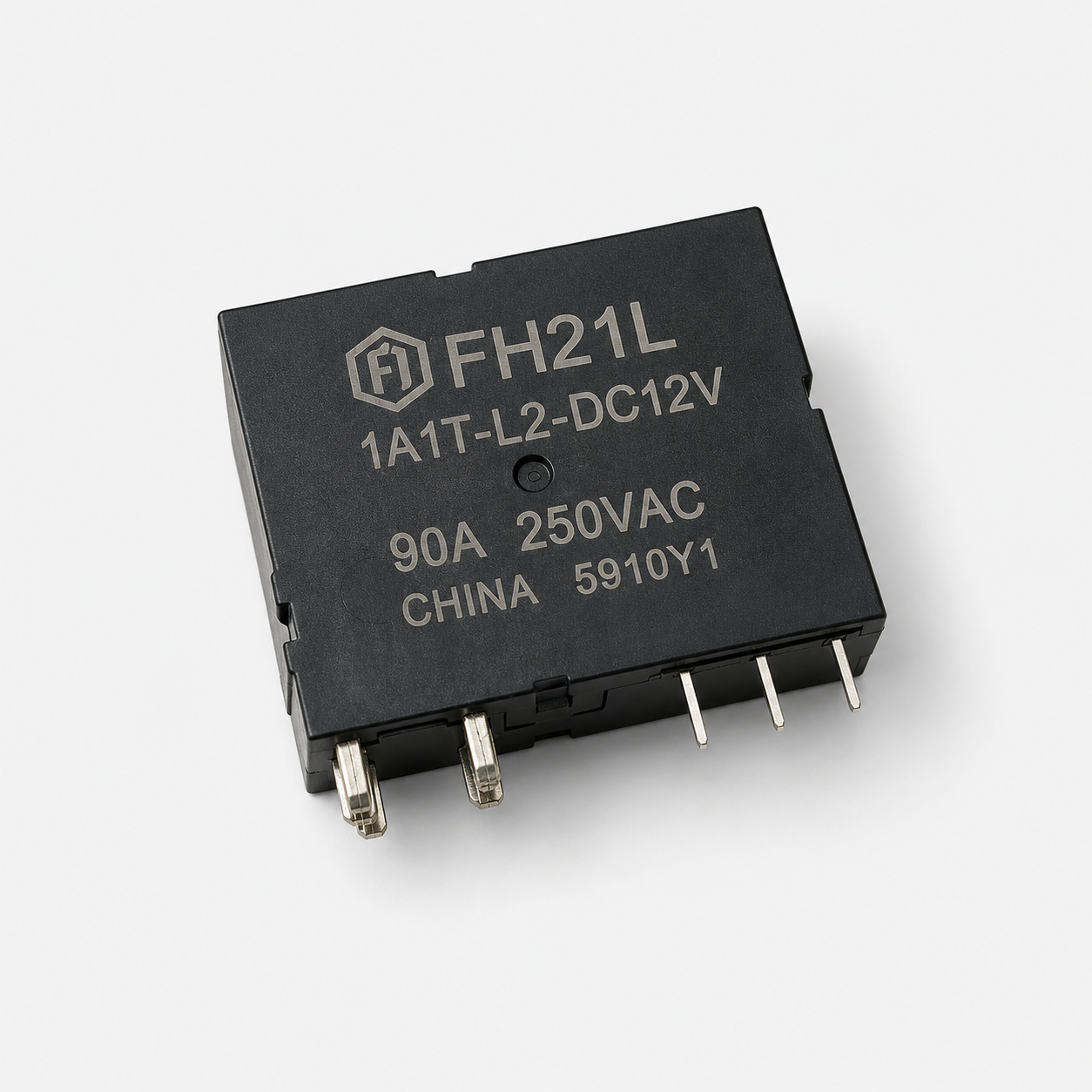

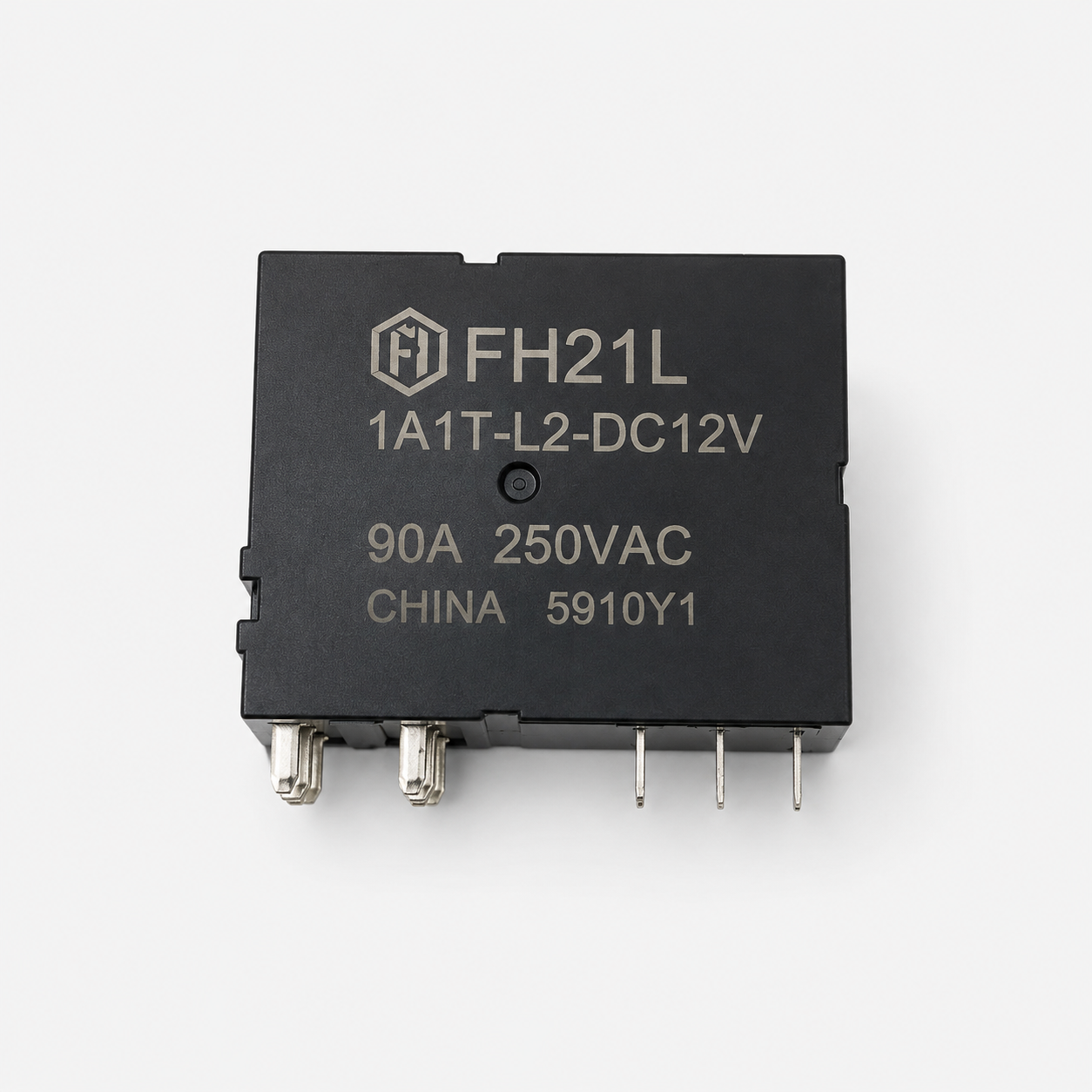

FH21L 12VDC 90A High Current Latching Relay
SKU:
MOD-QC5999
Availability:
2
In Stock
-
- Rs. 272.00
- Unit price
- per
Subtotal:
Rs. 272.00
Description
xFH21L 12VDC 90A High Current Latching Relay is a high-performance electromagnetic latching relay designed for switching high-current AC loads while consuming power only during switching. With a 90A contact rating, a 12V DC coil, and a compact PCB mount design, it is ideal for smart energy meters, EV charging stations, battery management systems (BMS), photovoltaic systems, industrial automation, power distribution equipment, and other high-power switching applications.
Features:
- 90A High Current Switching Capacity
- 12V DC Single Coil Latching Design
- Power Consumed Only During Switching
- 1 Form A (SPST-NO) and 1 Form B (SPST-NC) Contact Options
- Silver Tin Oxide (AgSnO₂) Contacts
- High 4KV Dielectric Strength Between Coil and Contacts
- Low Initial Contact Resistance
- Compact PCB Mount Construction
- High Resistance to Power Frequency Interference
- IEC62055-31:2005 UC2 Compliant
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | High Current Latching Relay |
| Brand | Fanhar |
| Model | FH21L |
| Contact Arrangement | 1 Form A (SPST-NO) / 1 Form B (SPST-NC) |
| Coil Voltage | 12V DC |
| Coil Type | Single Coil Latching |
| Contact Material | AgSnO₂ |
| Rated Load | 90A @ 250VAC (Resistive Load) |
| Maximum Switching Current | 90A |
| Maximum Switching Voltage | 277VAC |
| Maximum Switching Capacity | 22500VA |
| Initial Contact Resistance | ≤1mΩ (6VDC, 1A) |
| Coil Resistance | 96Ω ±10% |
| Rated Coil Current | 125mA |
| Rated Coil Power | Approx. 1.5W |
| Set Voltage | ≤9V DC |
| Reset Voltage | ≤9V DC |
| Maximum Allowable Coil Voltage | 18V DC |
| Insulation Resistance | ≥1000MΩ @ 500VDC |
| Dielectric Strength (Open Contacts) | 2000VAC for 1 Minute |
| Dielectric Strength (Coil to Contacts) | 4000VAC for 1 Minute |
| Operate Time | ≤20ms |
| Release Time | ≤20ms |
| Mechanical Life | 100,000 Operations |
| Electrical Life | 10,000 Operations @ 90A, 250VAC Resistive Load |
| Electrical Life (UC2 Test) | 10,000 Operations @ 60A, 253VAC |
| Shock Resistance | Functional: 98m/s², Destructive: 980m/s² |
| Vibration Resistance | 10Hz–55Hz, 1.5mm Double Amplitude |
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 85% RH |
| Mounting Type | PCB Through Hole |
| Construction | Flux Proof |
| Dimensions | 38 × 30 × 16.5mm |
| Weight | Approx. 39g |
| Standard | IEC62055-31:2005 UC2 |
| Compliance | RoHS |
| Applications | Smart Energy Meters, EV Chargers, Battery Management Systems (BMS), Power Distribution Equipment, Compound Switches, New Energy Systems, Industrial Automation, Solar Power Systems |
