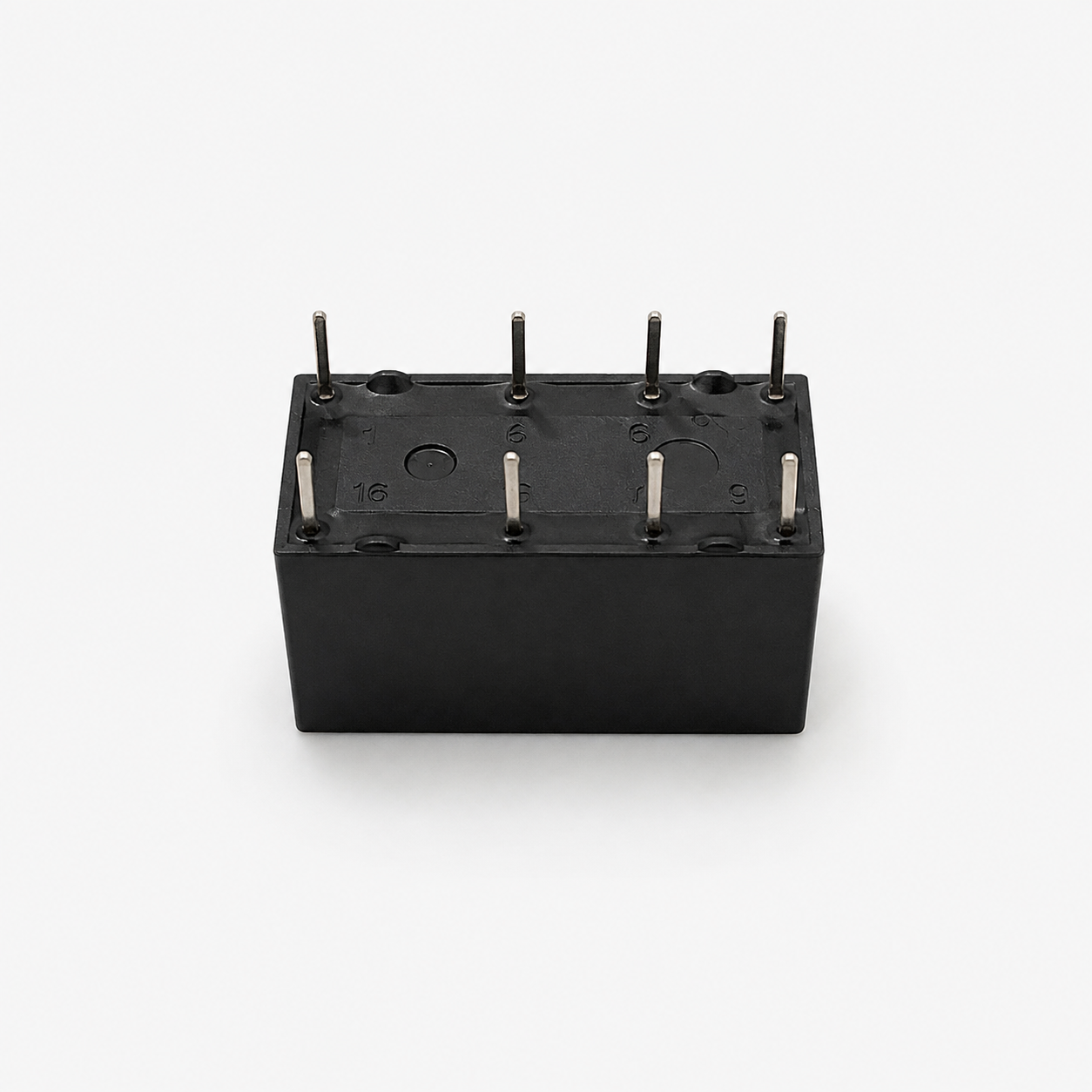

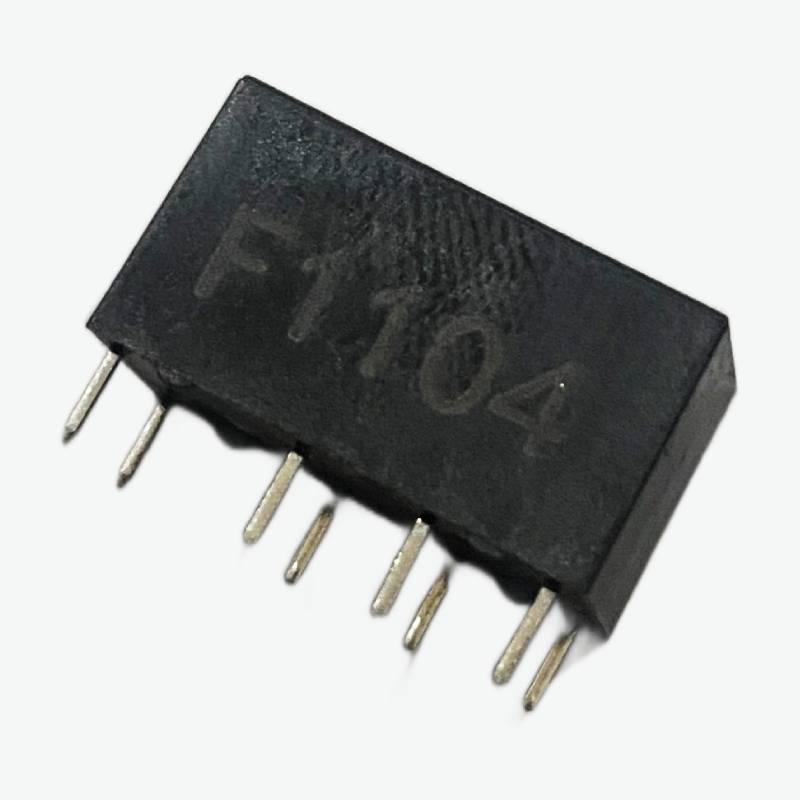

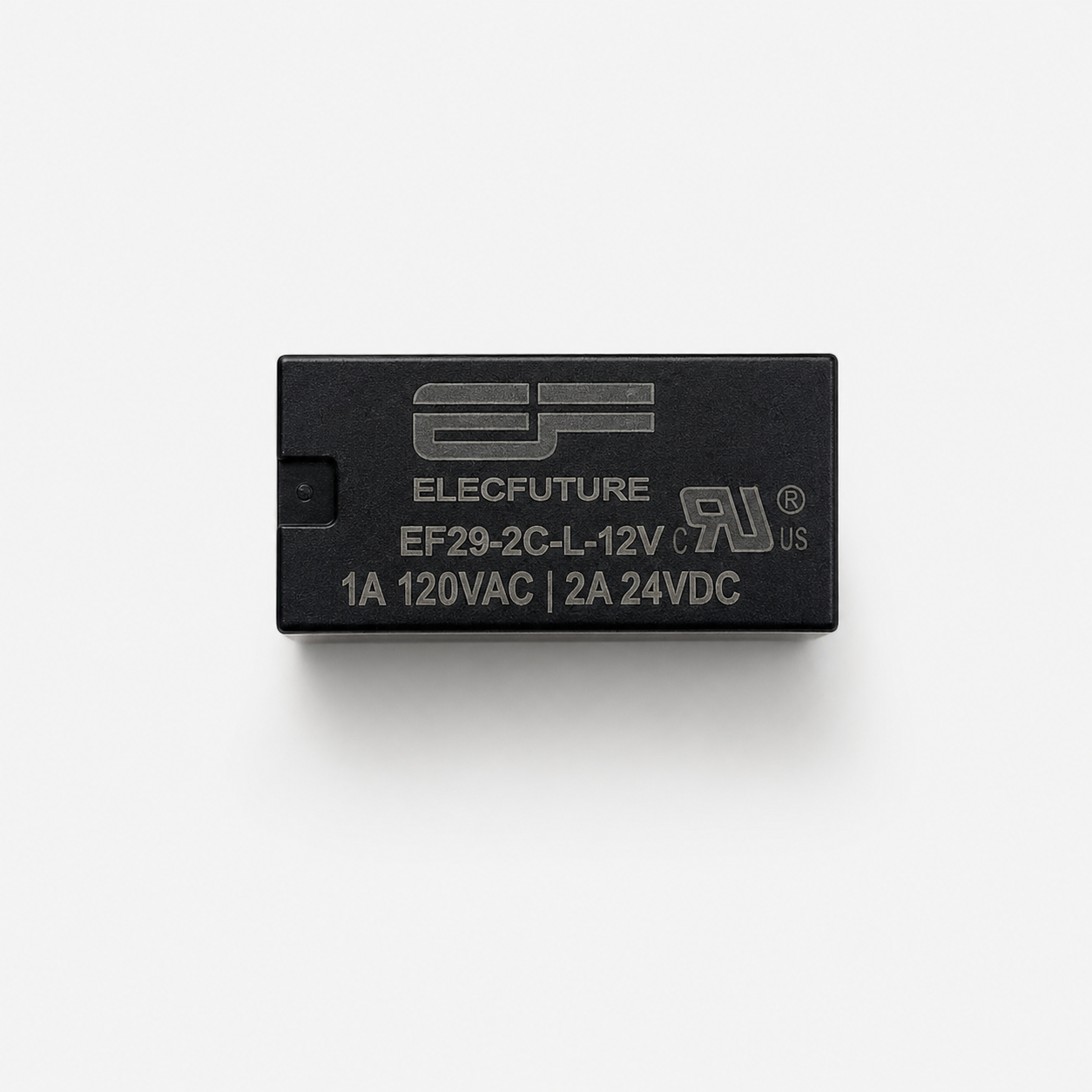

F1104 EF29-2C-L 12V Miniature Power Latching Relay
SKU:
MOD-QC6065
Availability:
600
In Stock
-
- Rs. 44.00
- Unit price
- per
Subtotal:
Rs. 44.00
Description
xThis F1104 EF29-2C-L 12V Miniature Power Latching Telecom Relay is a compact dual-coil latching power relay designed for low-power switching applications. It provides reliable signal and power switching while maintaining its contact position without continuous coil power, making it ideal for battery-powered devices, industrial automation, communication equipment, smart meters, security systems, and control circuits. Its compact design, low power consumption, and long mechanical life ensure dependable performance in space-constrained applications.
Features:
- Compact miniature latching relay with dual-coil design.
- 12V DC coil voltage for low-power operation.
- 2A switching current capacity.
- DPDT (2 Form C) contact configuration.
- Latching mechanism reduces power consumption.
- Gold-plated contacts for reliable switching.
- High dielectric strength and insulation resistance.
- Fast switching with low contact resistance.
- Long mechanical and electrical service life.
- Suitable for automation, communication, instrumentation, and control systems.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Miniature Power Latching Relay |
| Model | F1104 EF29-2C-L |
| Relay Type | Dual Coil Latching Relay |
| Coil Voltage | 12V DC |
| Contact Configuration | DPDT (2 Form C) |
| Contact Material | Gold-Plated Silver Alloy |
| Rated Switching Current | 1A |
| Rated Switching Voltage | 30V DC / 125V AC |
| Maximum Carry Current | 2A |
| Maximum Switching Power | 30W / 62.5VA |
| Contact Resistance | ≤50mΩ (Initial) |
| Coil Power Consumption | Approximately 200mW |
| Operate Time | ≤6ms |
| Reset Time | ≤6ms |
| Insulation Resistance | ≥1000MΩ @ 500V DC |
| Dielectric Strength | 1000V AC (Contact to Contact) |
| Surge Voltage | 1500V |
| Mechanical Life | Up to 10 Million Operations |
| Electrical Life | Up to 500,000 Operations |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Through Hole (PCB Mount) |
| Weight | Approximately 2g |
| Applications | Smart Meters, Industrial Control, Security Systems, Communication Equipment, Medical Devices, Battery-Powered Electronics, Instrumentation and Automation |
Also Check These Out:
12V 8 Channel Relay Module with Optocoupler
4-Channel 12V Relay Module with Optocoupler
PCB For 1 Channel Relay Module with Optocoupler Input
Package Includes:
1 × F1104 EF29-2C-L 12V Miniature Power Latching Relay
