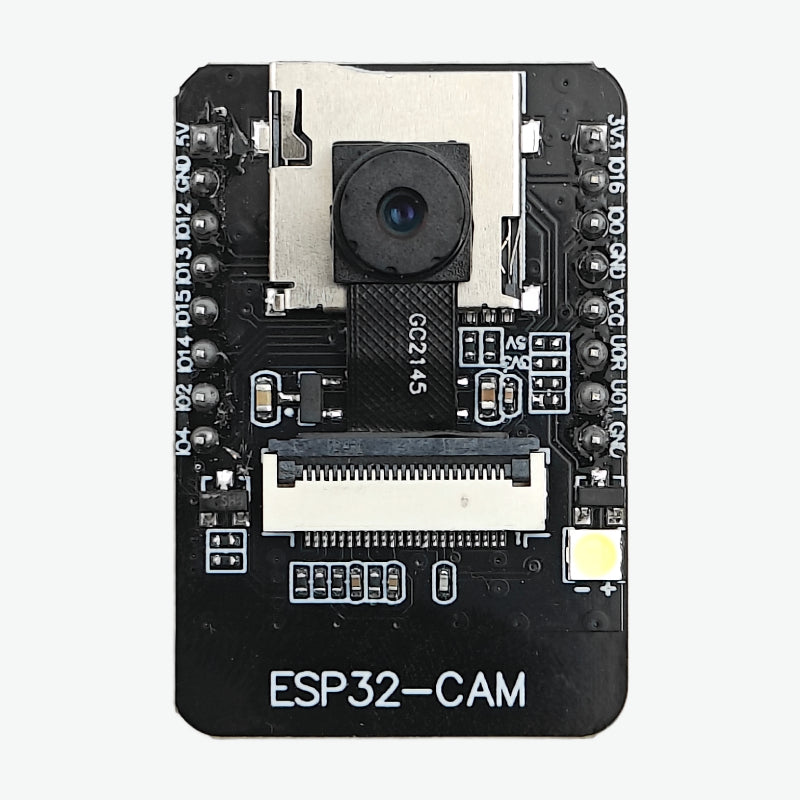

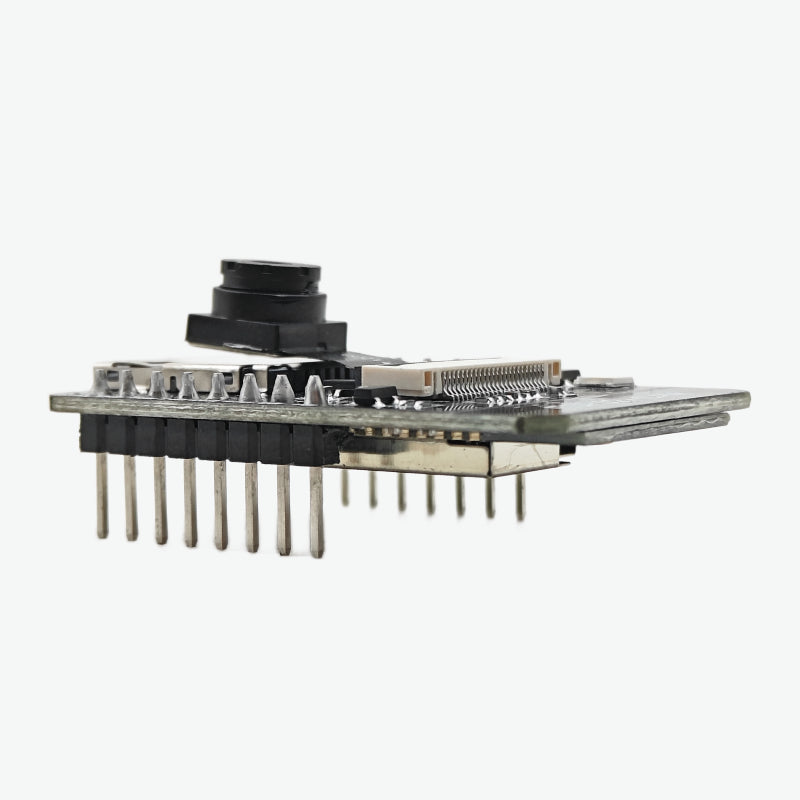

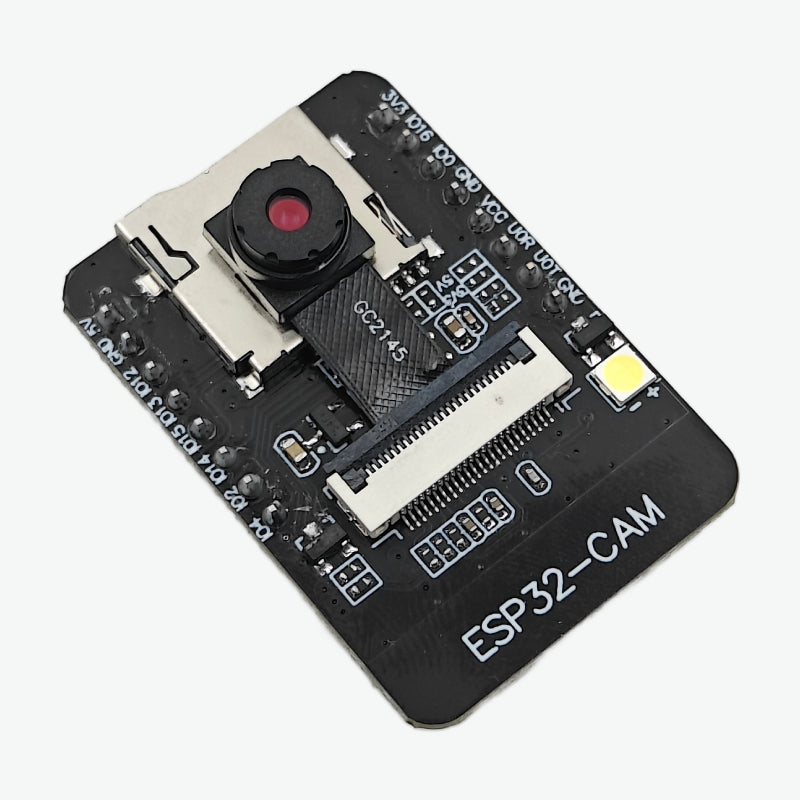

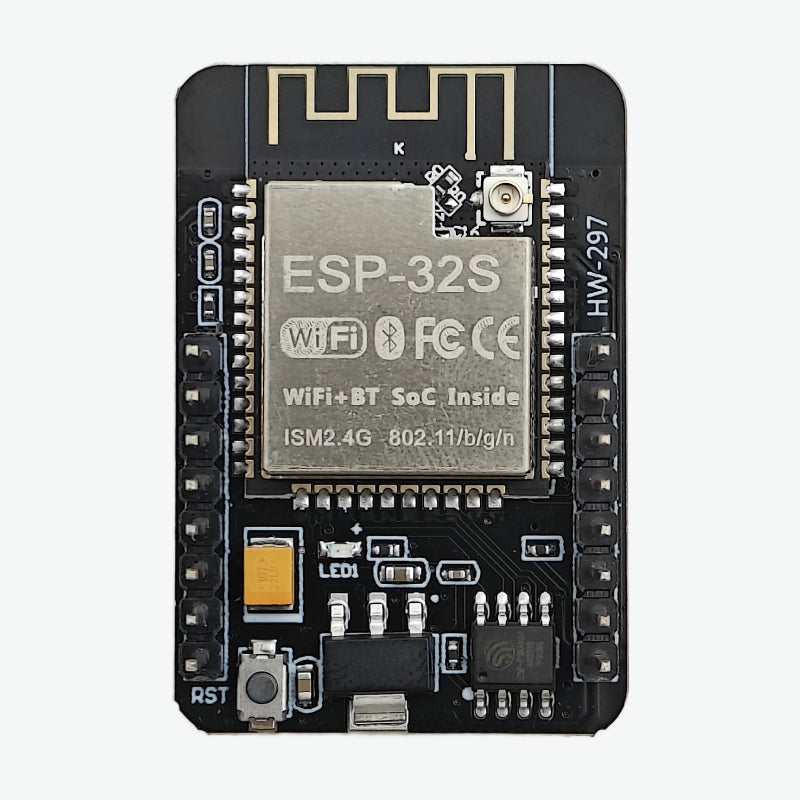

ESP32-S CAM Development Board with GC2145 2MP Camera Sensor
SKU:
DVB-QC5983
Availability:
450
In Stock
-
- Rs. 675.00
- Unit price
- per
Subtotal:
Rs. 675.00
Description
xESP32-S CAM Development Board with GC2145 2MP Camera Sensor is a compact Wi-Fi and Bluetooth-enabled development board designed for AI vision, IoT, image processing, and embedded camera applications. Powered by the ESP32-S SoC, it features the GC2145 2MP image sensor capable of capturing images up to 1600 × 1200 resolution. With integrated Wi-Fi, Bluetooth, onboard microSD card support, and low-power operation, it is ideal for wireless surveillance, smart doorbells, face recognition, QR code scanning, robotics, and machine vision projects.
Features:
- ESP32-S Dual-Core 32-bit Xtensa Processor
- GC2145 2MP CMOS Camera Sensor
- Maximum Image Resolution up to 1600 × 1200 (UXGA)
- Built-in 2.4GHz Wi-Fi and Bluetooth Connectivity
- Supports JPEG, RGB565, YUV and RAW Image Formats
- Onboard microSD Card Slot for Image Storage
- Low Power Sleep Mode Support
- Ideal for AI Vision and IoT Applications
- Compact Development Board Design
- Compatible with Arduino IDE and ESP-IDF
Pinout of ESP32-S CAM Development Board with GC2145 2MP Camera Sensor:
Specifications:
| Parameter | Value |
|---|---|
| Product Type | ESP32 Camera Development Board |
| Microcontroller | ESP32 Dual-Core Xtensa LX6 |
| Camera Sensor | GC2145 CMOS Image Sensor |
| Camera Resolution | 2MP (1600 × 1200) |
| Wireless Connectivity | 2.4GHz Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BLE |
| Image Output Formats | JPEG, RGB565, YUV422, RAW Bayer |
| Storage | microSD Card Supported |
| Programming Support | Arduino IDE, ESP-IDF |
| Operating Voltage | 5V DC |
| Applications | AI Vision, Smart Surveillance, Face Recognition, QR Code Scanner, Robotics, IoT, Wireless Image Capture |
Also Check These Out:
ESP32-CAM Development Board with OV2640 Camera Module
ESP32 Wi-Fi Bluetooth Development Board
ESP32-S3 Camera Development Board
Package Includes:
1 x ESP32-S CAM Development Board with GC2145 2MP Camera Sensor
