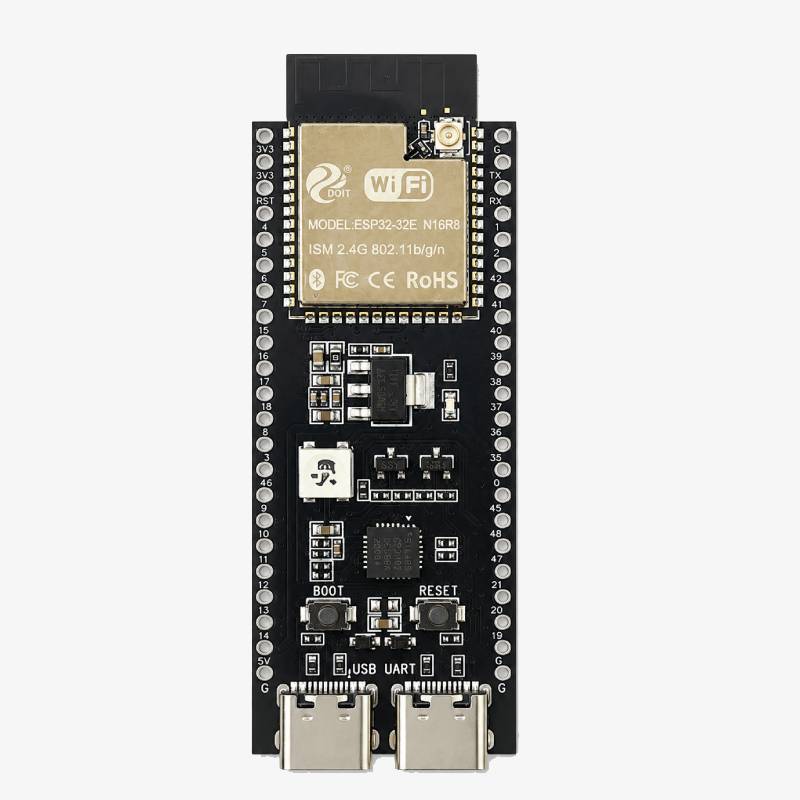

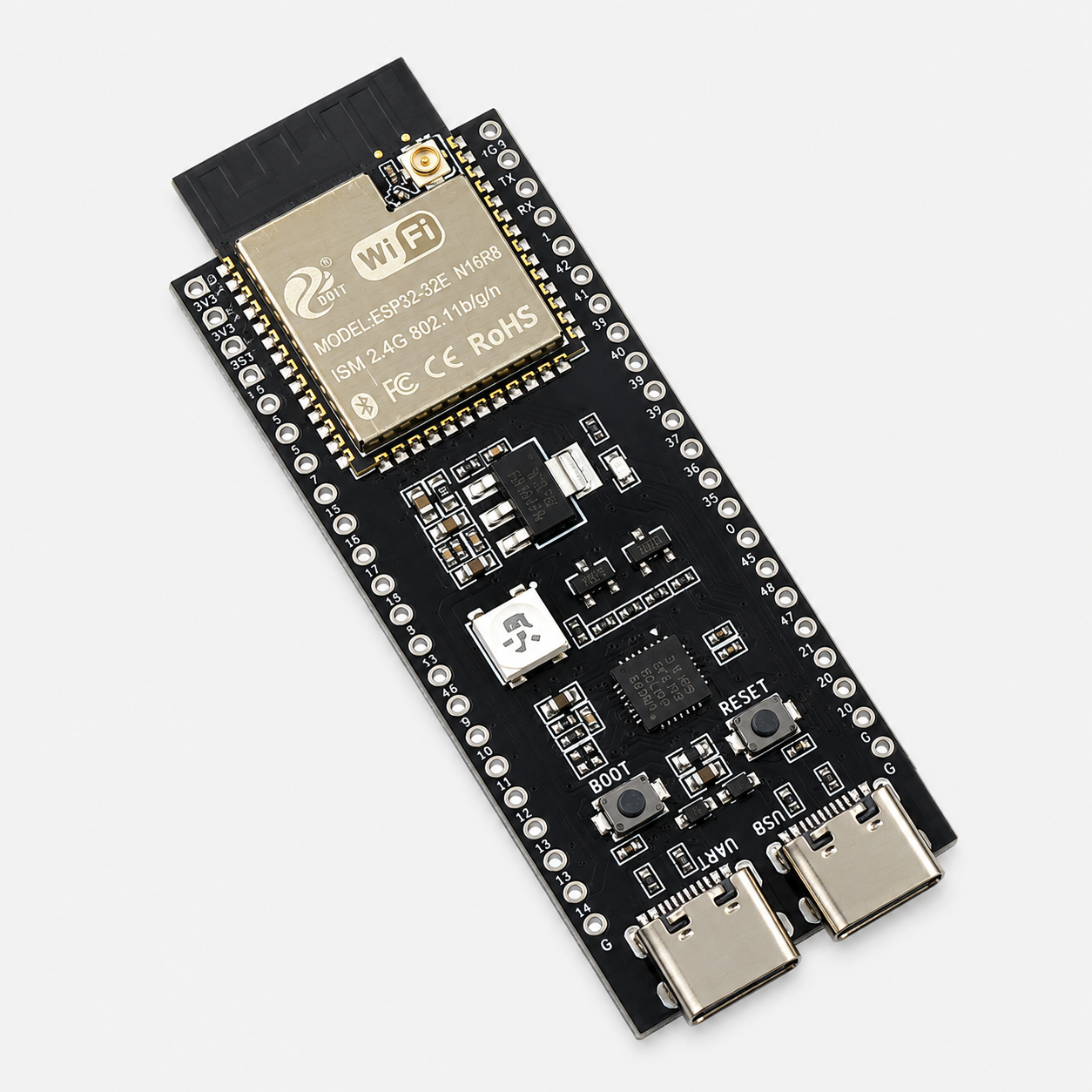

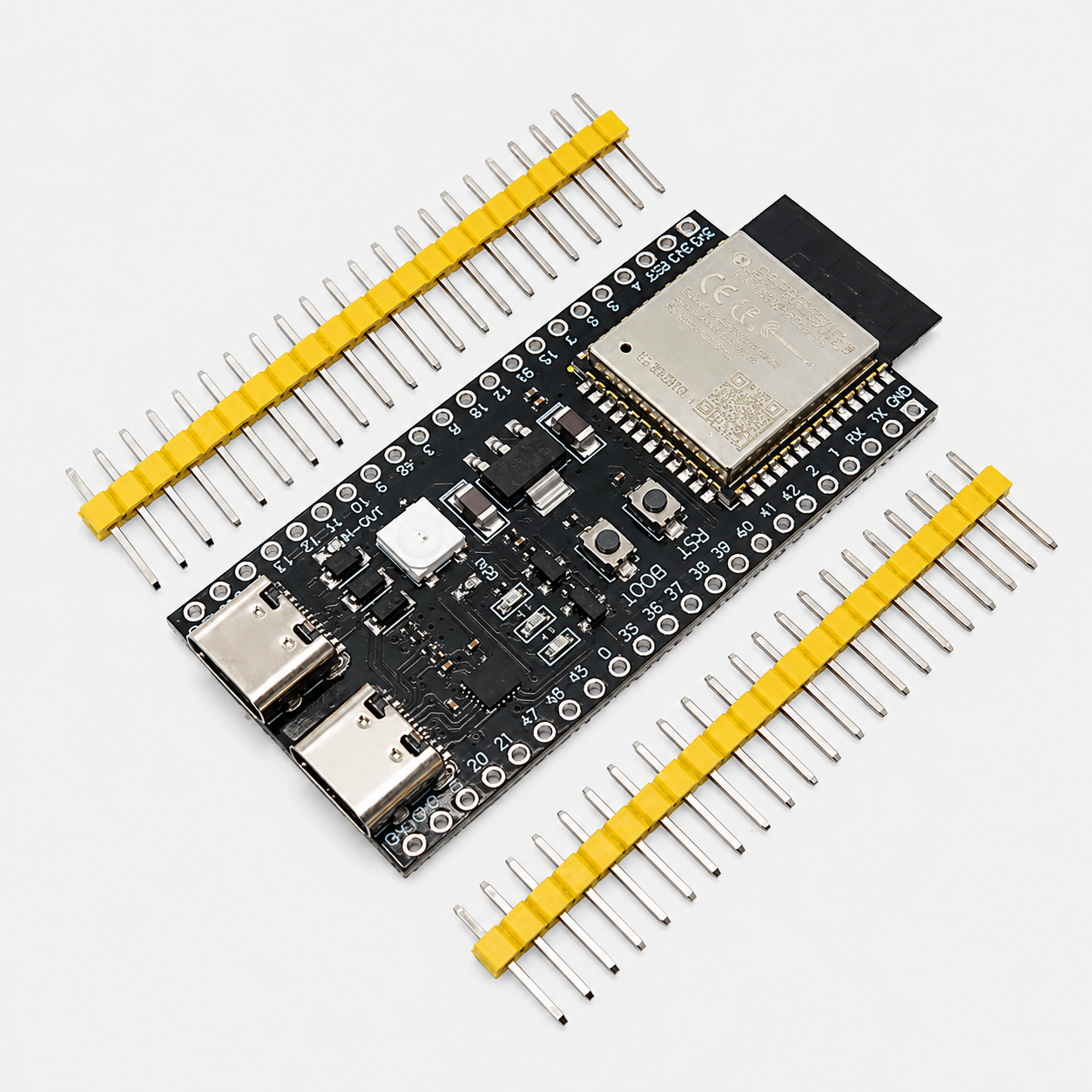

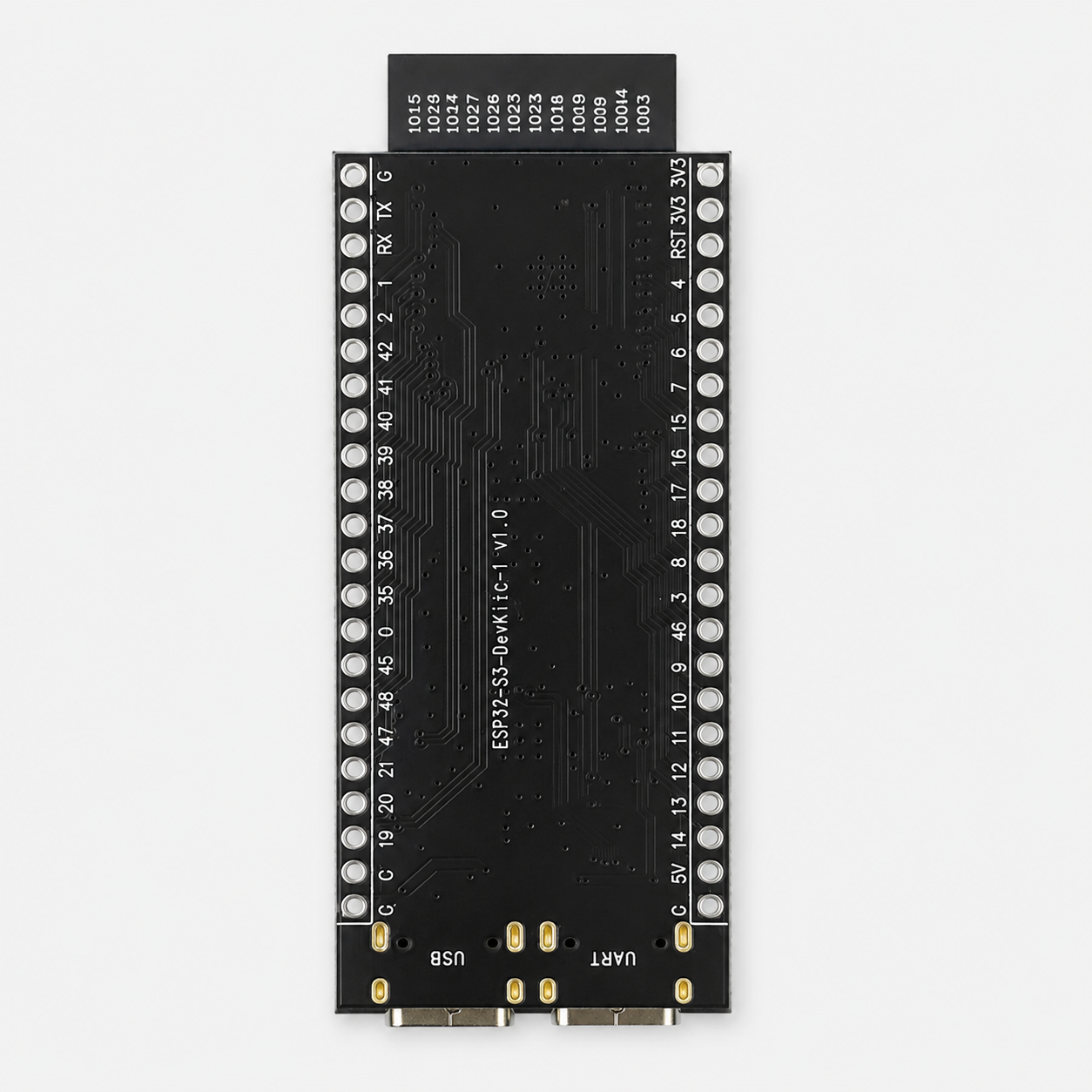

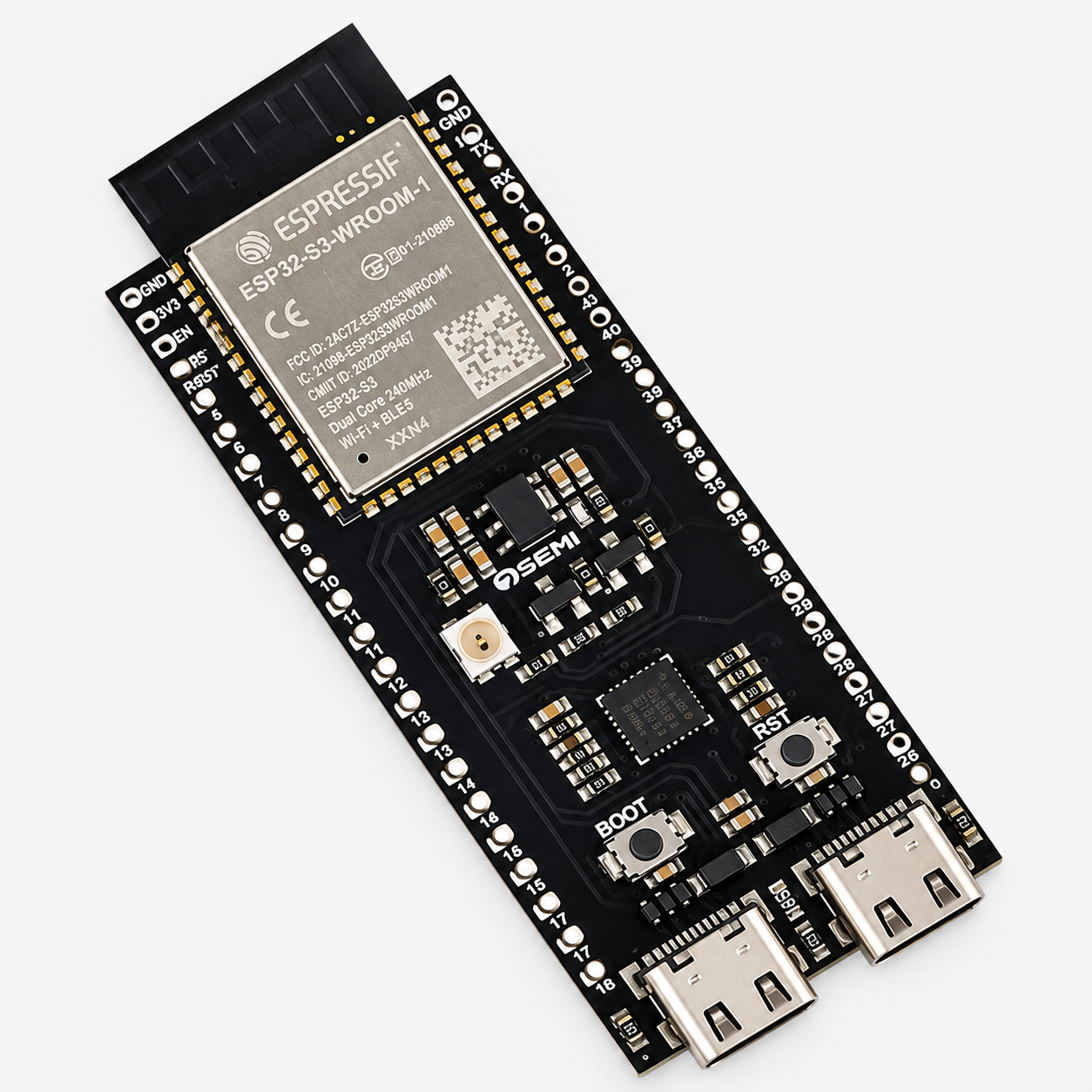

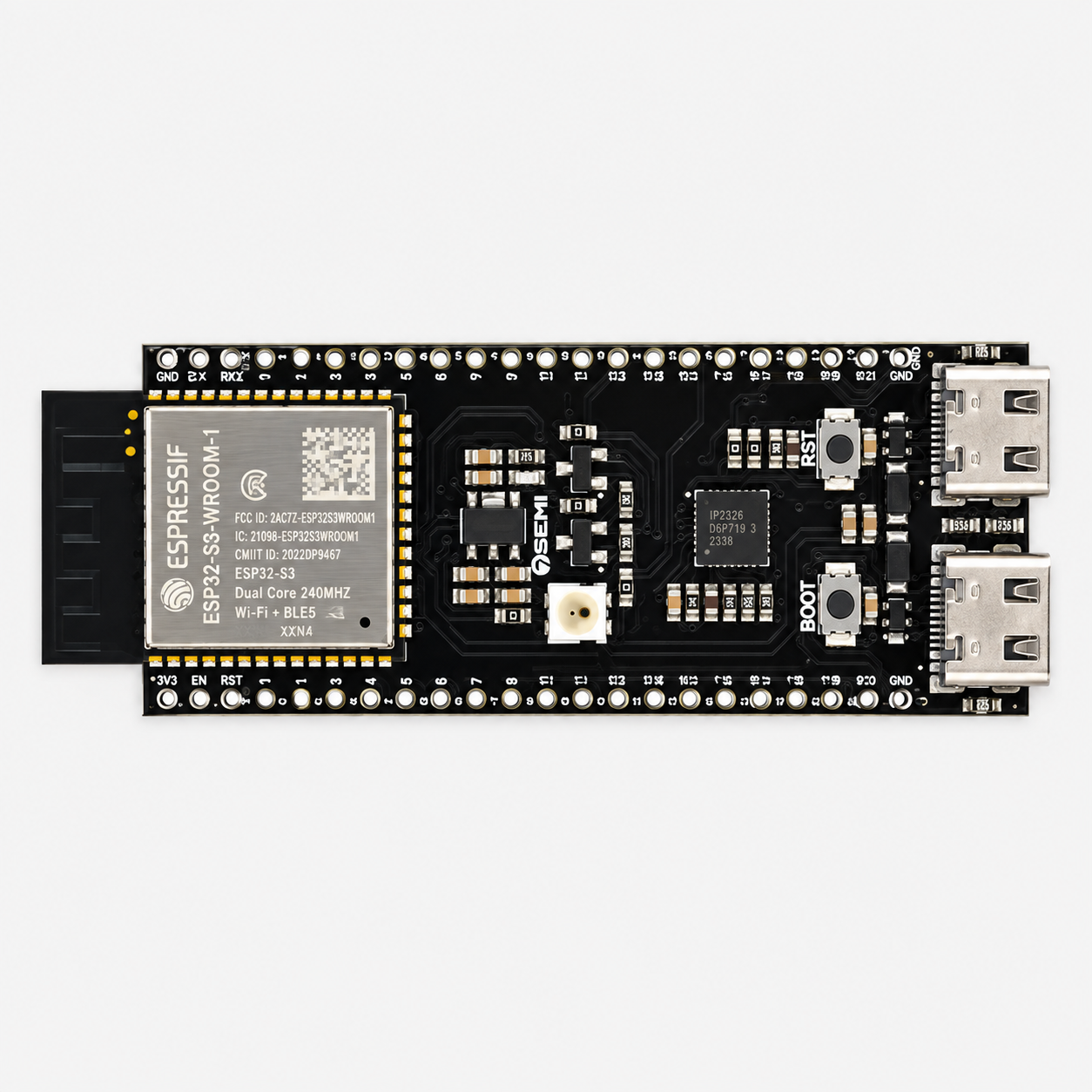

ESP32-S3 N16R8 Dual Type-C USB Development Board WiFi + Bluetooth Module is a powerful development board based on the ESP32-S3-WROOM-1-N16R8 module, featuring a dual-core Xtensa® LX7 processor running up to 240MHz, 16MB Flash, 8MB PSRAM, dual USB Type-C ports, onboard Wi-Fi, Bluetooth 5 LE, and extensive GPIO support. Designed for AIoT, embedded systems, robotics, IoT, USB applications, and edge AI projects, it offers excellent processing performance, rich peripherals, and seamless wireless connectivity in a compact development platform.
ESP32-S3-WROOM-N16R8 Dual C-Type USB Development Board WiFi Datasheet
| Parameter | Value |
|---|---|
| Product Type | Wi-Fi + Bluetooth Development Board |
| Module | ESP32-S3-WROOM-1-N16R8 |
| Processor | Dual-Core Xtensa® LX7 32-Bit |
| CPU Frequency | Up to 240MHz |
| Flash Memory | 16MB |
| PSRAM | 8MB Octal SPI |
| SRAM | 512KB |
| ROM | 384KB |
| RTC SRAM | 16KB |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n + Bluetooth 5 LE |
| Wi-Fi Frequency | 2.412GHz ~ 2.484GHz |
| Wi-Fi Data Rate | Up to 150Mbps |
| Bluetooth | BLE 5.0, Bluetooth Mesh |
| USB Interface | Dual USB Type-C |
| USB Support | USB 2.0 OTG, USB Serial/JTAG |
| Operating Voltage | 3.0V ~ 3.6V |
| Crystal Frequency | 40MHz |
| GPIO | Up to 36 |
| ADC | 12-Bit SAR ADC |
| Touch GPIO | 14 Capacitive Touch Pins |
| UART | 3 |
| SPI | 4 |
| I²C | 2 |
| I²S | 2 |
| PWM | Supported |
| CAN Interface | TWAI® (ISO 11898-1 Compatible) |
| Camera Interface | Supported |
| LCD Interface | Supported |
| Operating Temperature | -40°C to +65°C |
| Programming Support | Arduino IDE, ESP-IDF, MicroPython |
| RoHS Compliance | Yes |
| Connector | Description |
|---|---|
| USB Connector | Dual USB Type-C |
| Wireless Antenna | On-board PCB Antenna |
Ai-Thinker NodeMCU-32S ESP32 Development Board - IPEX Version
Waveshare ESP32-C6-WROOM-1-N8 Microcontroller WiFi 6 Development
ESP32-C6-WROOM-1-N8 Microcontroller Development Board with Headers Pins
1 x ESP32-S3 N16R8 Dual Type-C USB Development Board WiFi + Bluetooth Module
