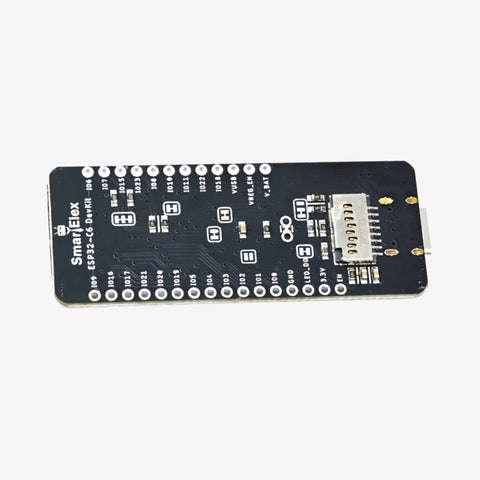

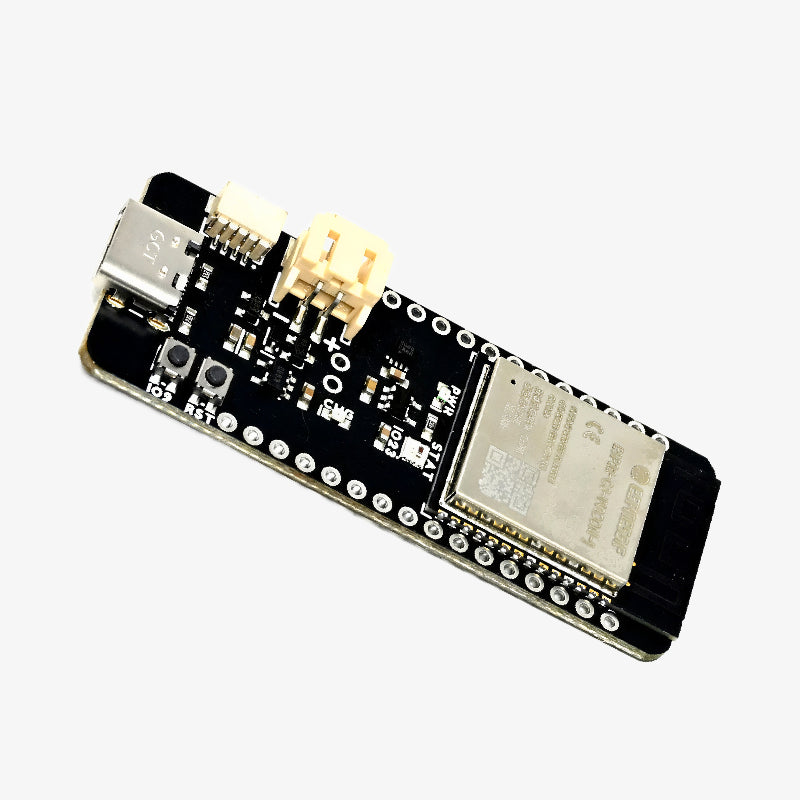

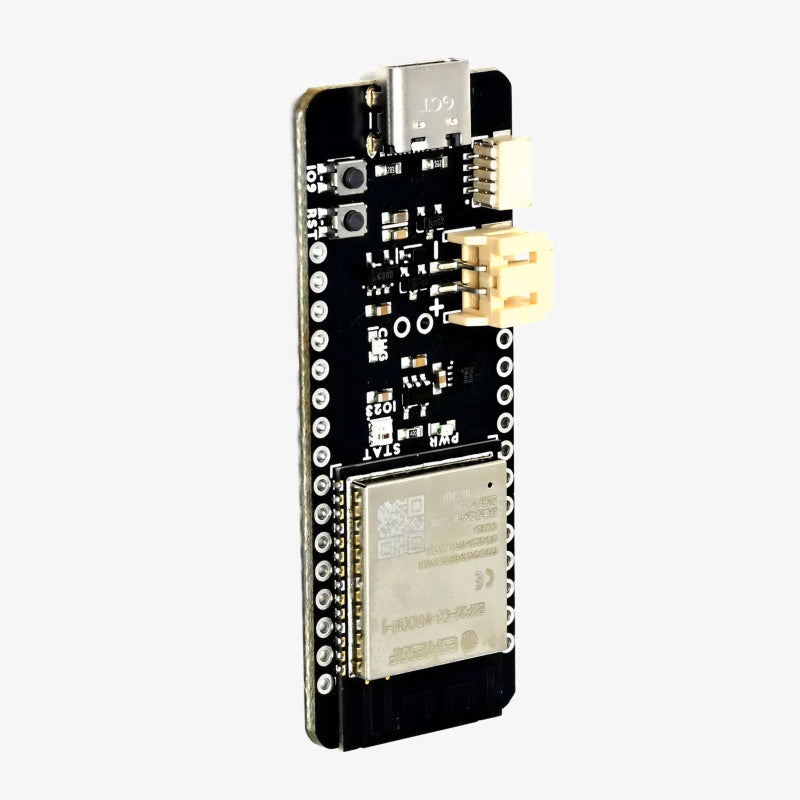

ESP32-C6-WROOM-1-N8 Microcontroller Development Board with Headers Pins

ESP32-C6-WROOM-1-N8 Microcontroller Development Board with Headers Pins This is a compact and high-performance development board based on the ESP32-C6-WROOM-1-N8 module, supporting Wi-Fi, IEEE 802.15.4, and Bluetooth LE connectivity. It operates on the 2.4GHz band and is designed for power-efficient IoT applications with a voltage range of 3.0V to 3.6V. Featuring rich peripheral interfaces and up to 23 GPIOs, this board is ideal for smart home systems, industrial automation, healthcare devices, and consumer electronics projects.

Features:

1. Supports Wi-Fi, IEEE 802.15.4, and Bluetooth LE Connectivity
2. Operates on 2.4GHz Band (2412 ~ 2484 MHz)
3. 1T1R Wireless Configuration
4. Built-in 4MB SPI Flash Memory
5. Supports Up to 23 GPIO Pins
6. Wide Operating Voltage Range (3.0V to 3.6V)
7. Rich Interfaces: SPI, UART, I2C, I2S, PWM, USB Serial, JTAG, SDIO
8. Supports Bluetooth 5 and Mesh Networking
9. High Data Rate up to 150 Mbps
10. Compact and Power-Efficient Design
11. Wide Temperature Range for Industrial Use

Specifications:

• Item Type: Development Board
• Operating Voltage: 3V – 3.6V
• Frequency Range: 2412MHz – 2484MHz
• Bandwidth: 20MHz / 40MHz
• Data Rate: Up to 150Mbps
• Flash Memory: 4MB SPI Flash
• Wireless Connectivity: Wi-Fi, Bluetooth 5, IEEE 802.15.4
• GPIO Pins: Up to 23
• Communication Interfaces: SPI, UART, I2C, I2S, PWM, USB Serial, JTAG, SDIO
• Operating Temperature: –40°C to 105°C
• Shipping Weight: 0.03 kg
• Dimensions: 10 × 5 × 2 cm

Package Includes:

1 x ESP32-C6-WROOM-1-N8 Microcontroller Development Board with Headers Pins
