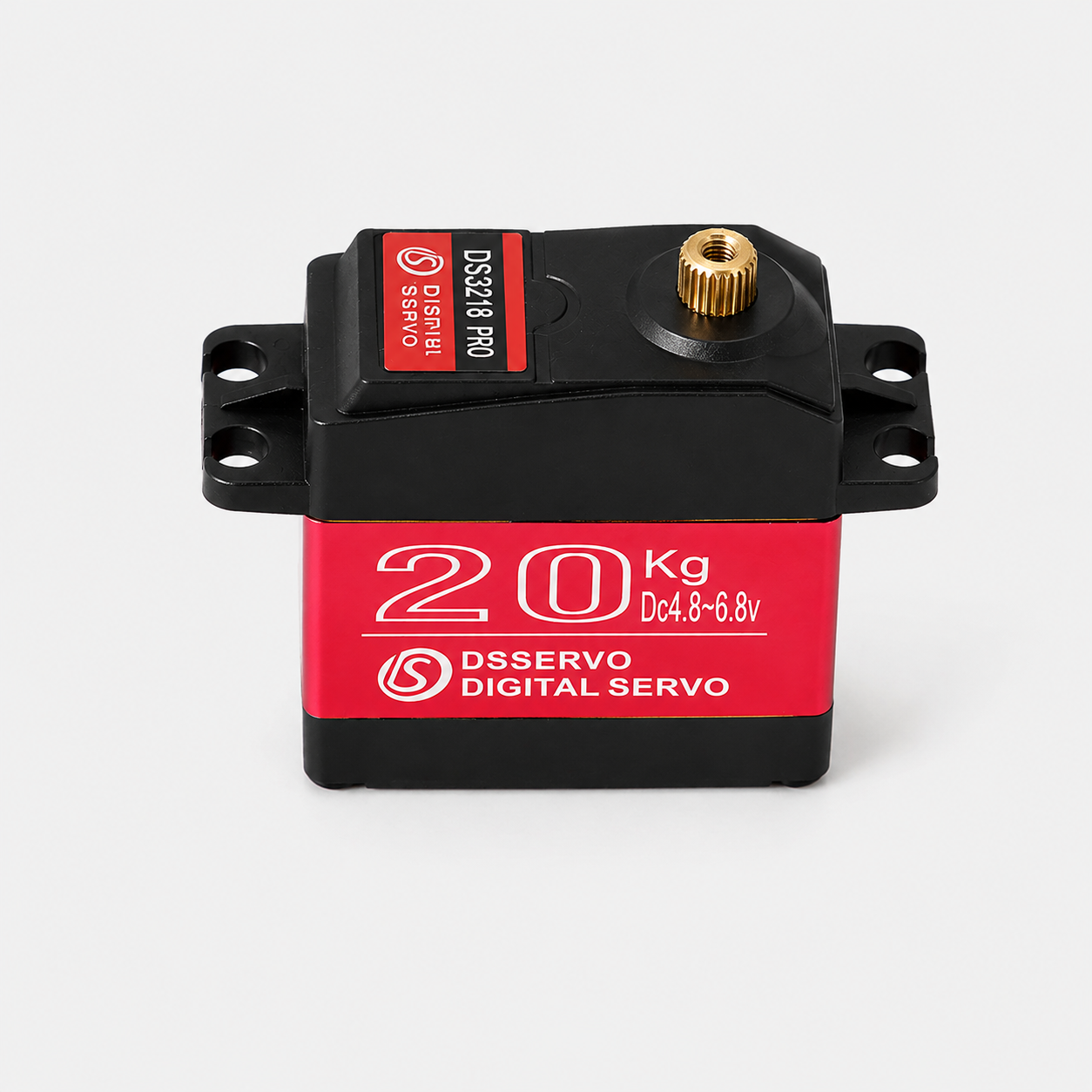

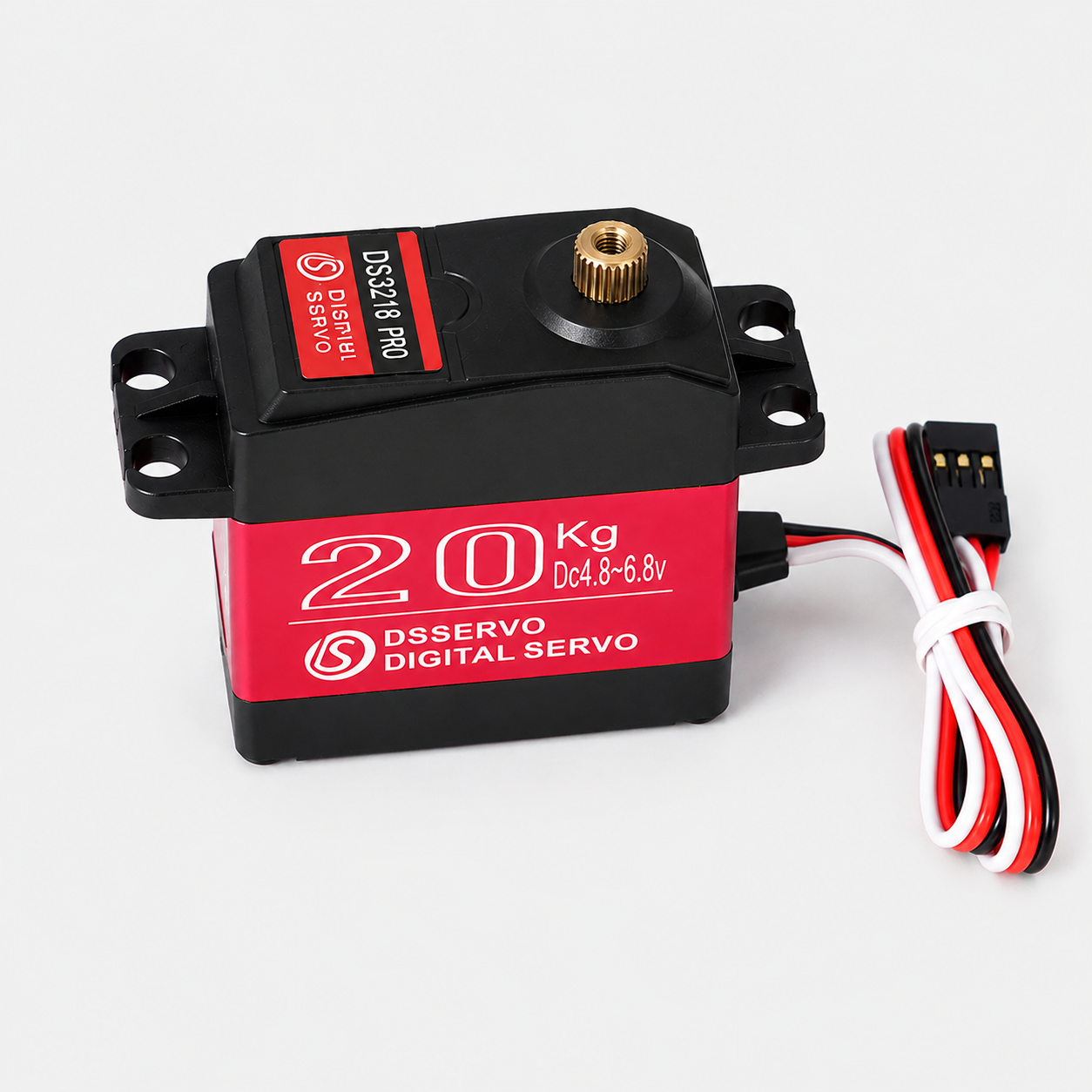

DS3218 Pro 20kgcm Metal Gear Digital Servo Motor - 180 degree
SKU:
MTR-QC6057
Availability:
Out Of Stock
-
- Rs. 1,267.00
- Unit price
- per
Subtotal:
Rs. 1,267.00
Description
xDS3218 Pro 20kgcm Metal Gear Digital Servo Motor is a high-performance digital servo motor designed for robotics, RC vehicles, mechanical arms, automation, and DIY projects. Equipped with high-strength metal gears, dual ball bearings, and a digital control system, it delivers high torque, fast response, and precise positioning. Its robust construction ensures reliable operation even in demanding applications.
Features:
- High torque digital servo motor with metal gear transmission.
- Supports up to 180° rotation.
- High-precision digital control for accurate positioning.
- Durable copper and aluminum metal gears.
- Dual ball bearing design for smooth and stable operation.
- Fast response and high-speed performance.
- High holding torque with low backlash.
- Compatible with 3.3V and 5V PWM control signals.
- Standard 25T output spline for wide accessory compatibility.
- Suitable for RC cars, robotic arms, CNC projects, UAVs, boats, and automation.
- Easy to interface with Arduino, ESP32, Raspberry Pi, STM32, and other microcontrollers.
- Compact standard-size servo for drop-in replacement.
Specifications:
| Parameter | Value |
|---|---|
| Model | DS3218 Pro |
| Servo Type | Digital Servo |
| Rotation Angle | 180° |
| Operating Voltage | 4.8V – 6.8V DC |
| Recommended Voltage | 5V – 6V |
| Stall Torque @ 5V | 21 kg·cm |
| Stall Torque @ 6.8V | 23.5 kg·cm |
| Holding Torque | 20 kg·cm |
| Operating Speed @ 5V | 0.12 sec/60° |
| Operating Speed @ 6.8V | 0.10 sec/60° |
| Motor Type | DC Brushed Motor |
| Gear Material | Copper & Aluminum Metal Gears |
| Gear Type | Full Metal Gear |
| Control Method | PWM |
| Working Frequency | 333Hz |
| Neutral Pulse Width | 1500µs |
| Pulse Width Range | 500–2500µs |
| Signal Dead Band | 3µs |
| Output Spline | 25T |
| Bearing Type | Dual Ball Bearing |
| Gear Ratio | 236:1 |
| Running Current @ 5V | Approximately 4A |
| Running Current @ 6.8V | Approximately 5A |
| Stall Current @ 5V | Approximately 2.1A |
| Stall Current @ 6.8V | Approximately 2.9A |
| Idle Current | 4–5mA |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Waterproof Rating | IP66 |
| Housing Material | Engineering Plastic with Aluminum Center Case |
| Dimensions | 40 × 20 × 40.5mm |
| Weight | Approximately 60g |
| Connector Wire Length | Approximately 300mm |
| Direction | Counterclockwise (PWM Controlled) |
| Mounting Type | Standard Servo Mount |
| Compatible Controllers | Arduino, ESP32, Raspberry Pi, STM32, PIC, AVR and other PWM controllers |
| Applications | RC Cars, RC Boats, RC Aircraft, Robotic Arms, Quadruped Robots, Mechanical Projects, Automation Systems, Pan-Tilt Mechanisms, Smart Robots |
Also Check These Out:
MG996R Tower Pro Digital Metal Gear High Torque Servo Motor
MG996R Tower Pro Digital Metal Gear High Torque Servo Motor
MG995 Metal Gear Servo Motor (180 Degree Rotation)

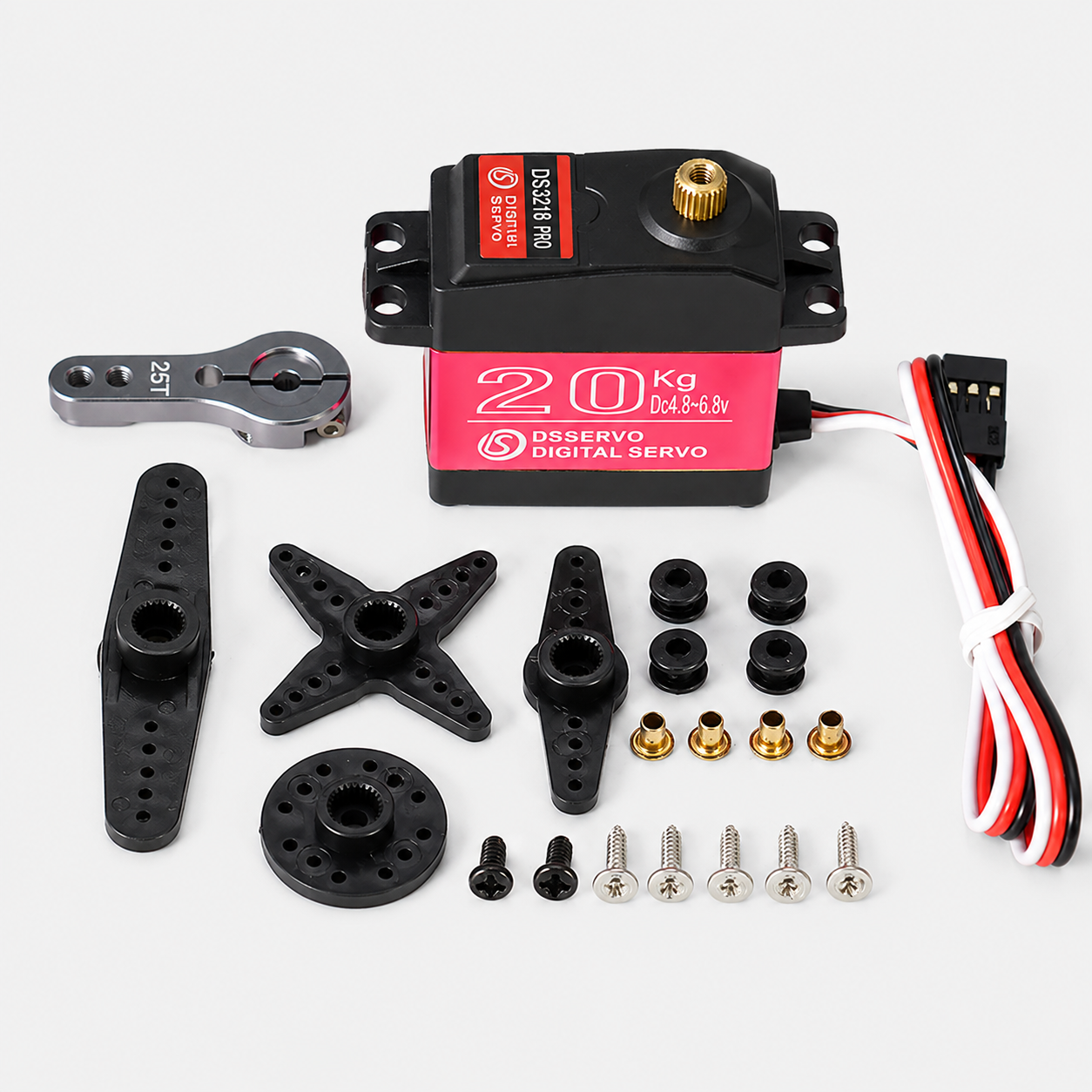

Package Includes:
1 × DS3218 Pro 20kgcm Metal Gear Digital Servo Motor - 180 Degree
