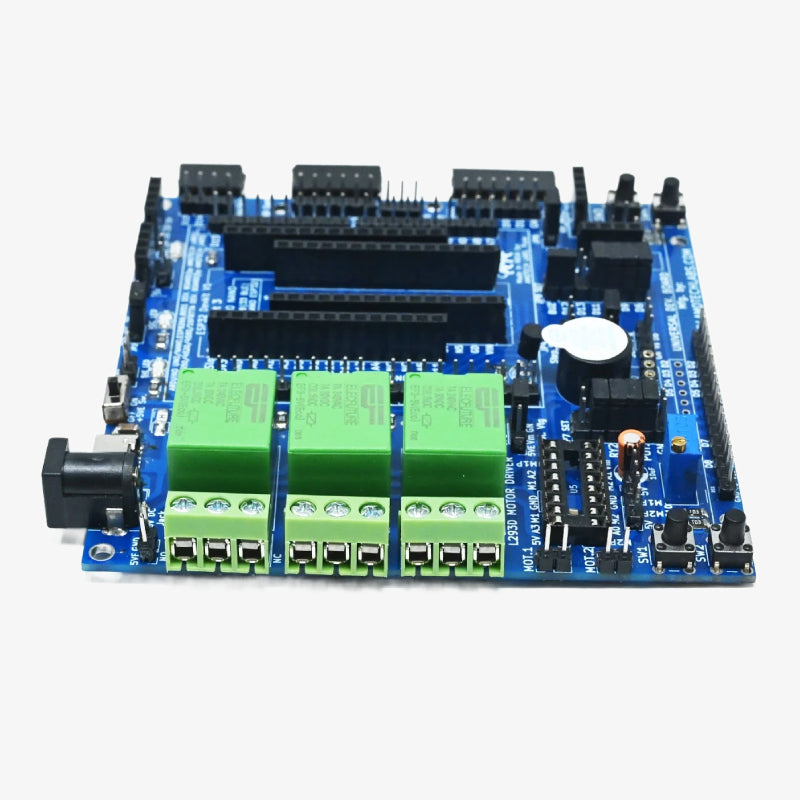

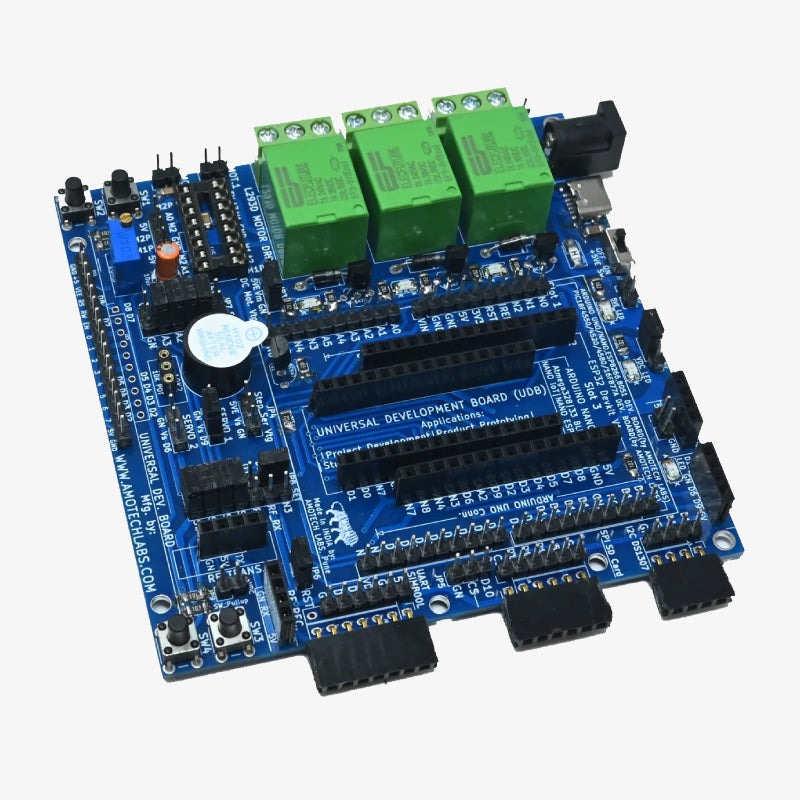

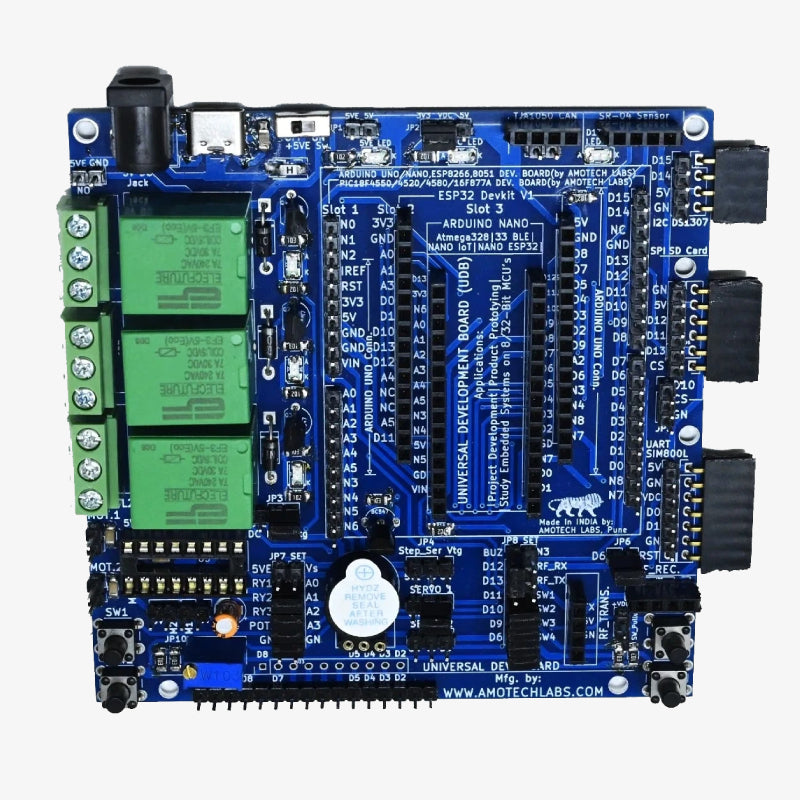

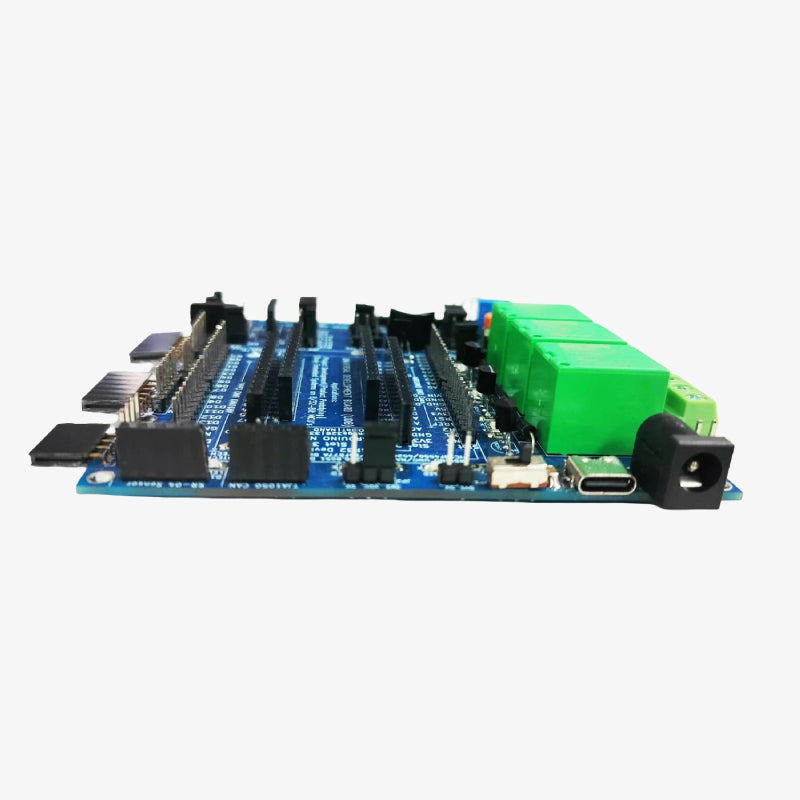

Amotech Labs Universal Development Board (UDB) is a multi-microcontroller development platform designed to work with 8051, PIC18F/16F, ESP32, Arduino Nano, and STM32-based boards. It provides multiple onboard peripherals and expansion connectors, including LCD, relays, motor control, servo and stepper interfaces, communication-module slots, sensor interfaces, and digital inputs for embedded-system development, academic projects, and prototyping.

| Specification | Value |
|---|---|
| Brand | Amotech Labs |
| Product Type | Universal Development Board |
| Model | UDB |
| Supported Platforms | 8051, PIC18F/16F, ESP32, Arduino Nano, STM32 |
| LCD Interface | 16×2 / 20×4 |
| Digital Input Buttons | 4 |
| Relay Outputs | 3 |
| Motor Driver | L293D |
| DC Motor Connectors | 2 |
| Servo Motor Connectors | 2 |
| Stepper Motor Connector | 1 |
| Buzzer | 1 |
| Analog Input | 10K Potentiometer / LM35 |
| RTC Interface | DS1307 |
| GSM Interface | SIM800L |
| Storage Interface | SD Card |
| RF Interface | Transmitter / Receiver |
| Ultrasonic Interface | SR-04 |
| CAN Interface | TJA1050 |
| Application | Embedded System Development and Prototyping |
STM8S103F3P6 STM8 Development Board
CJMCU MCP4725 I2C DAC Breakout Development Board
1 × Amotech Labs Universal Development Board (UDB)
