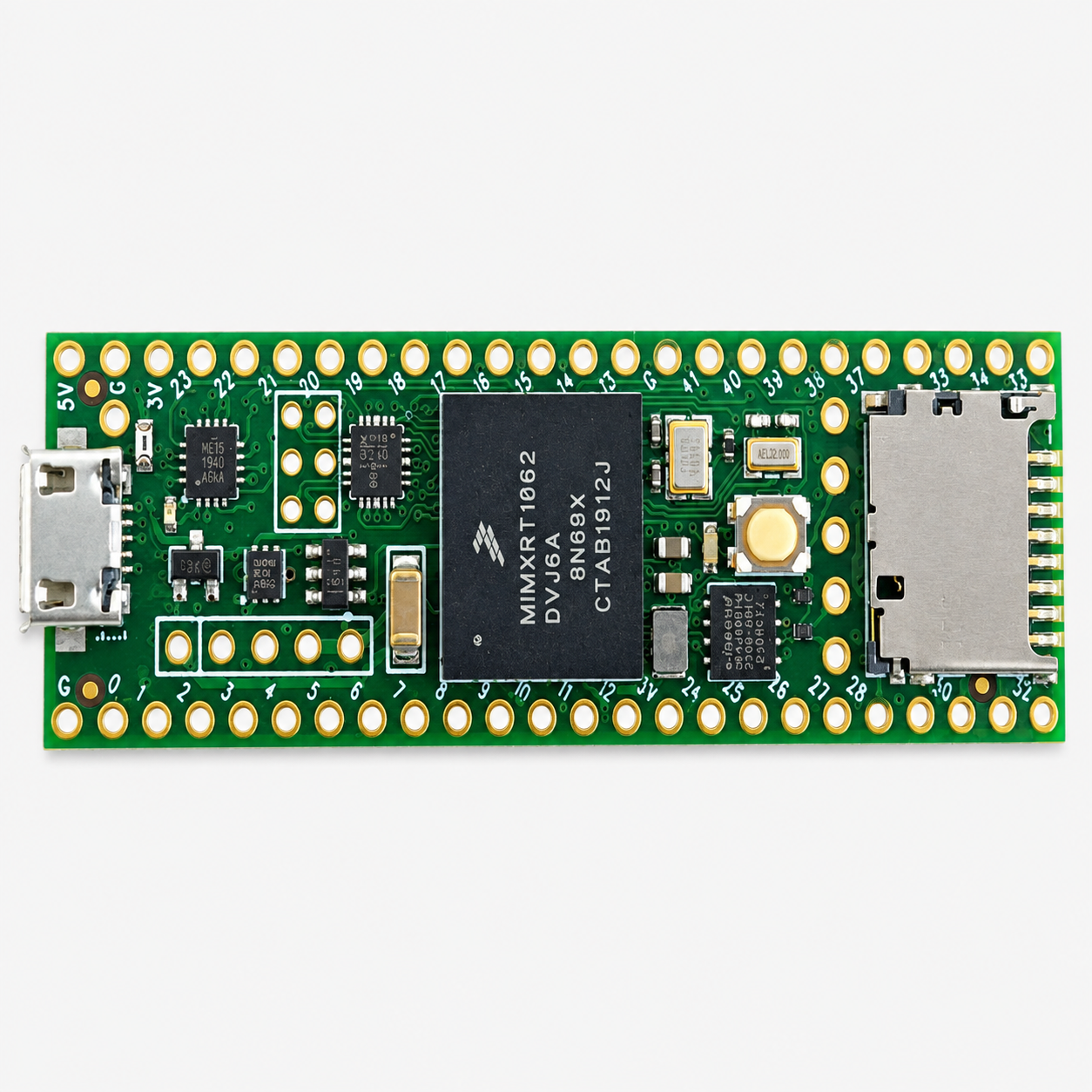

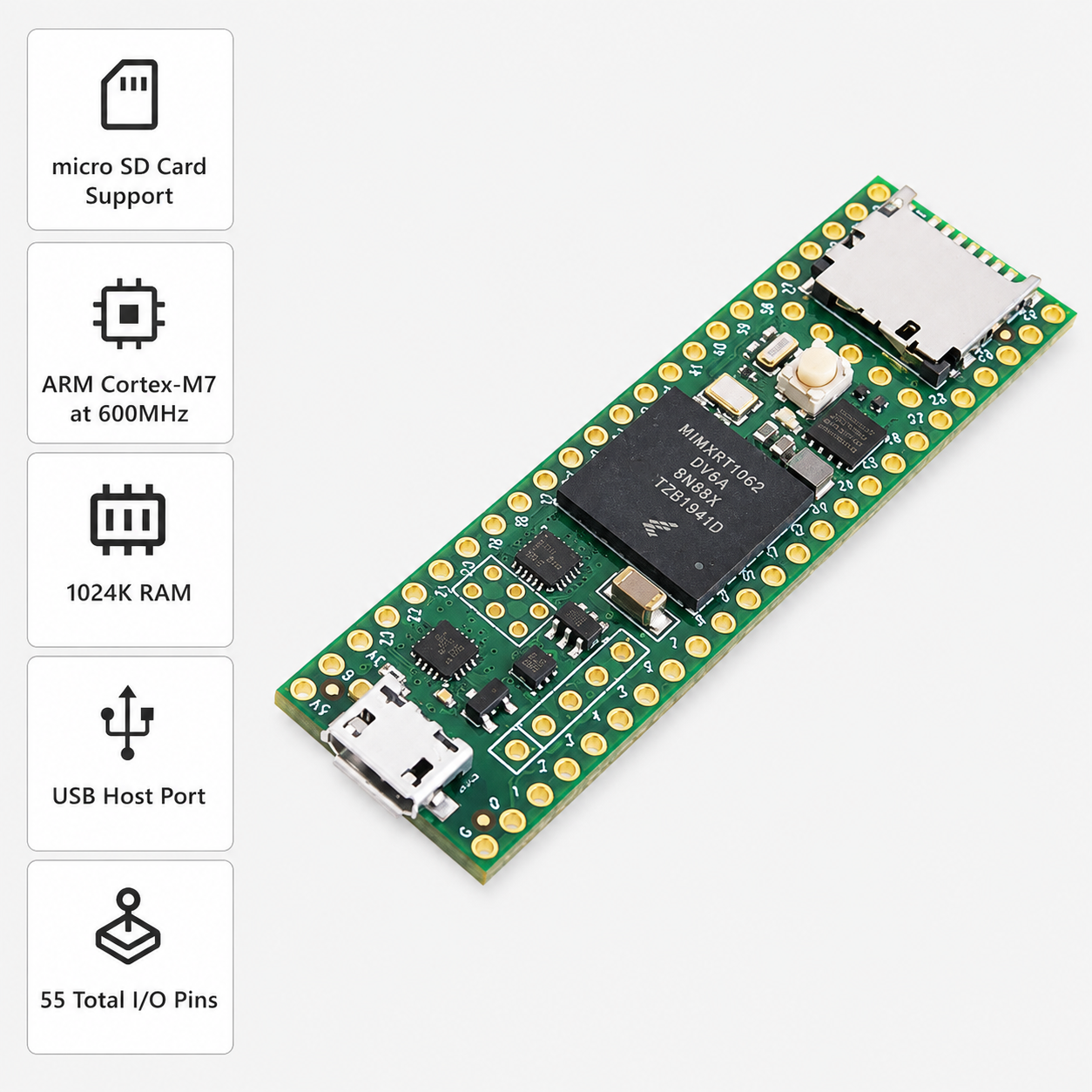

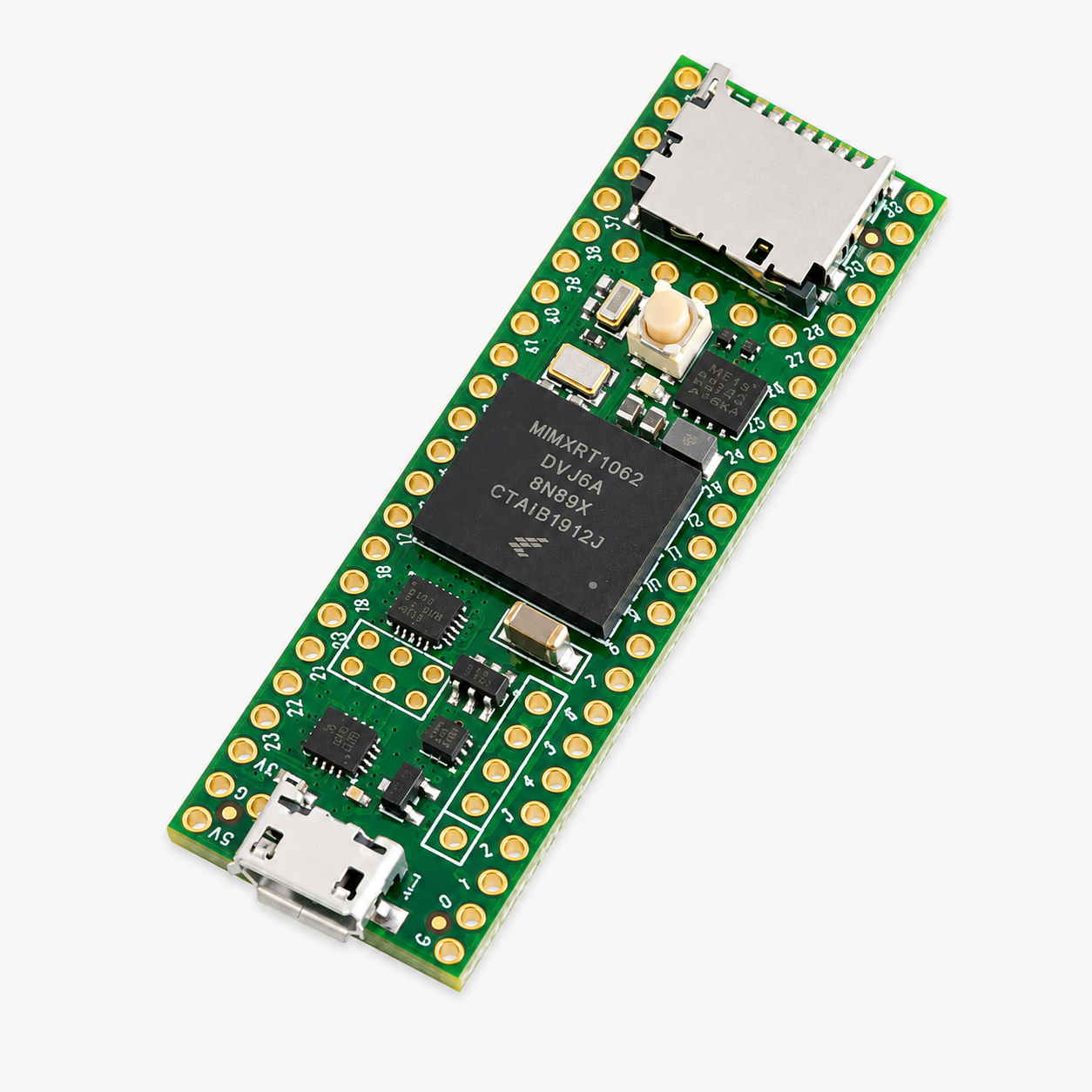

Teensy 4.1 Development Board
SKU:
DVB-QC6064
Availability:
4
In Stock
-
- Rs. 2,882.00
- Unit price
- per
Subtotal:
Rs. 2,882.00
Description
xTeensy 4.1 Development Board is a high-performance ARM Cortex-M7 microcontroller development board powered by the NXP i.MX RT1062 processor running at 600MHz. It offers exceptional processing power, abundant memory, high-speed USB, Ethernet support, SD card interface, CAN bus, SPI, I²C, UART, I²S, and numerous GPIOs, making it ideal for embedded systems, robotics, audio processing, industrial automation, and IoT applications.
Features:
- Powered by a 600MHz ARM Cortex-M7 processor.
- Compatible with the Arduino IDE using the Teensyduino add-on.
- Large Flash and RAM for complex embedded applications.
- Supports USB Host and USB Device functionality.
- Built-in microSD card socket for data logging and storage.
- Ethernet PHY support through onboard pads.
- Dual CAN Bus interfaces for automotive and industrial communication.
- High-speed SPI, I²C, UART, I²S, PWM, and ADC interfaces.
- Supports floating-point operations and DSP instructions.
- Compact form factor with breadboard-friendly pin spacing.
- Ideal for robotics, audio processing, industrial control, and IoT projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Development Board |
| Model | Teensy 4.1 |
| Main Controller | NXP i.MX RT1062 |
| CPU Core | ARM Cortex-M7 |
| Clock Speed | 600MHz |
| Flash Memory | 8MB QSPI Flash |
| RAM | 1024KB (1MB) |
| EEPROM | 4284 Bytes (Emulated) |
| Operating Voltage | 3.3V |
| Input Voltage (VIN) | 3.6V – 5.5V |
| Digital I/O Pins | 55 |
| PWM Pins | 35 |
| Analog Input Pins | 18 |
| ADC Resolution | 12-bit |
| DAC Resolution | 12-bit (2 Channels) |
| USB Interface | USB 2.0 High Speed (480Mbps) |
| Ethernet Support | 10/100 Ethernet PHY (via RMII) |
| CAN Interfaces | 2 × CAN Bus |
| SPI Interfaces | 3 |
| I²C Interfaces | 3 |
| UART Interfaces | 8 |
| I²S / Audio Interfaces | 3 |
| microSD Card Slot | Yes |
| RTC | Yes |
| GPIO Logic Level | 3.3V |
| Programming Interface | Micro USB |
| Board Dimensions | 61 × 18mm |
| Operating Temperature | -40°C to +85°C |
| Compatible Software | Arduino IDE (Teensyduino), PlatformIO |
| Applications | Robotics, Audio Processing, Embedded Systems, Industrial Automation, Data Logging, IoT, CNC Control, Instrumentation |
Also Check These Out:
Package Includes:
1 × Teensy 4.1 Development Board
