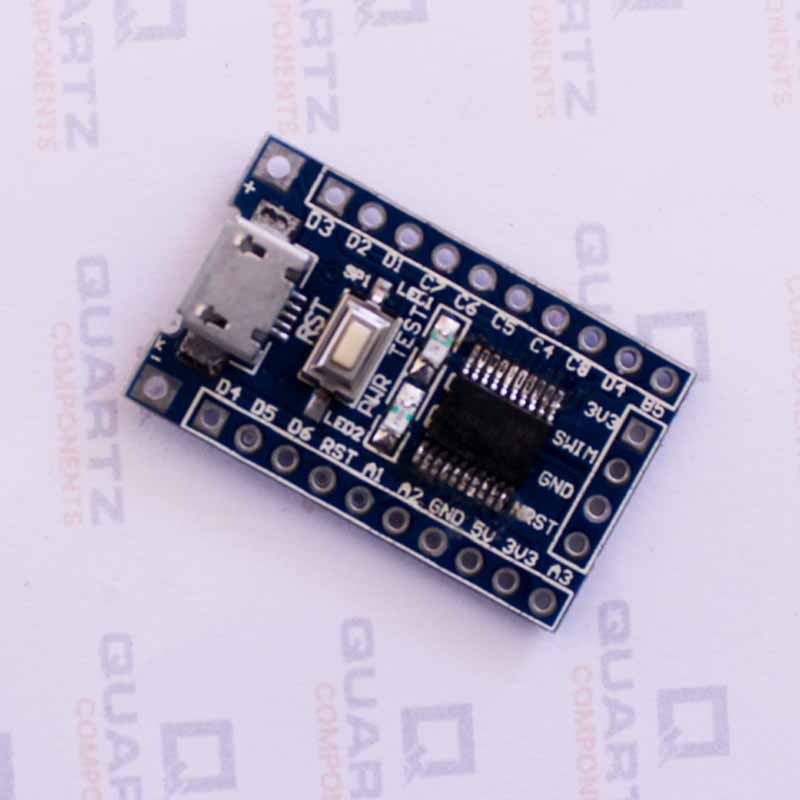

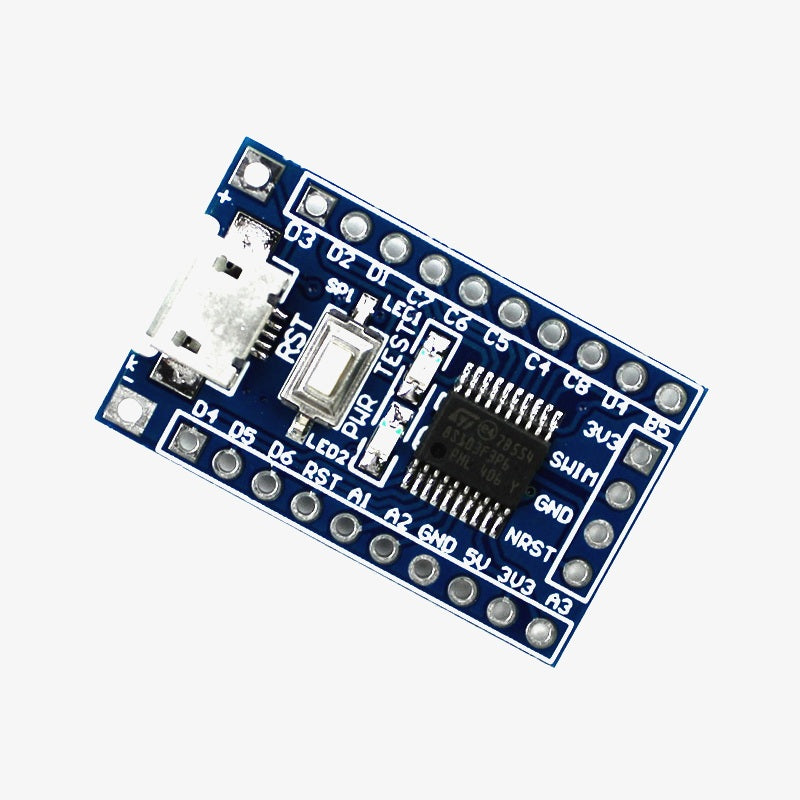

The STM8S103F3P6 Development Board is a cost-effective and user-friendly solution for incorporating the STM8S103F3P6 Microcontroller into your embedded computing projects. Designed with simplicity and functionality in mind, this development board allows you to harness the power of the STM8S family in a hassle-free manner.
Featuring the STM8S103F3P6 chip directly on the board, you can easily connect and utilize its capabilities. The board is equipped with a convenient SWIM connector for programming purposes, allowing for seamless code uploading and debugging. Additionally, an on-board reset switch is available to provide easy system resets when needed.

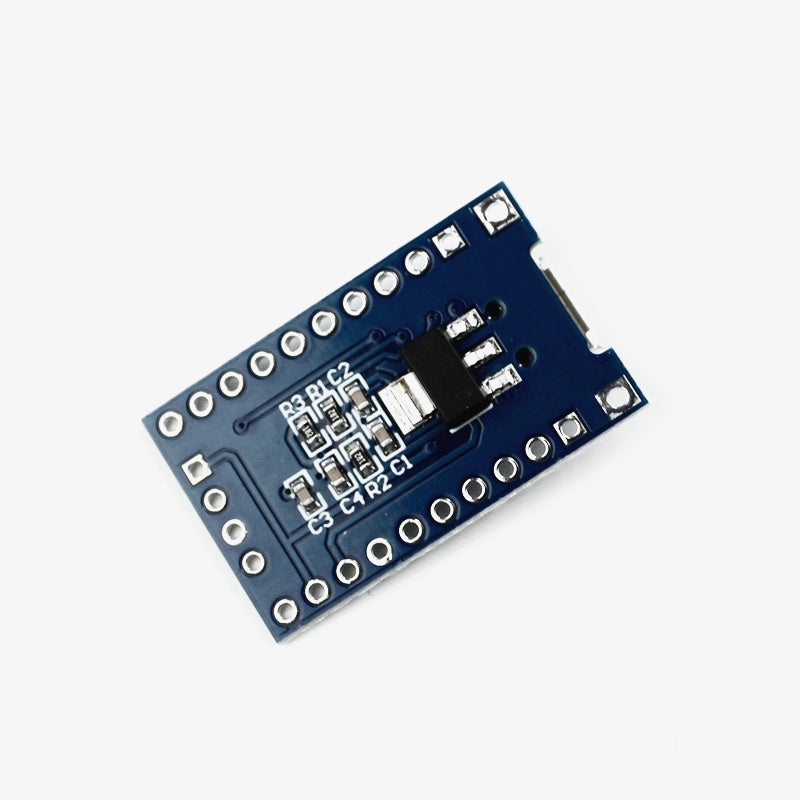

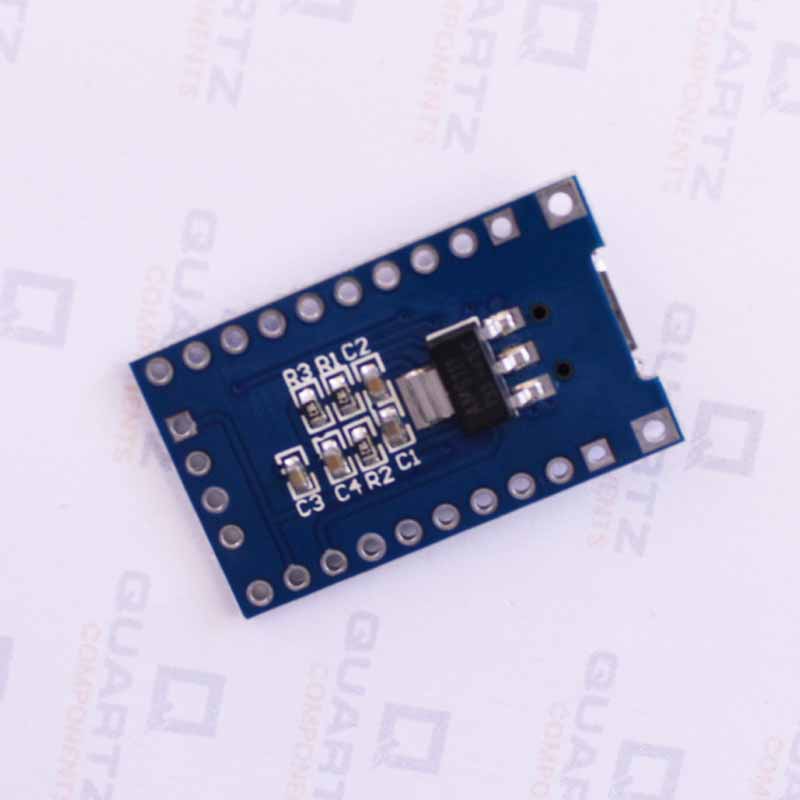

To ensure a stable and reliable power supply, the development board includes an AMS1117-3.3 voltage regulator that efficiently converts a 5V power source to a stable 3.3V output. You can conveniently power the board using the MicroUSB connector, providing a versatile and readily available power option.
All the necessary pin-outs are conveniently located on a 0.1" header, enabling straightforward connections with other components and peripherals. Furthermore, the board offers a soldering place for an external crystal oscillator, allowing you to enhance the accuracy and precision of your applications if desired.
With the STM8S103F3P6 Development Board, you can easily integrate the STM8S103F3P6 Microcontroller into your projects, taking advantage of its advanced features and unleashing your creativity in embedded computing designs.
- Used MCU STM8S103F3P6
- On board, SWIM interface and reset button
- Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V
- Power light and the Demo indicator light
- Leads all the pins and has detailed label for the Pins
- Support SWIM debug mode
Package Includes:
1 x STM8S103F3P6 STM8 Development Board
