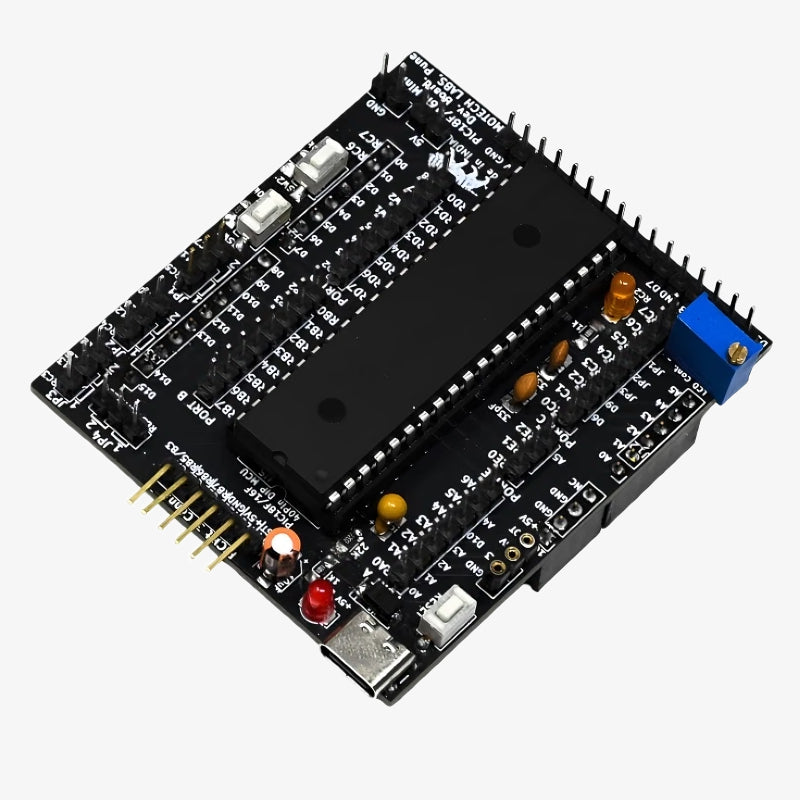

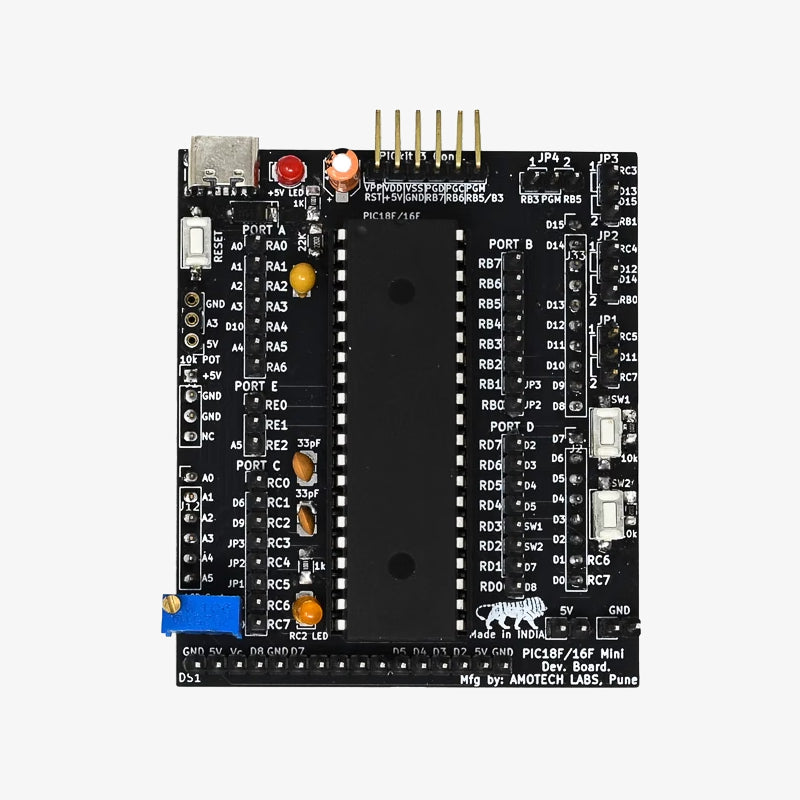

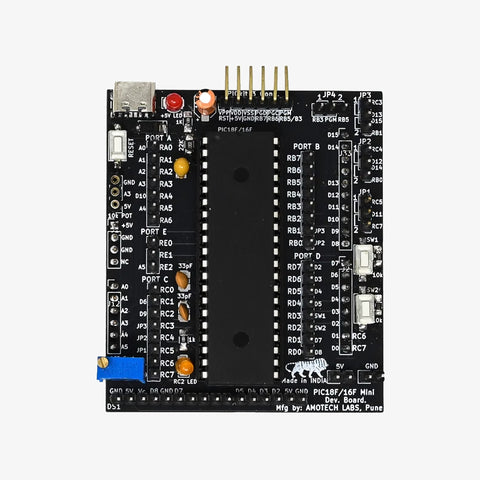

Amotech Labs - PIC18F/16F Mini Development Board (with PIC18F452 IC and LCD)

Amotech Labs PIC18F/16F Mini Development Board with PIC18F452 Microcontroller and 16×2 LCD is a compact embedded systems development platform designed for learning, prototyping, and developing applications using PIC18F and PIC16F microcontrollers. It features a 40-pin DIP socket, an onboard PIC18F452 microcontroller, a 16×2 character LCD, two digital input buttons, and two output LEDs. USB Type-C power input simplifies setup, while the onboard connectors provide access to microcontroller I/O pins and analog input connections. The board supports PICkit 3 and PICkit 3.5 programmers and is suitable for academic projects, microcontroller training, and embedded control prototyping.

Amotech Labs PIC18F/16F Development Board Datasheet

Features:

1. Supports PIC18F and PIC16F series 40-pin DIP microcontrollers
2. Includes an onboard PIC18F452 microcontroller
3. Integrated 16×2 character LCD for displaying text and values
4. LCD connector supports compatible 16×2 and 20×4 displays
5. Two onboard digital input push buttons
6. Two onboard output LEDs connected to digital pins
7. Analog input connections for a 10kΩ potentiometer and LM35 temperature sensor
8. Accessible microcontroller port I/O pins for external interfacing
9. Compatible with PICkit 3 and PICkit 3.5 programmers
10. USB Type-C power input using a 5V supply
11. Supports programming and development using MPLAB X IDE
12. Compatible with the Amotech Labs Universal Development Board for expanded project functionality
13. Suitable for embedded systems education, academic projects, and prototype development

Specifications:

Also Check These Products:-

STM8S103F3P6 STM8 Development Board

Teensy 4.1 Development Board

PIC Development Board

CJMCU MCP4725 I2C DAC Breakout Development Board

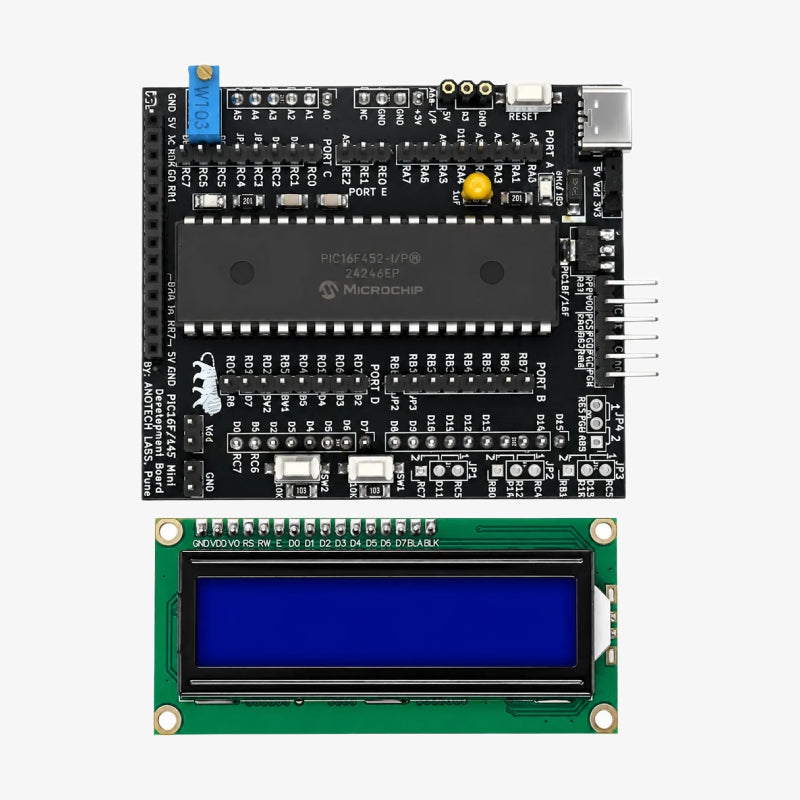

Package Includes:

1 × Amotech Labs PIC18F/16F Mini Development Board

1 × PIC18F452 Microcontroller

1 × 16×2 Character LCD
