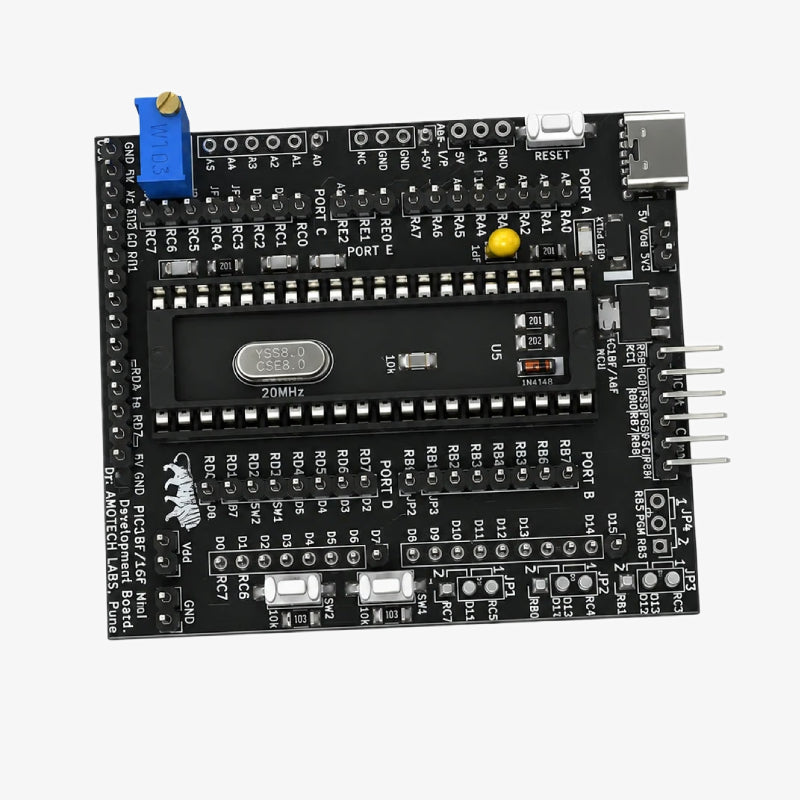

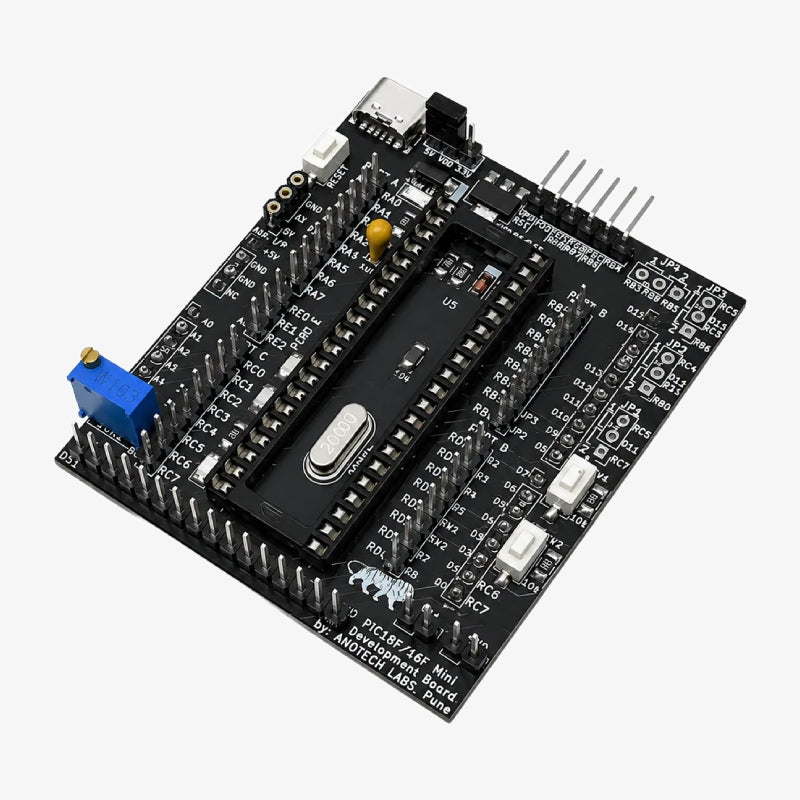

Amotech Labs - PIC18F/16F Mini Development Board (Only Board)
SKU:
DVB-QC6399
Availability:
2
In Stock
-
- Rs. 484.00
- Unit price
- per
Subtotal:
Rs. 484.00
Description
xAmotech Labs PIC18F/16F Mini Development Board is a compact development platform designed for learning, programming, and prototyping with PIC18F and PIC16F series 40-pin DIP microcontrollers. It features an LCD connector, two digital input buttons, two onboard LEDs, analog input connections, and accessible microcontroller I/O pins. The board supports programming through compatible PICkit 3 and PICkit 3.5 programmers and can be powered using a 5V USB Type-C supply. This board-only version is supplied without the PIC18F452 microcontroller and LCD display.
Amotech Labs PIC18F/16F Development Board Datasheet
Features:
- Supports PIC18F and PIC16F series 40-pin DIP microcontrollers
- 40-pin DIP IC socket for compatible microcontrollers
- LCD connector compatible with 16×2 and 20×4 character displays
- Two onboard digital input push buttons
- Two onboard output LEDs connected to digital pins
- Analog input connections for a 10kΩ potentiometer and LM35 temperature sensor
- Accessible microcontroller port I/O pins for external interfacing
- Compatible with PICkit 3 and PICkit 3.5 programmers
- Supports development using MPLAB X IDE
- USB Type-C power input for a 5V supply

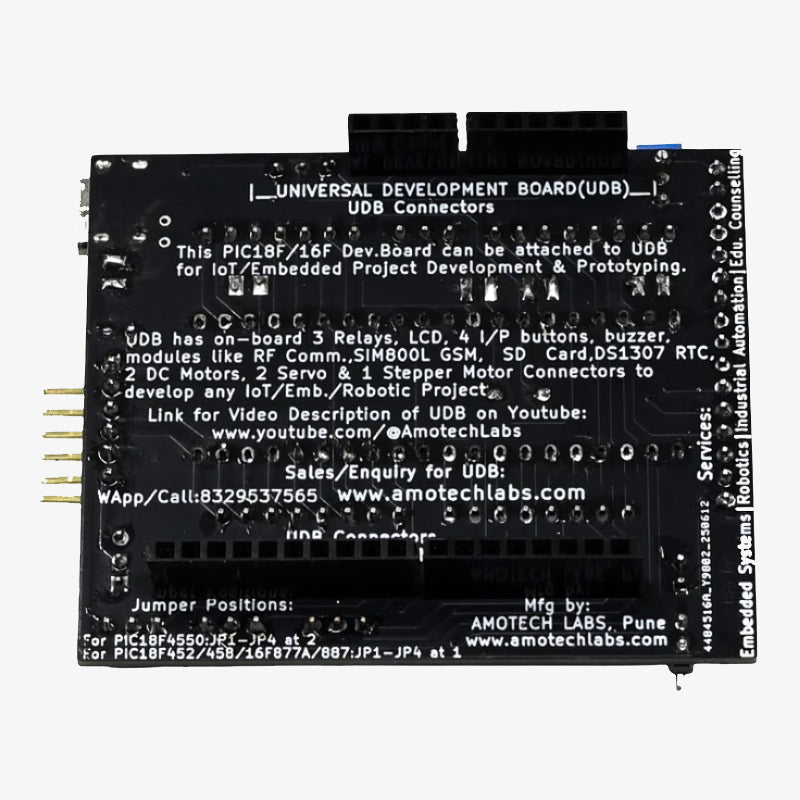

- Compatible with the Amotech Labs Universal Development Board
- Suitable for embedded systems education, academic projects, and PIC-based prototyping
Specifications:
| Specification | Value |
|---|---|
| Brand | Amotech Labs |
| Product Type | PIC Microcontroller Development Board |
| Supported MCU Families | PIC18F and PIC16F |
| Supported Package | 40-pin DIP |
| Included Microcontroller | Not included |
| LCD Display | Not included |
| LCD Interface | 16×2 / 20×4 character LCD |
| Digital Input Buttons | 2 |
| Onboard Output LEDs | 2 |
| Analog Input Support | 10kΩ potentiometer and LM35 sensor |
| Programming Interface | ICSP |
| Compatible Programmers | PICkit 3, PICkit 3.5 |
| Development Software | MPLAB X IDE |
| Power Input | 5V DC |
| Power Connector | USB Type-C |
| Board Dimensions | 70 × 60mm |
| Applications | PIC programming, embedded systems training, academic projects, and prototyping |
Also Check These Products:-
STM8S103F3P6 STM8 Development Board
CJMCU MCP4725 I2C DAC Breakout Development Board
Package Includes:
1 × Amotech Labs PIC18F/16F Mini Development Board (Only Board)
