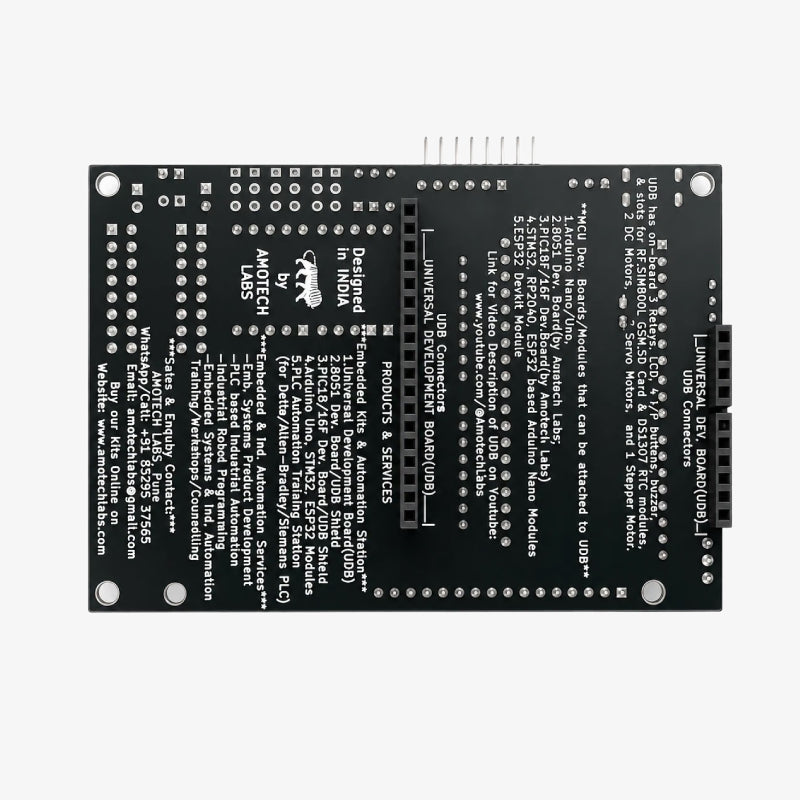

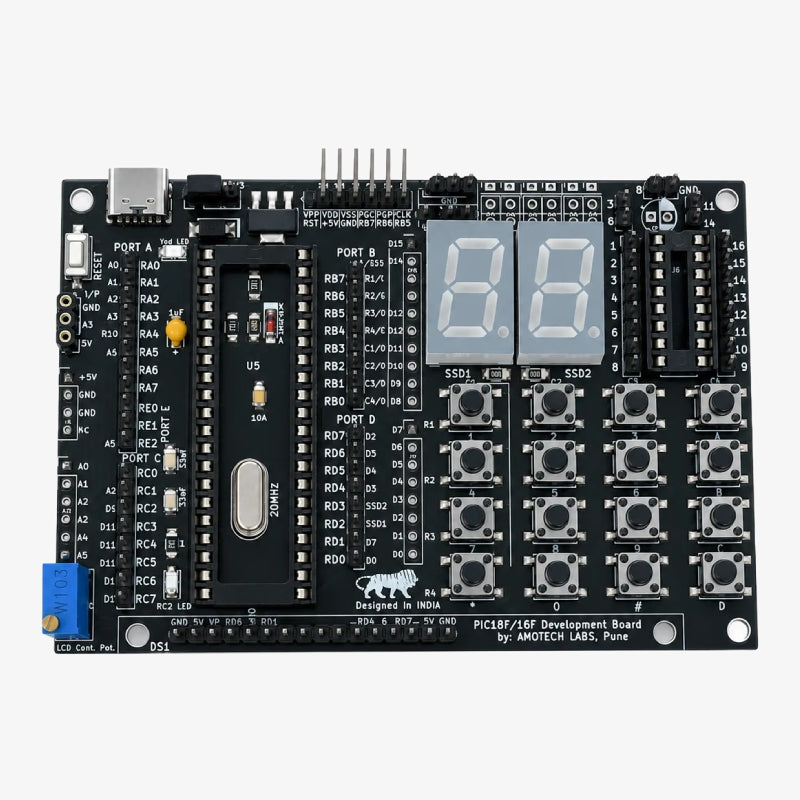

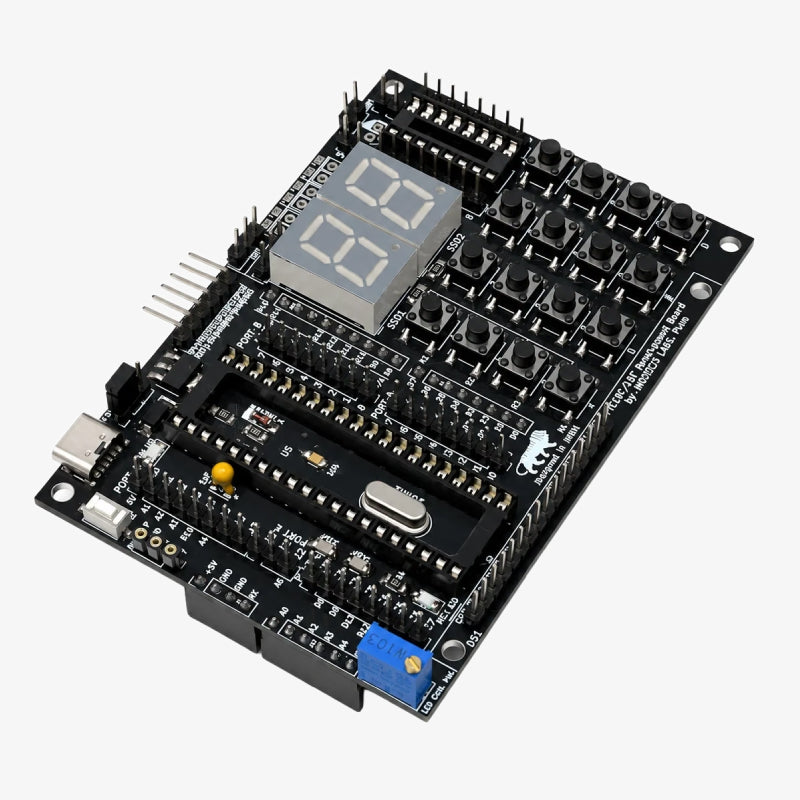

Amotech Labs PIC18F/16F Development Board (Only Board) is a low-cost development board designed for learning, programming, and prototyping with 40-pin DIP PIC18F/16F microcontrollers. It supports PIC18F452, PIC18F458, PIC18F4550, PIC16F877A, PIC16F887, and other compatible 40-pin DIP devices, with onboard interfaces for LCD, keypad, seven-segment displays, analog input, and IC interfacing.

| Specification | Value |
|---|---|
| Brand | Amotech Labs |
| Product Type | PIC18F/16F Development Board |
| Microcontroller Family | PIC18F / PIC16F |
| MCU Package | 40-Pin DIP |
| Compatible MCUs | PIC18F452, PIC18F458, PIC18F4550, PIC16F877A, PIC16F887 |
| Programmer | PIC Kit 3 / 3.5 |
| LCD Interface | 16×2 / 20×4 |
| Keypad Interface | 4×4 Matrix |
| Seven-Segment Displays | 2 |
| Analog Interface | 10K Potentiometer / LM35 |
| IC Socket | 16-DIP |
| Supported ICs | L293D / ULN2004 |
| I/O Connectors | PIC Port I/O |
| Power Input | USB Type-C, +5V |
| Compatible Board | Universal Development Board (UDB) |
| Application | PIC Microcontroller Learning and Prototyping |
STM8S103F3P6 STM8 Development Board
CJMCU MCP4725 I2C DAC Breakout Development Board
1 × Amotech Labs PIC18F/16F Development Board (Only Board)
