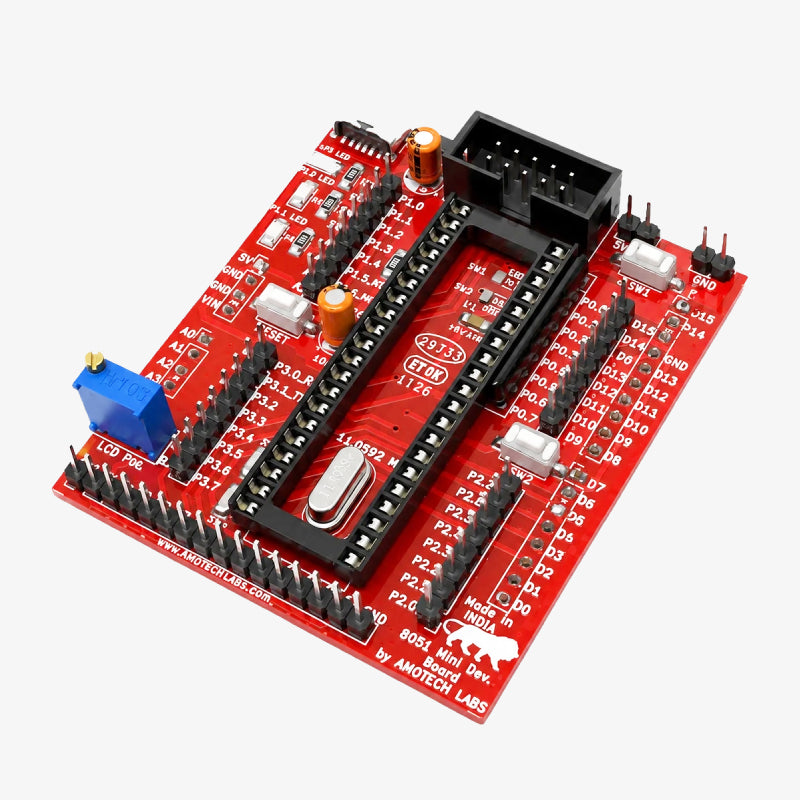

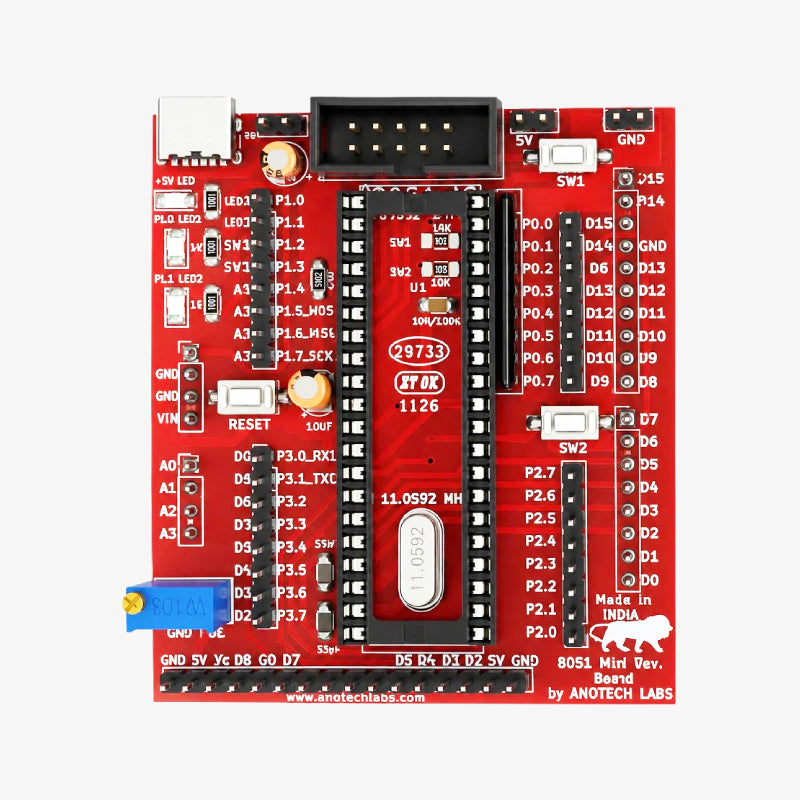

Amotech Labs 8051 Mini Development Board with 89S52 IC, ISP Programmer and LCD is a compact 8051 development kit designed for hands-on learning, academic projects, embedded-system prototyping, and 8051 microcontroller programming. The board supports 40-pin DIP 8051 microcontrollers such as 89S52 and 89C51, includes an onboard LCD connector, digital input buttons, output LEDs, and port I/O connectors, and can be programmed using an ISP USB Programmer.
Amotech Labs - 8051 Mini Development Board User Manual

| Specification | Value |
|---|---|
| Brand | Amotech Labs |
| Product Type | 8051 Mini Development Board Kit |
| Microcontroller | 89S52 |
| Microcontroller Family | 8051 |
| MCU Package | 40-Pin DIP |
| Compatible MCUs | 89S52, 89C51 and other 40-Pin DIP 8051 MCUs |
| Programming Method | ISP USB Programmer |
| LCD | 16x2 |
| LCD Interface | 16x2 / 20x4 |
| Digital Input Buttons | 2 |
| Output LEDs | 2 |
| I/O Connectors | Port I/O |
| Power Input | USB Type-C |
| Board Format | Arduino Uno Size |
| Application | 8051 Learning, Academic Projects and Prototyping |
STM8S103F3P6 STM8 Development Board
CJMCU MCP4725 I2C DAC Breakout Development Board

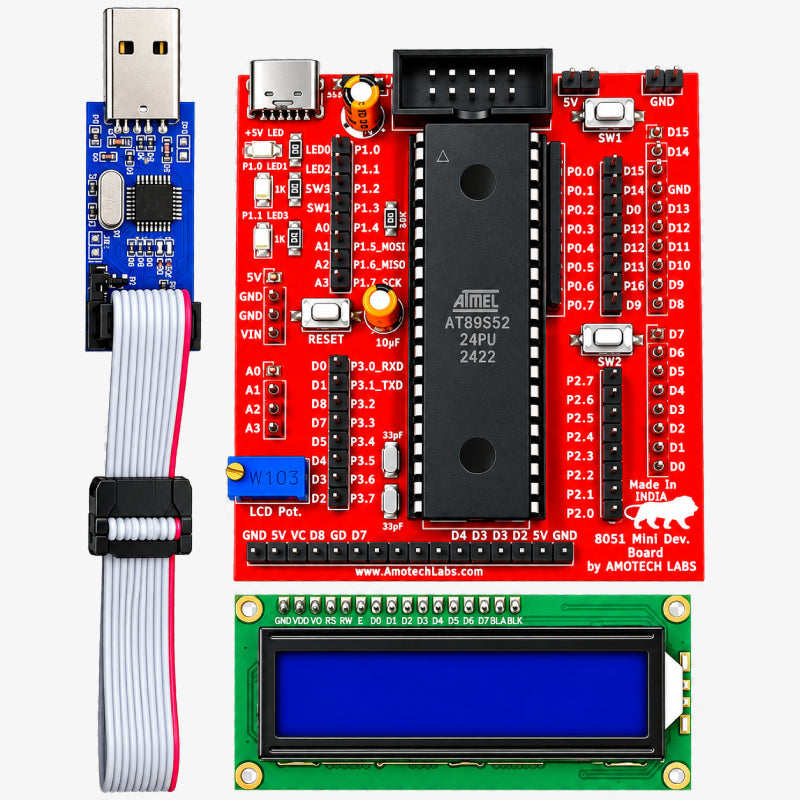

1 × Amotech Labs 8051 Mini Development Board
1 × 89S52 IC
1 × ISP USB Programmer
1 × 16x2 LCD Display
