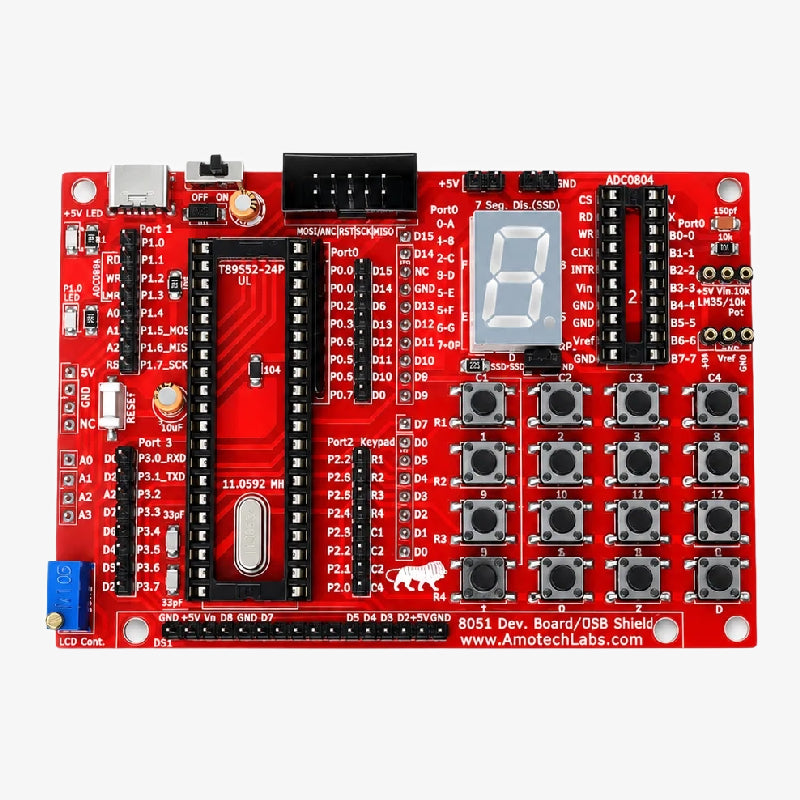

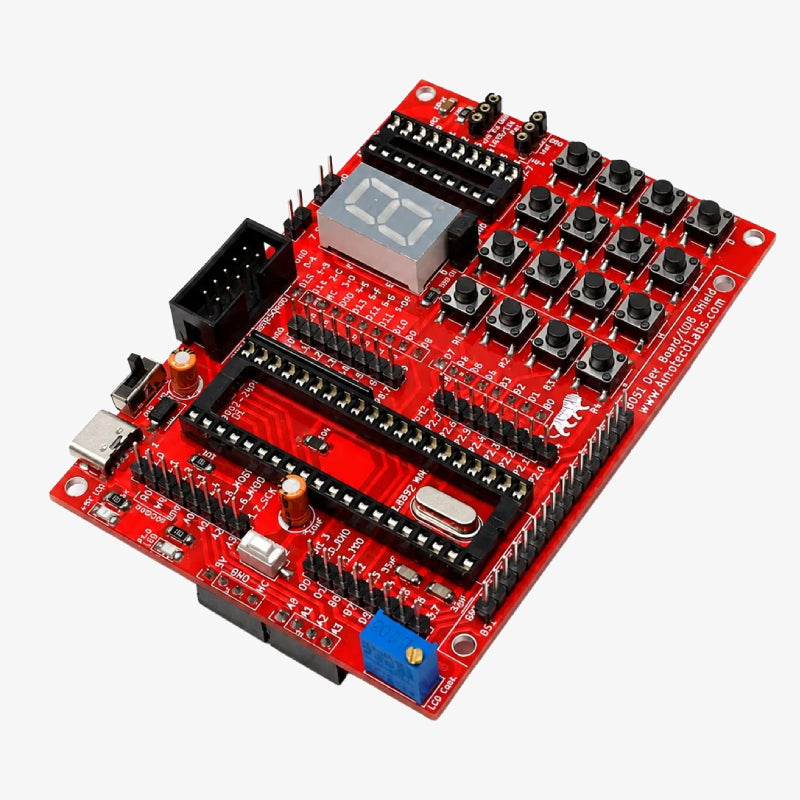

Amotech Labs 8051 Development Board with 89S52 IC, ISP Programmer and LCD is a development kit designed for hands-on learning, academic projects, and prototyping with 40-pin DIP 8051 microcontrollers. The board includes an 89S52 IC, 16×2 LCD, ISP USB Programmer support, 4×4 keypad, seven-segment display, ADC0804 circuit, digital input buttons, LEDs, and port I/O connectors. It can be powered using a +5V USB Type-C supply.

| Specification | Value |
|---|---|
| Brand | Amotech Labs |
| Product Type | 8051 Development Board Kit |
| Microcontroller | 89S52 |
| Microcontroller Family | 8051 |
| MCU Package | 40-Pin DIP |
| Compatible Microcontrollers | 89S52, 89C51 and other 40-Pin DIP 8051 MCUs |
| Programming Method | ISP USB Programmer |
| LCD Display | 16×2 |
| LCD Interface | 16×2 / 20×4 |
| Keypad | 4×4 Matrix |
| Seven-Segment Display | 1 |
| Digital Input Buttons | 2 |
| Output LEDs | 2 |
| ADC Circuit | ADC0804 |
| Analog Input | 10K Potentiometer / LM35 |
| I/O Connectors | Port I/O |
| Power Input | USB Type-C, +5V |
| Application | 8051 Learning, Academic Projects and Prototyping |
STM8S103F3P6 STM8 Development Board
CJMCU MCP4725 I2C DAC Breakout Development Board
1 × Amotech Labs 8051 Development Board
1 × 89S52 IC
1 × ISP USB Programmer
1 × 16×2 LCD Display
