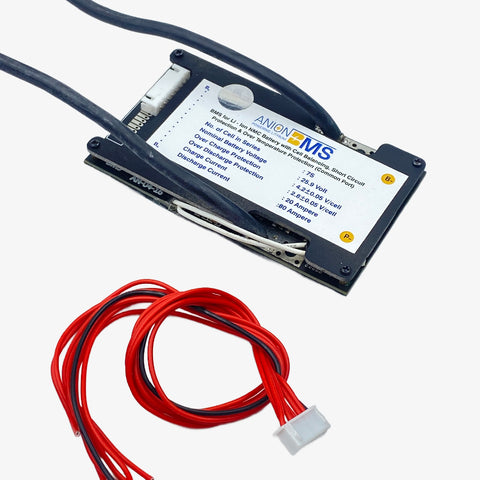

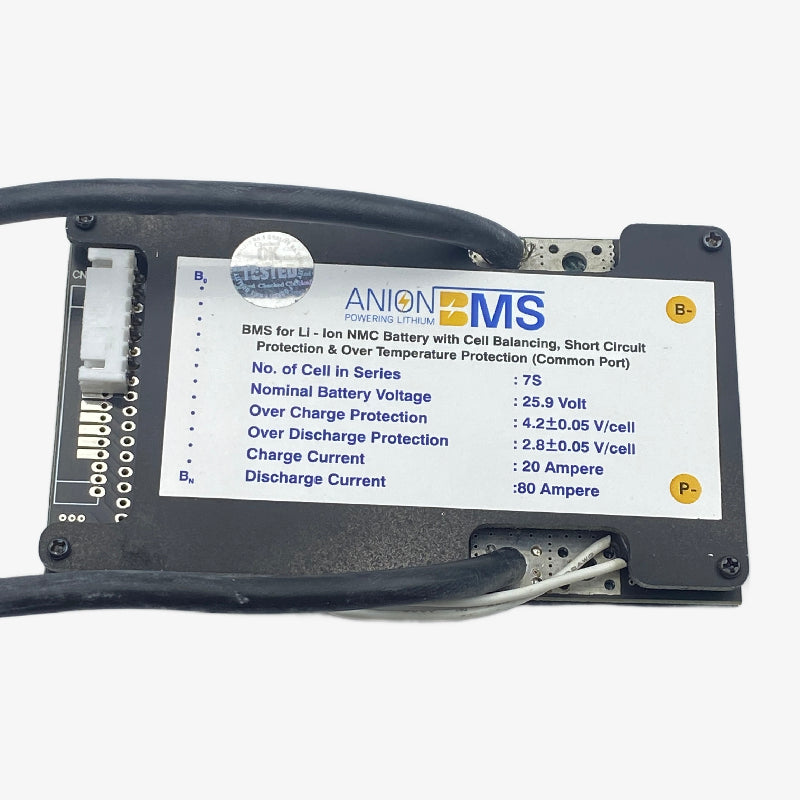

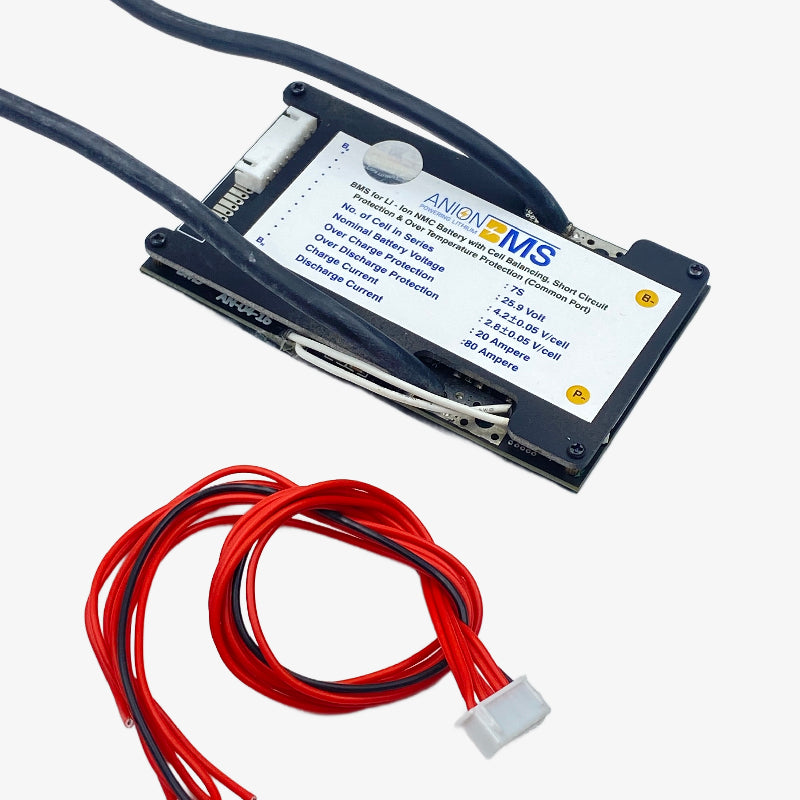

7S 24V/25.9V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V/25.9V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port) is a high-performance battery management system designed to protect and optimize 7 series lithium-ion battery packs. It provides advanced protection features including overcharge, over-discharge, overcurrent, and short circuit protection. With built-in cell balancing and a common port design, it ensures uniform charging and discharging across all cells, improving battery efficiency and lifespan. This BMS is ideal for high-current applications such as electric vehicles, energy storage systems, and power tools.

(Common Port) = Same terminal used for BOTH charging and discharging

Features:

1. Designed for 7S lithium ion NMC battery packs
2. Supports high current up to 80A for heavy load applications
3. Built in cell balancing for improved battery life
4. Common port design for combined charging and discharging
5. Provides overcharge, over discharge and short circuit protection
6. Overcurrent protection for safe battery operation
7. Stable and reliable performance under load
8. Compact design for easy installation

Specifications:

1. Product Type: Battery Management System
2. Battery Type: Lithium Ion NMC
3. Series Configuration: 7S
4. Nominal Voltage: 24V
5. Max Continuous Current: 80A
6. Balancing Function: Yes
7. Balancing Current: 40mA to 60mA
8. Overcharge Protection Voltage: 4.25V ±0.05V per cell
9. Over Discharge Protection Voltage: 2.7V ±0.1V per cell
10. Overcurrent Protection: Yes
11. Short Circuit Protection: Yes
12. Port Type: Common Port

Applications:

• Lithium ion battery pack protection systems
• Electric vehicles and e bikes battery management
• Solar energy storage and backup systems
• Power tools and high current battery packs
• DIY battery pack building and repair
• Industrial battery management systems

Also Check This Out:-

13S 48V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Package Includes:

1 × 7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
