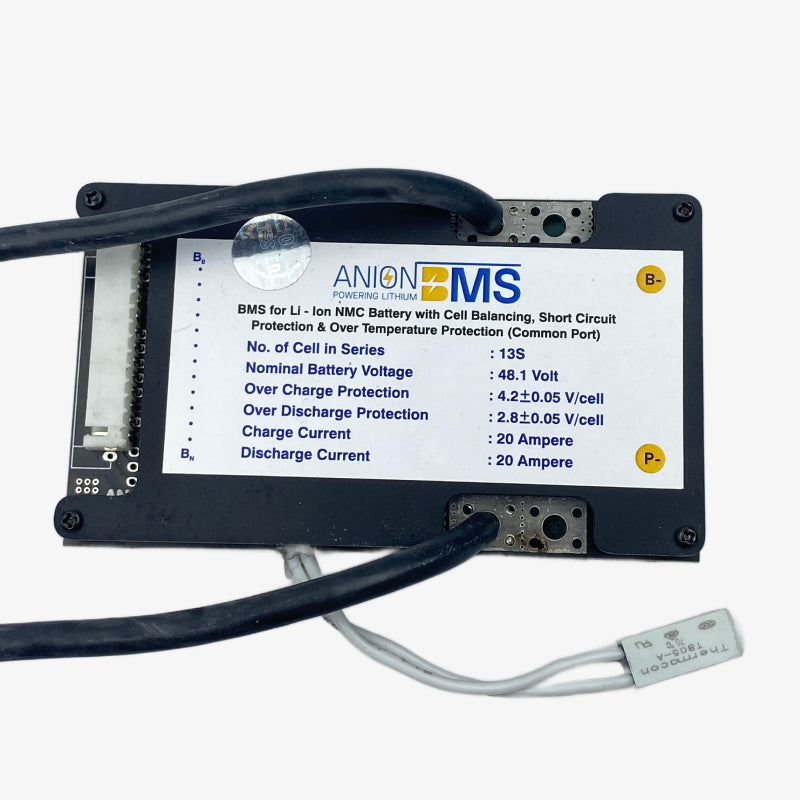

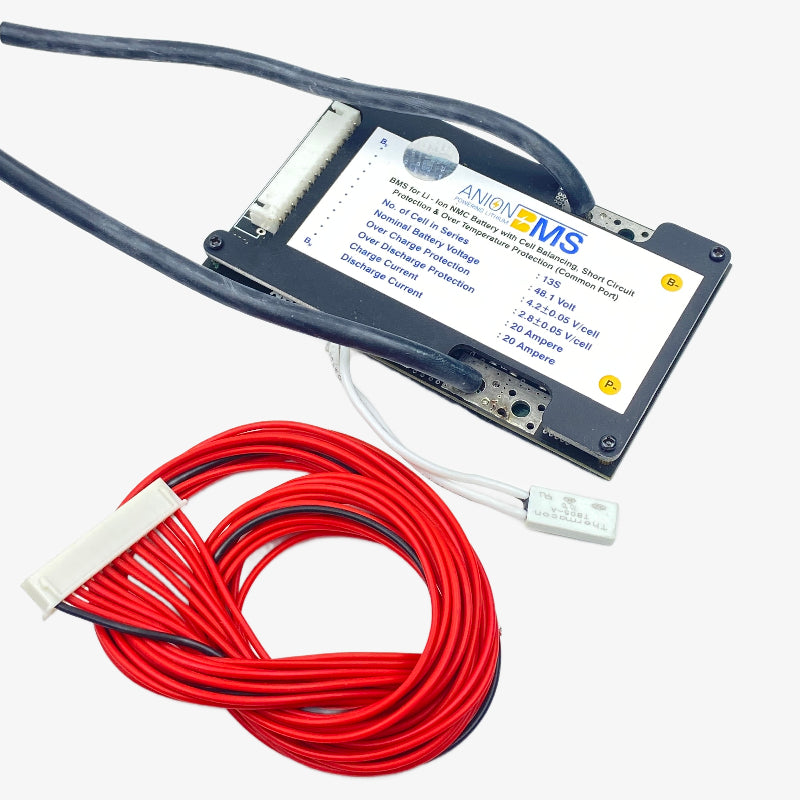

13S 48V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

13S 48V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port) is a reliable battery management system designed to protect and optimize 13 series lithium-ion battery packs. It provides essential protection features including overcharge, over-discharge, overcurrent, and short circuit protection. With built-in cell balancing and a common port design, it ensures uniform charging and discharging of all cells, improving battery performance and lifespan. This BMS is suitable for electric bikes, energy storage systems, and medium power battery applications.

(Common Port) = Same terminal used for BOTH charging and discharging

Features:

1. Designed for 13S lithium ion NMC battery packs
2. Supports current up to 20A for medium load applications
3. Built in cell balancing for improved battery lifespan
4. Common port design for combined charge and discharge
5. Provides overcharge, over discharge and short circuit protection
6. Overcurrent protection for safe battery operation
7. Stable and reliable performance
8. Compact design for easy integration

Specifications:

• Product Type: Battery Management System
• Battery Type: Lithium Ion NMC
• Series Configuration: 13S
• Nominal Voltage: 48V
• Max Continuous Current: 20A
• Balancing Function: Yes
• Balancing Current: 40mA to 60mA
• Overcharge Protection Voltage: 4.25V ±0.05V per cell
• Over Discharge Protection Voltage: 2.7V ±0.1V per cell
• Overcurrent Protection: Yes
• Short Circuit Protection: Yes
• Port Type: Common Port

Applications:

• Lithium ion battery pack protection systems
• Electric bikes and mobility battery management
• Solar energy storage and backup systems
• Power tools and medium current battery packs
• DIY battery pack building and repair
• Industrial battery management systems

Also Check This Out:-

10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Package Includes:

1 × 13S 48V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
