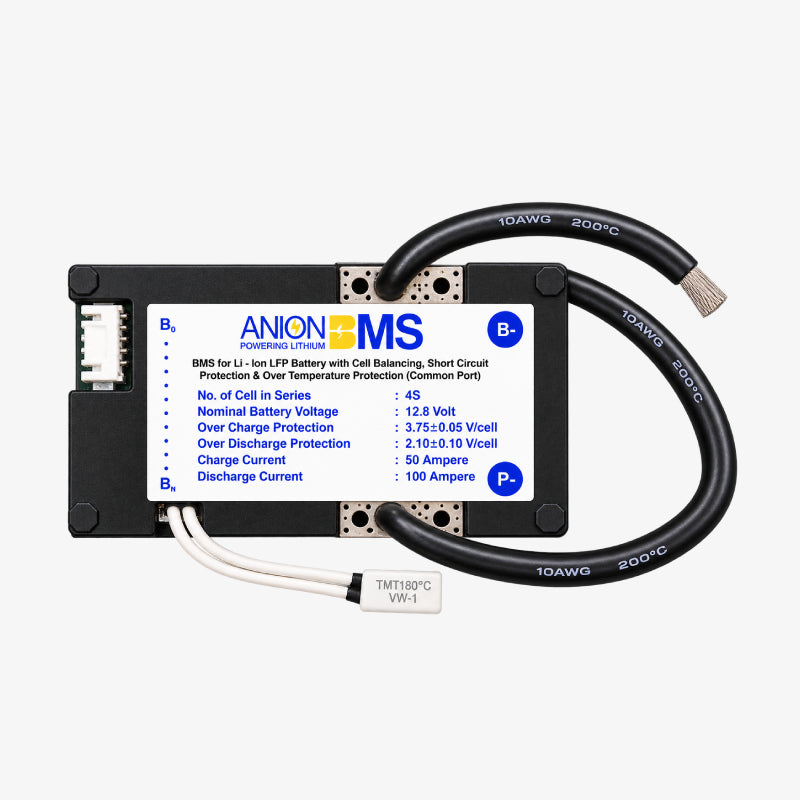

4S 12.8V 100A BMS for Lithium Ion LFP Battery With Cell Balancing (Common Port)

4S 50A Charging / 100A Discharging LiFePO4 BMS – 12.8V Battery Protection Board with Cell Balancing and Common Port is designed to manage and protect four-cell series-connected lithium iron phosphate (LiFePO4/LFP) battery packs. It supports a nominal battery voltage of 12.8V, a maximum charging current of 50A, and a maximum discharging current of 100A. The integrated protection circuitry helps safeguard the battery pack against overcharging, over-discharging, excessive current, and short circuits. Its cell-balancing function helps maintain voltage consistency across series-connected cells, while the common-port configuration uses a shared connection for charging and discharging.

Features:

1. Designed for 4S lithium iron phosphate battery packs
2. Supports 12.8V nominal battery voltage
3. Maximum charging current of 50A
4. Maximum discharging current of 100A
5. Integrated cell-balancing function
6. Common-port configuration for charging and discharging
7. Overcharge protection
8. Over-discharge protection
9. Overcurrent protection
10. Short-circuit protection
11. Designed for four series-connected 3.2V nominal LiFePO4 cells
12. Compact circuit-board design for battery pack integration
13. Suitable for compatible solar storage, backup power, and DC power applications

Specifications:

Also Check These Products:-

10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Package Includes:

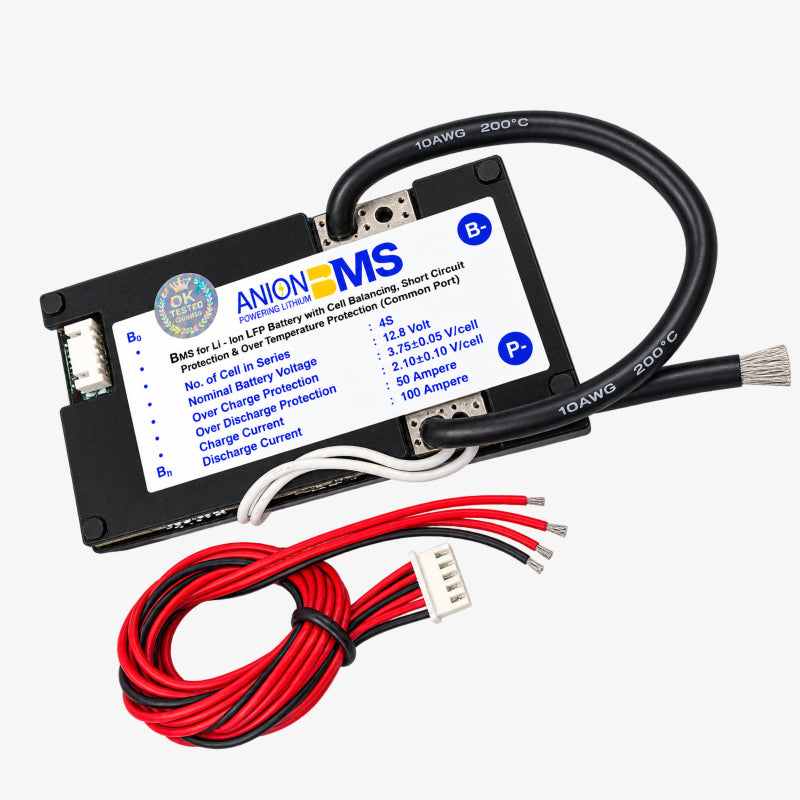

1 × 4S 12.8V 50A Charging / 100A Discharging LiFePO4 BMS with Cell Balancing
