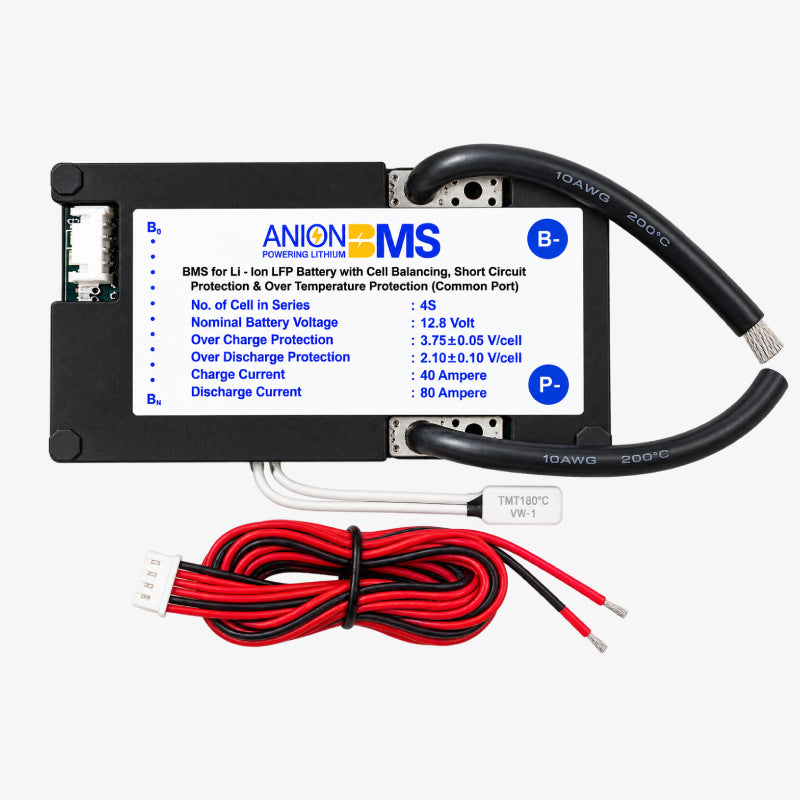

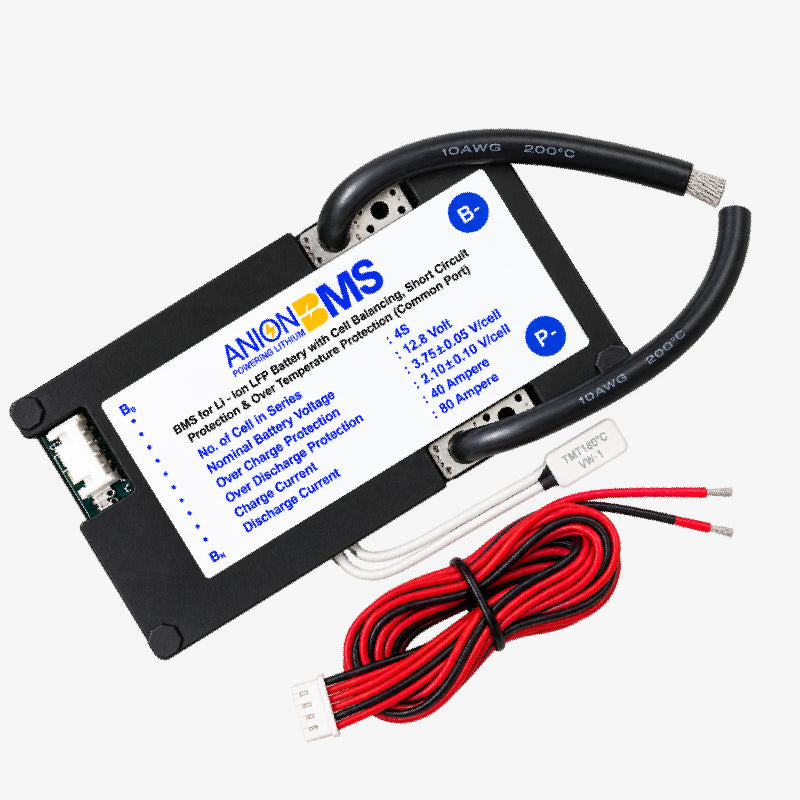

4S 40A Charging / 80A Discharging LiFePO4 BMS – 12.8V Battery Protection Board with Cell Balancing and Common Port is designed to manage and protect four-cell series-connected lithium iron phosphate (LiFePO4/LFP) battery packs. It supports a nominal battery voltage of 12.8V, a maximum charging current of 40A, and a maximum discharging current of 80A. The integrated protection circuitry helps safeguard the battery pack against overcharging, over-discharging, overcurrent, and short circuits. Its cell-balancing function helps maintain voltage consistency across series-connected cells, while the common-port configuration uses a shared connection for charging and discharging.
| Specification | Value |
|---|---|
| Product Type | Battery Management System (BMS) |
| Battery Chemistry | LiFePO4 / LFP |
| Cell Configuration | 4S |
| Nominal Cell Voltage | 3.2V |
| Nominal Battery Voltage | 12.8V |
| Maximum Charging Voltage | 14.6V |
| Maximum Charging Current | 40A |
| Maximum Discharging Current | 80A |
| Port Configuration | Common port |
| Cell Balancing | Supported |
| Overcharge Protection | Yes |
| Over-discharge Protection | Yes |
| Overcurrent Protection | Yes |
| Short-Circuit Protection | Yes |
| Charging Connection | Common port |
| Discharging Connection | Common port |
| Applications | LiFePO4 battery packs, solar storage, backup power, and portable DC systems |
10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
1 × 4S 12.8V 40A Charging / 80A Discharging LiFePO4 BMS with Cell Balancing
