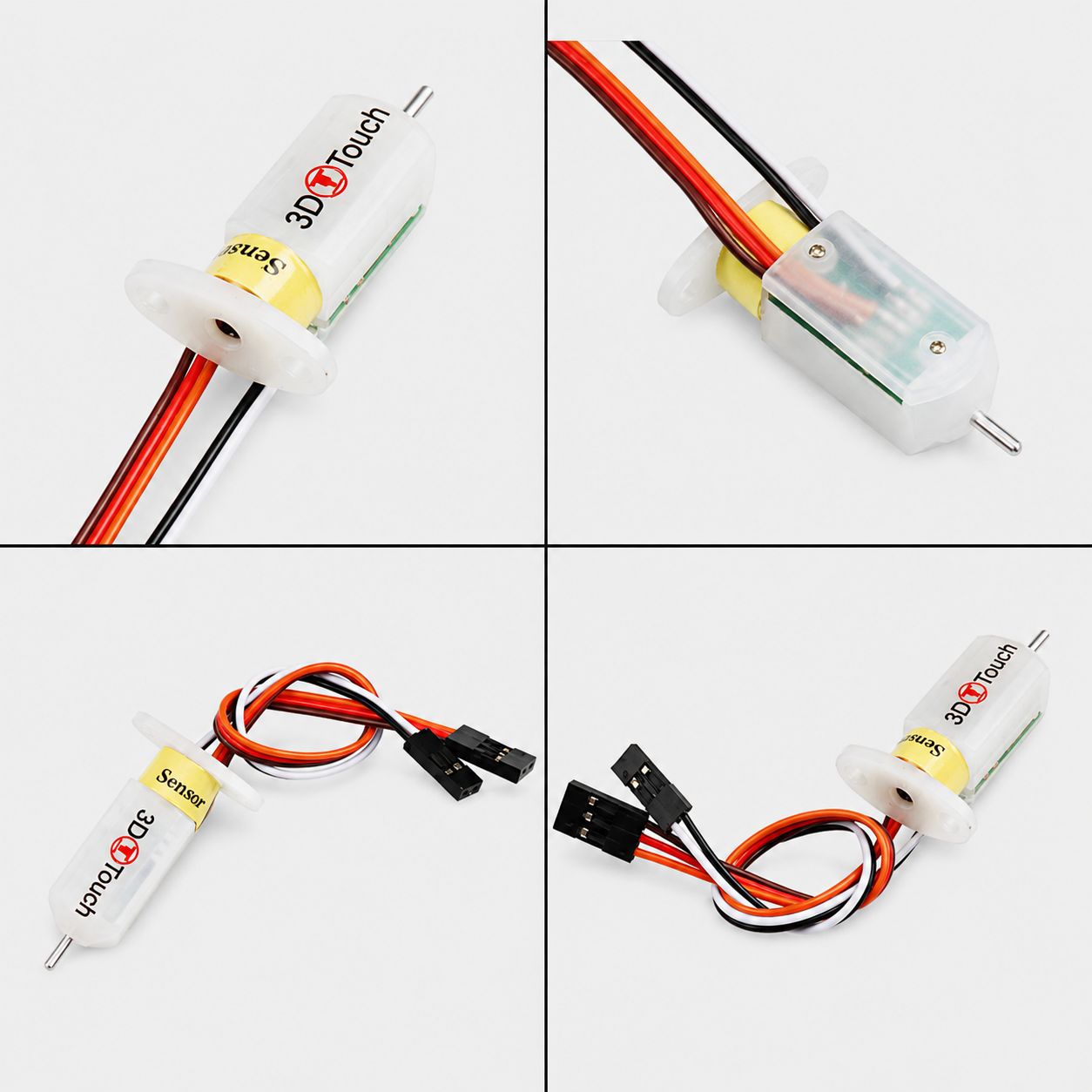

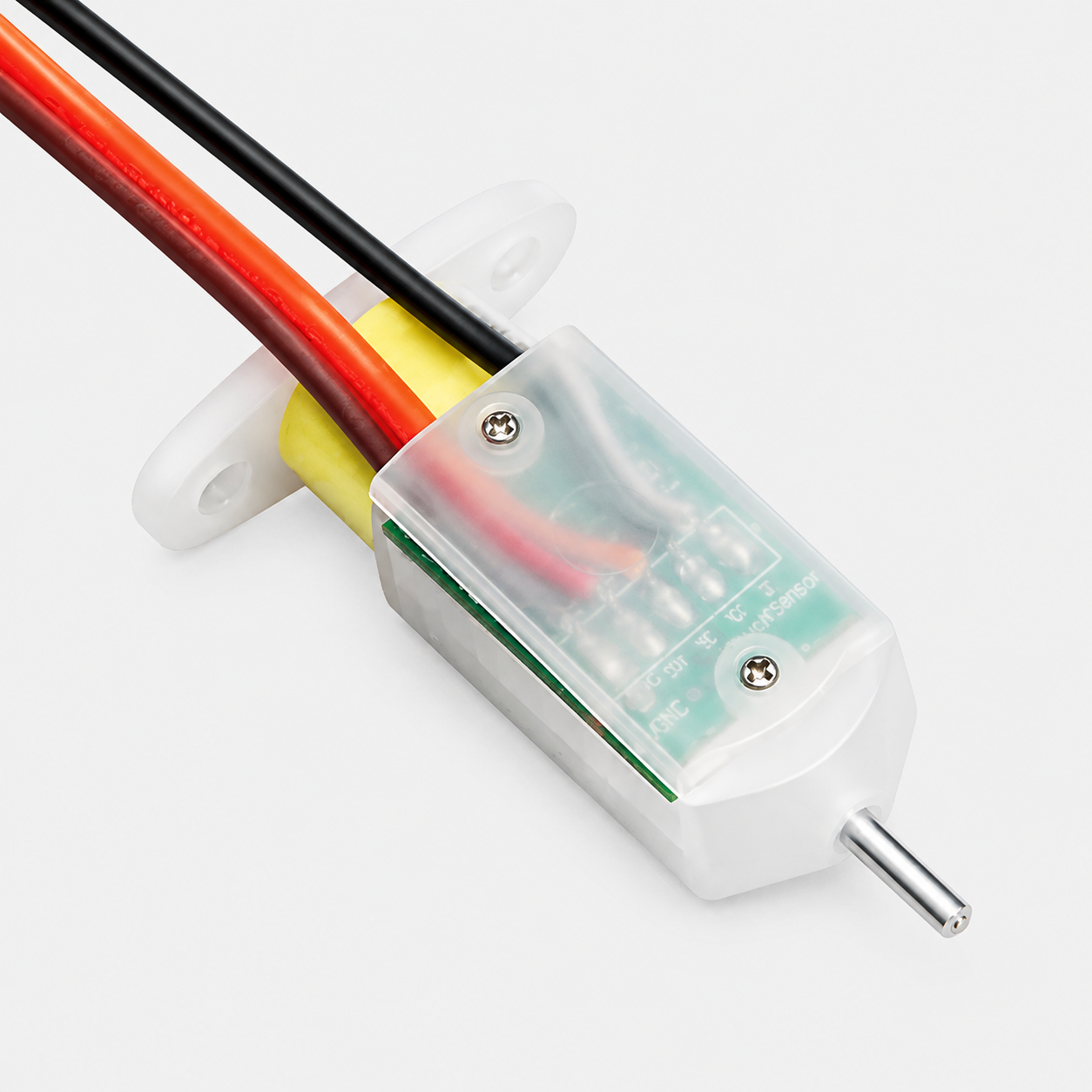

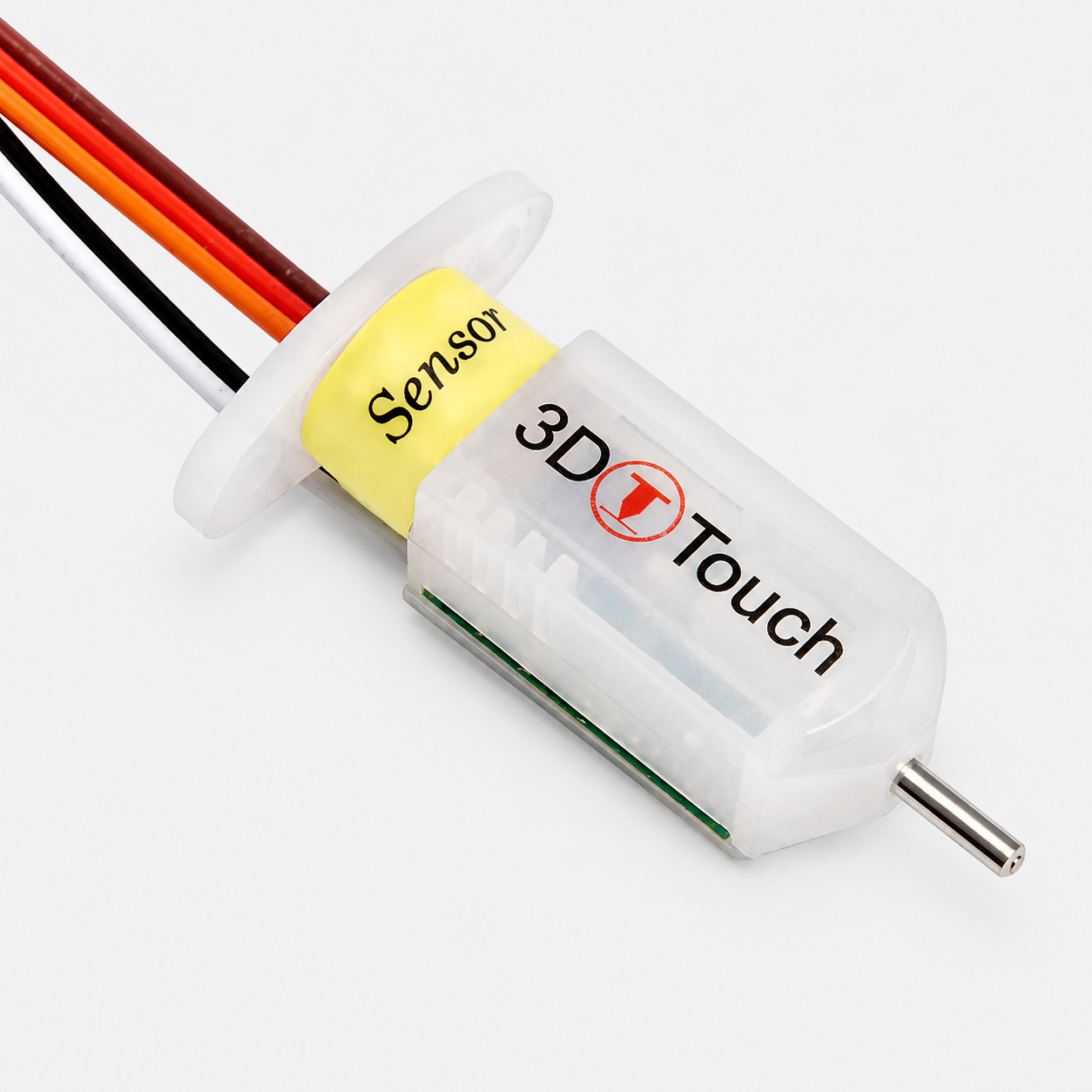

3D Touch Auto Bed Leveling Sensor is a high-precision automatic bed leveling sensor designed to improve first-layer adhesion and printing accuracy. It uses Hall-effect sensing technology with a retractable probe to measure multiple points across the print bed and automatically compensates for surface irregularities. Compatible with most open-source 3D printers and BLTouch-supported firmware, it provides reliable, repeatable, and accurate bed leveling for consistent print quality.
| Parameter | Value |
|---|---|
| Product Type | Automatic Bed Leveling Sensor |
| Sensor Technology | Hall Effect Sensor with Solenoid |
| Operating Voltage | 4.8V – 5.1V DC |
| Logic Voltage | 3.3V / 5V Compatible |
| Typical Operating Current | 15mA |
| Peak Current | 300mA |
| Probe Repeatability | ≤0.005mm |
| Measurement Accuracy | ±0.005mm |
| Probe Stroke | 5.6 – 6.6mm |
| Trigger Method | Mechanical Retractable Probe |
| Probe Output | Open Drain (Logic Free) / 5V Logic |
| Maximum Output Voltage (VDS) | 5V |
| Maximum Output Current (ID) | 300mA |
| Control Signal | PWM Servo Signal |
| Servo Signal Range | 650µs – 2190µs |
| Interface | 5-Pin Connector |
| Wiring | 3-Pin Servo + 2-Pin Z-Min |
| Servo Pinout | Brown (GND), Red (+5V), Orange (Control) |
| Z-Min Pinout | Black (GND), White (Signal) |
| LED Indicator | Self-Test / Status LED |
| Housing Material | Polycarbonate (PC) |
| Probe Pin Material | Engineering Plastic |
| PCB Finish | Lead-Free SMT |
| Cable Length | 150mm (Probe Cable) |
| Extension Cable Length | Approximately 1m (Version Dependent) |
| Mounting Type | Standard BLTouch / 3D Touch Mount |
| Firmware Support | Marlin, Klipper, Repetier, Smoothieware |
| Mainboard Compatibility | RAMPS, SKR, MKS, Duet, Creality, BTT and other BLTouch-compatible boards |
| Printer Compatibility | Ender Series, CR Series, Prusa i3, Voron, Anycubic, Anet, BIQU and other FDM 3D Printers |
| Supported Bed Materials | Glass, PEI, Magnetic Sheet, Steel, Aluminum, BuildTak, Wood and Composite Surfaces |
| Functions | Auto Bed Leveling, Self-Test, Alarm Release, Touch Mode, Probe Deploy & Retract |
| Operating Temperature | -10°C to +60°C |
| Weight | Approximately 10g |
