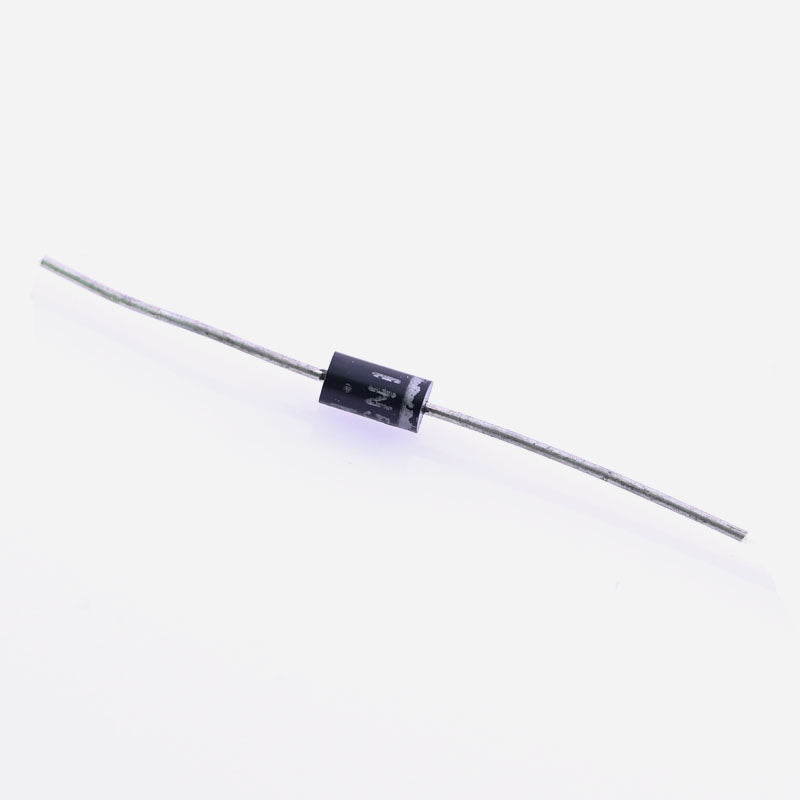

1N5819 Schottky Barrier Diode 1N5819 Schottky Barrier Diode

QC0367

20 In stock

Rs. 4.00
-
+
Rs. 4.00
(inc. GST)

Schottky diodes have low forward voltage drop and fast switching speeds compared with a rectifier diode. Because of its high switching speed it is commonly used in Inverters and DC-DC Converters. The downside of the diode is that it has low reverse breakdown voltage. The features of the 1N5819 diode are:

  • Forward Voltage drop: 600mV @ 1A
  • Reverse Voltage: 28V (RMS)
  • Forward Current: 1A
  • Forward surge current: 25A
  • Guard Ring Die Construction for Transient Protection
  • Low Power Loss, High Efficiency
  • High Surge Capability
  • High Current Capability and Low Forward Voltage Drop

1N5819 Diode Applications:

  • Used to prevent reverse polarity problem
  • Used as a protection device
  • Used in Low Voltage High Frequency Inverters
  • Current flow regulators
  • Polarity Protection applications

Schottky diodes have low forward voltage drop and fast switching speeds compared with a rectifier diode. Because of its high switching speed it is commonly used in Inverters and DC-DC Converters. The downside of the diode is that it has low reverse breakdown voltage. The features of the 1N5819 diode are:

  • Forward Voltage drop: 600mV @ 1A
  • Reverse Voltage: 28V (RMS)
  • Forward Current: 1A
  • Forward surge current: 25A
  • Guard Ring Die Construction for Transient Protection
  • Low Power Loss, High Efficiency
  • High Surge Capability
  • High Current Capability and Low Forward Voltage Drop

1N5819 Diode Applications:

  • Used to prevent reverse polarity problem
  • Used as a protection device
  • Used in Low Voltage High Frequency Inverters
  • Current flow regulators
  • Polarity Protection applications
