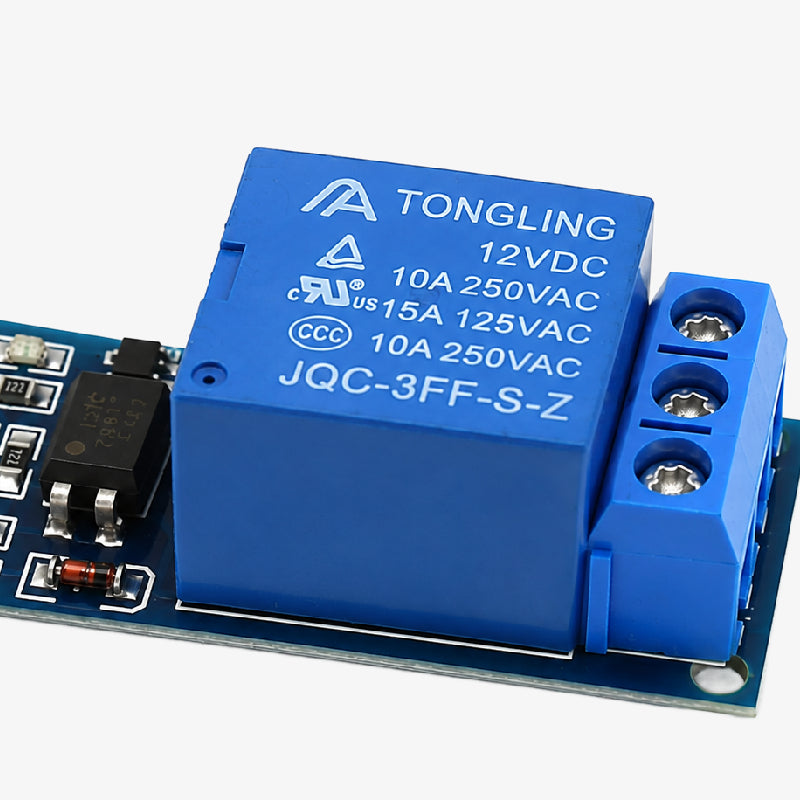

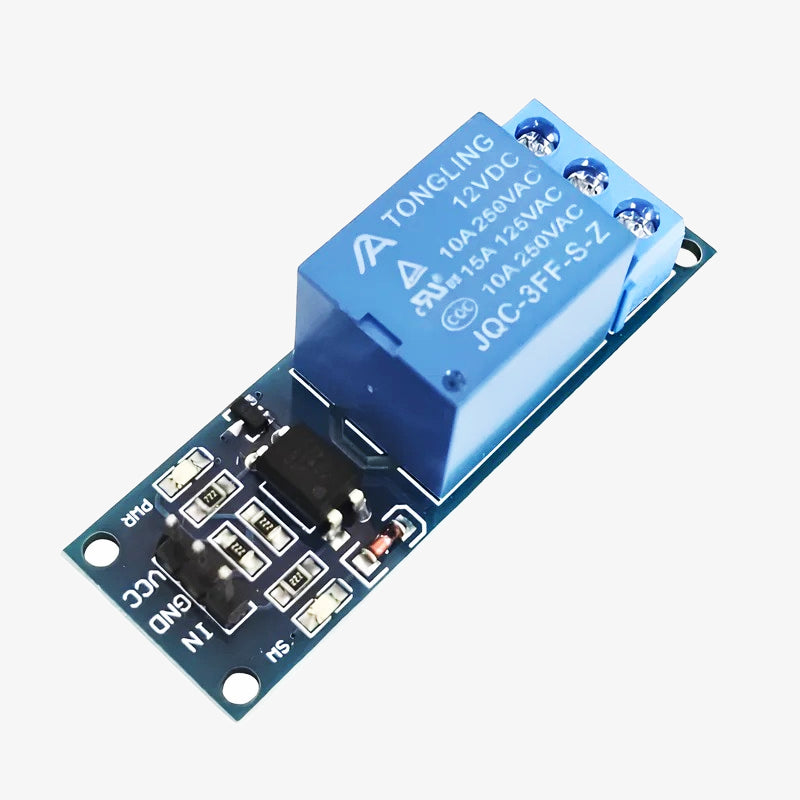

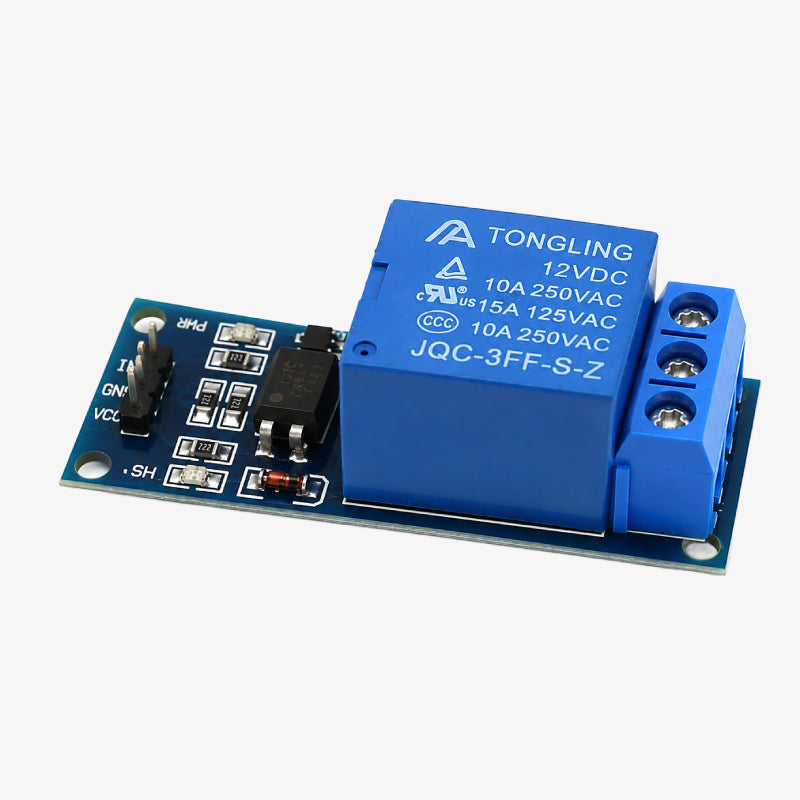

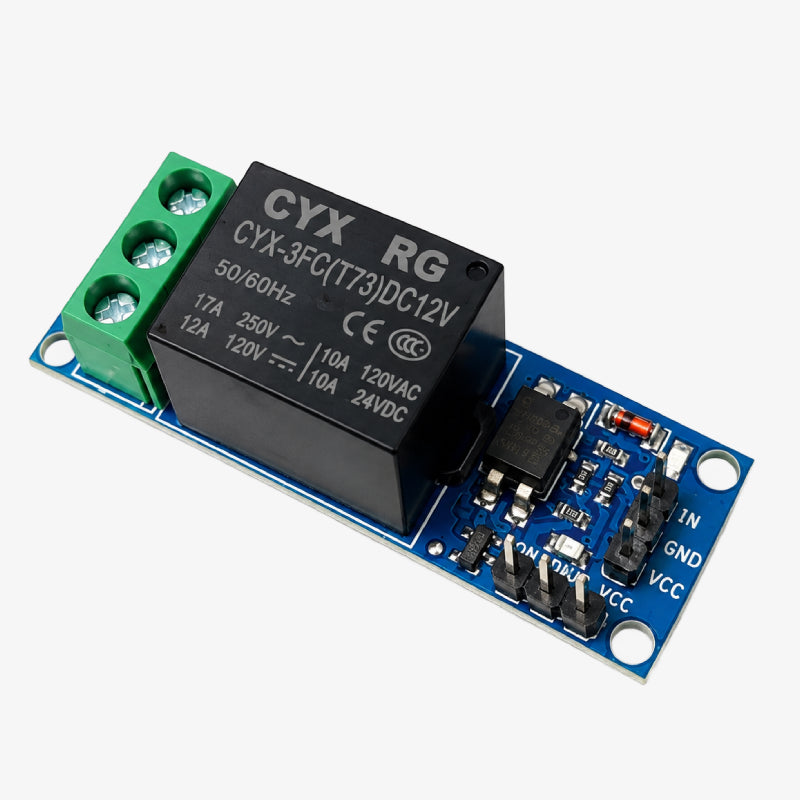

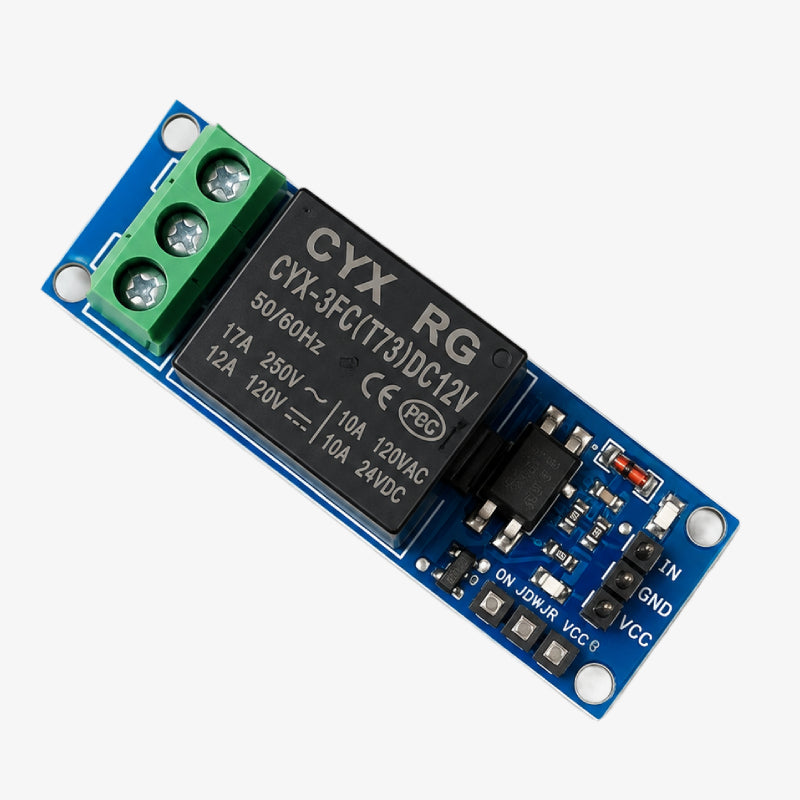

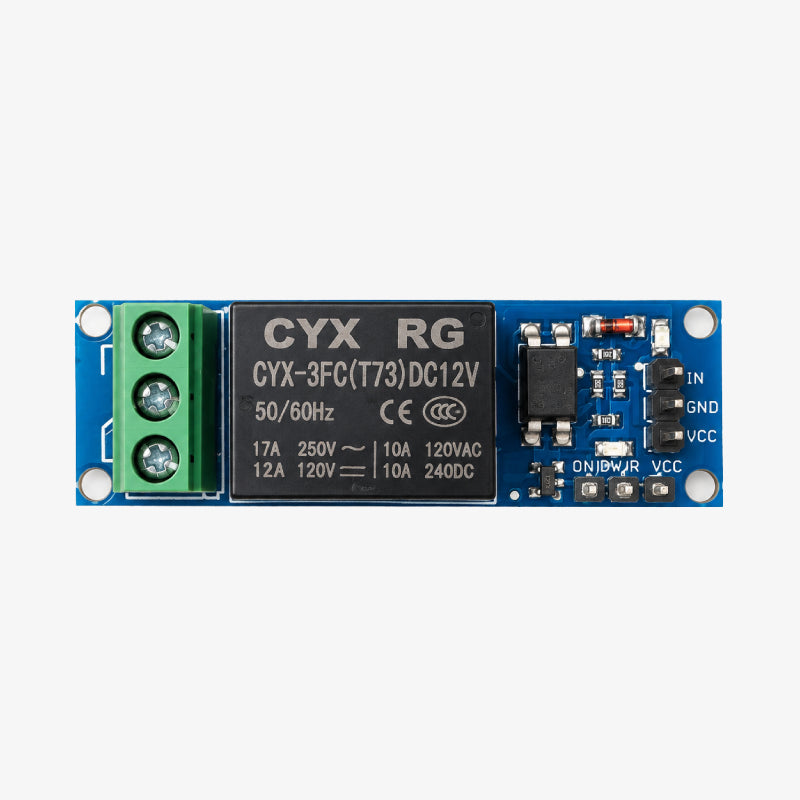

1 Channel 12V 10A Relay Module with Optocoupler
SKU:
MOD-QC5805
Availability:
Out Of Stock
-
- Rs. 66.00
- Unit price
- per
Subtotal:
Rs. 66.00
Description
x1 Channel 12V Relay Module with Optocoupler is designed for reliable switching of AC and DC loads using microcontrollers, PLCs, and embedded systems. Featuring optocoupler isolation, LED status indication, and a high-current relay, it provides safe and efficient control for automation, industrial, and DIY electronics projects.
Features:
- Single Channel Relay Design
- 12V DC Relay Operation
- Optocoupler Isolation Protection
- 10A High Current Switching Capacity
- Compatible with Arduino, Raspberry Pi, and PLC Systems
- LED Status Indicator
- Low Power Control Circuit
- Fast Switching Response
- Compact PCB Design
- Suitable for AC and DC Load Control
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Relay Module |
| Channels | 1 |
| Relay Voltage | 12V DC |
| Trigger Voltage | 12V DC |
| Contact Rating | 10A @ 250V AC |
| Contact Rating (DC) | 10A @ 30V DC |
| Trigger Current | 15 ~ 20mA |
| Optocoupler Isolation | Yes |
| Coil Resistance | 400Ω (Typical) |
| Switching Time | <10ms |
| Operating Temperature | -10°C to +60°C |
| Length | 53 mm |
| Width | 18 mm |
| Height | 18.5 mm |
| Weight | 16 g |
Also Check These:-
12V 8 Channel Relay Module with Optocoupler
4-Channel 12V Relay Module with Optocoupler
PCB For 1 Channel Relay Module with Optocoupler Input
Package Includes:
1 x 1 Channel 12V Relay Module with Optocoupler
