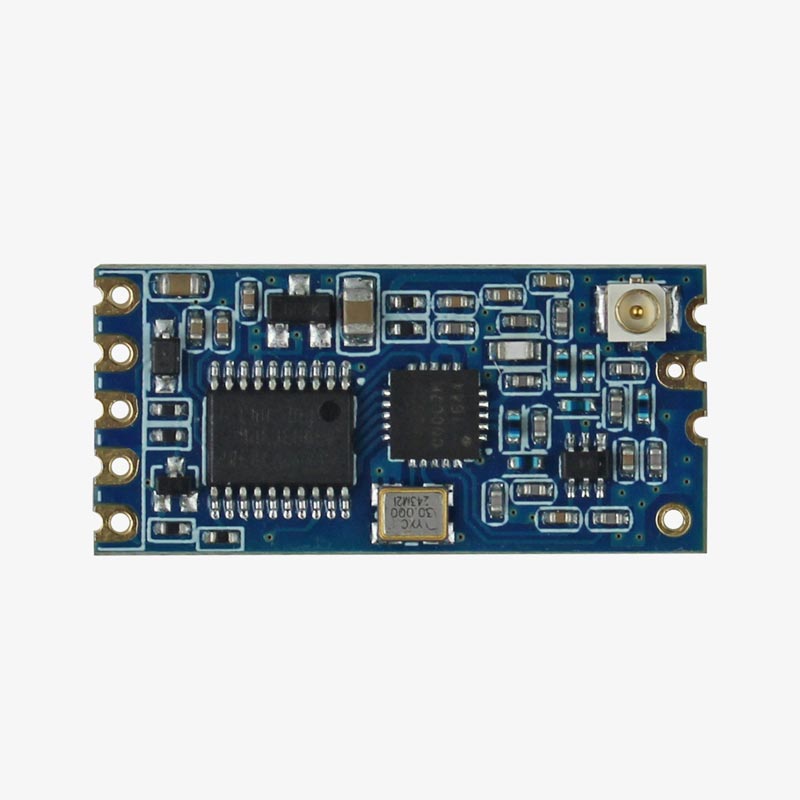

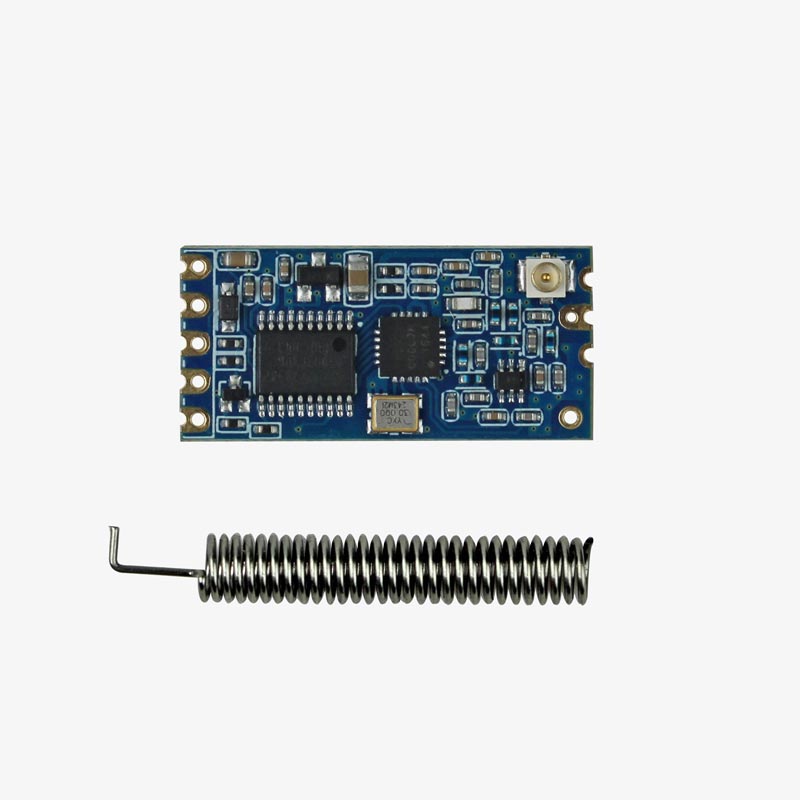

HC12 SI4463 Wireless Serial Port Communication Module 433Mhz
This HC12 SI4463 Wireless Serial Port Communication Module 433Mhz offers reliable, long-range wireless communication in an ultra-compact package. With its 900mW power output and 4-layer PCB, this advanced module allows for reliable, secure data transfer over long distances, with up to 500m+ of coverage. Built-in features such as enhanced frequency hopping, data rate of 250kbps, and CRC error checking help ensure stable, reliable transmission.
Features:- IEEE 802.15.4g compliant
- Frequency range = 119–1050 MHz
- Receive sensitivity = –126 dBm

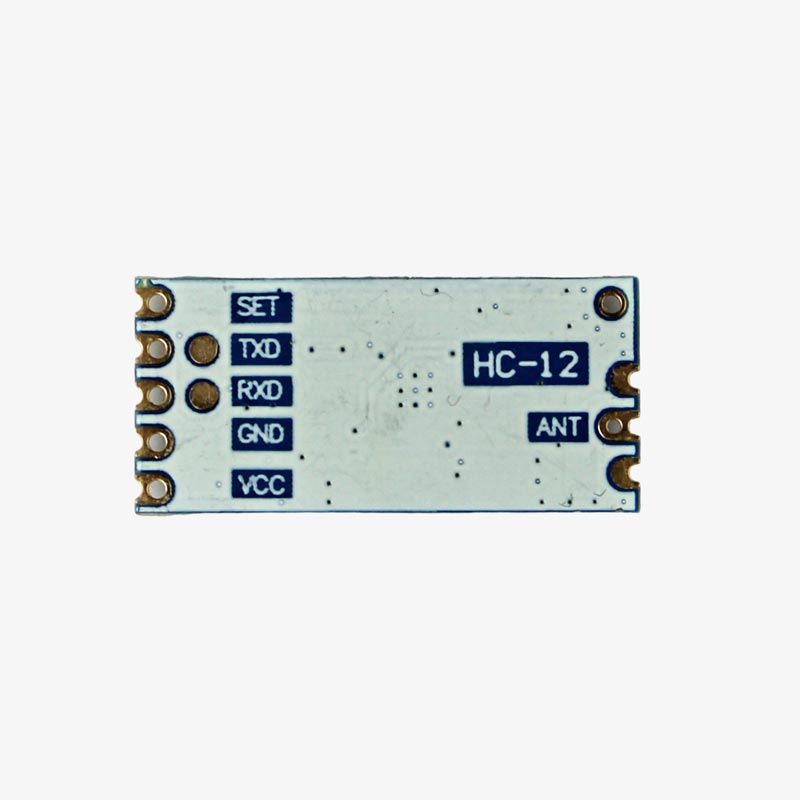

- Serial TTL (RX, TX, GND) interface
- Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
- Max output power +20 dBm
- Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
- Ultra low current powerdown modes 30 nA shutdown, 50 nA standby
- Data rate = 100 bps to 1 Mbps
- Fast wake and hop times
- Highly configurable packet handler
- TX and RX 64 byte FIFOs
- Auto frequency control (AFC)
- Automatic gain control (AGC)
- Low BOM
- Low battery detector
- FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
- ETSI Class-I Operation with SAW
Package Includes:
1 Pc of HC12 SI4463 Wireless Serial Port Communication Module 433Mhz
