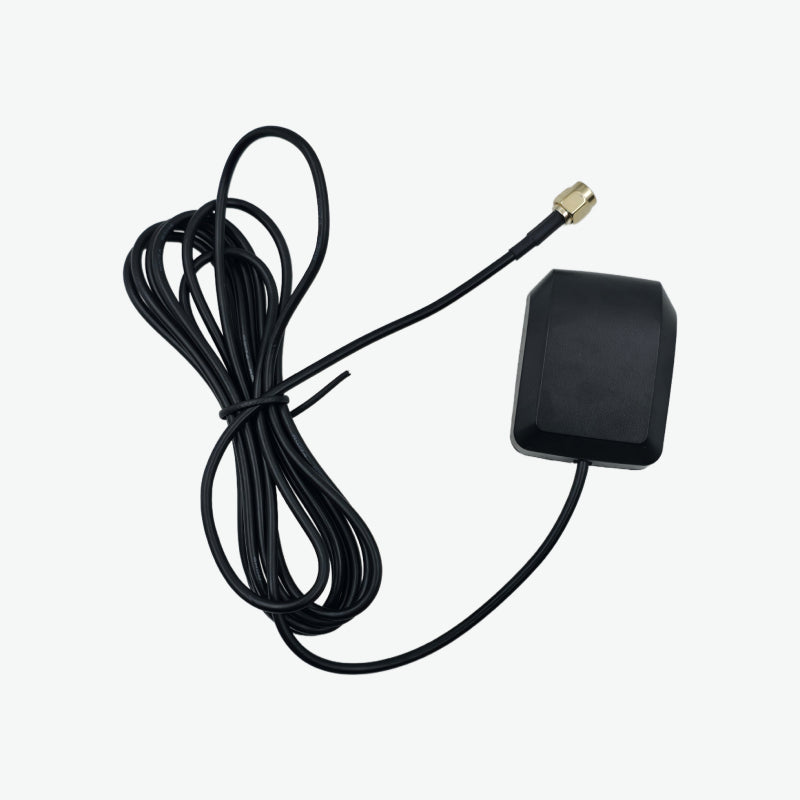

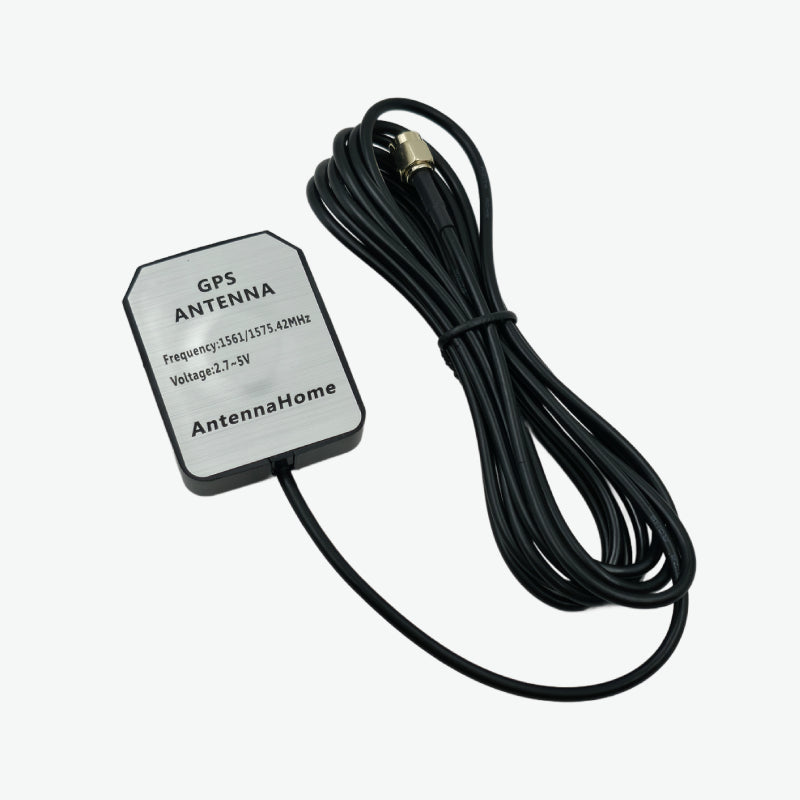

AntennaHome AHGG.101 GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna
The GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna delivers high-gain and precise positioning performance for advanced satellite navigation systems. Designed for stable reception and easy integration, this antenna is ideal for GPS, BeiDou, and GNSS applications requiring reliable signal tracking and consistent performance across diverse environments.
Features:
- Supports GPS (1575.42 MHz) and BeiDou (1561.02 MHz) frequency bands
- RHCP polarization ensures accurate and stable satellite signal reception
- High-gain 28±2dB active performance with 3~5V operation
- Durable ABS housing with integrated SMA-J connector and 2-meter RG-174 cable
Specifications:
- Model: AHGG.101
- Frequency: GPS 1575.42 MHz / BD 1561.02 MHz
- Impedance: 50 Ω
- VSWR: ≤ 2.0
- Gain: 28 ± 2 dB @ 3~5V
- Polarization: RHCP

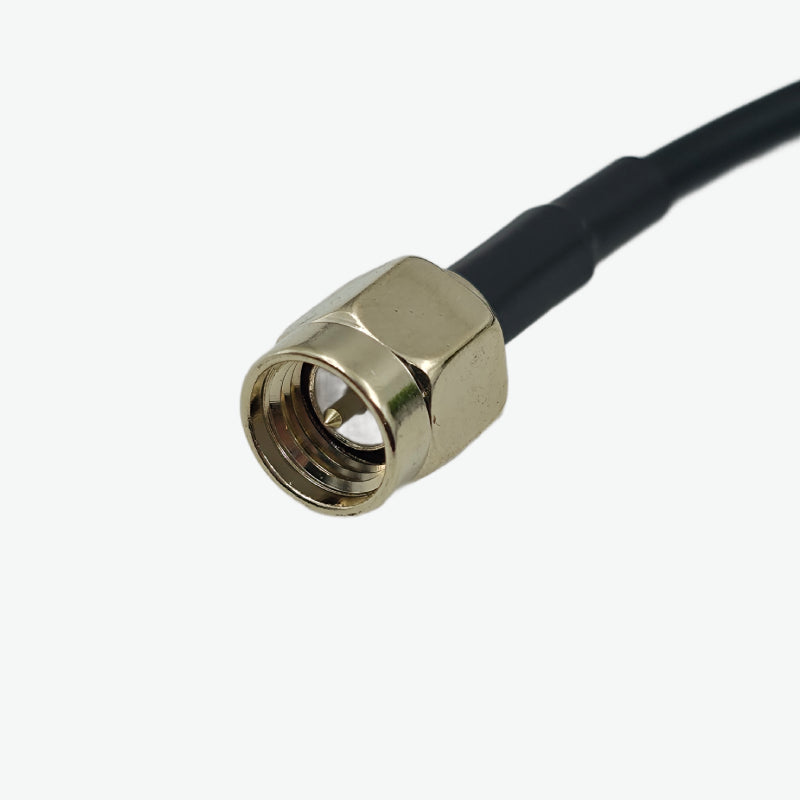

- Connector: SMA-J
- Cable: RG-174, Length = 2000 mm
- Material & Color: Copper / ABS
- Mounting Type: SMA connector
- Size: 48 × 38 × 17 mm
- Weight: 50 g
- Operating Temperature: −40 °C ~ +85 °C
Package Includes:
1 × GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna
