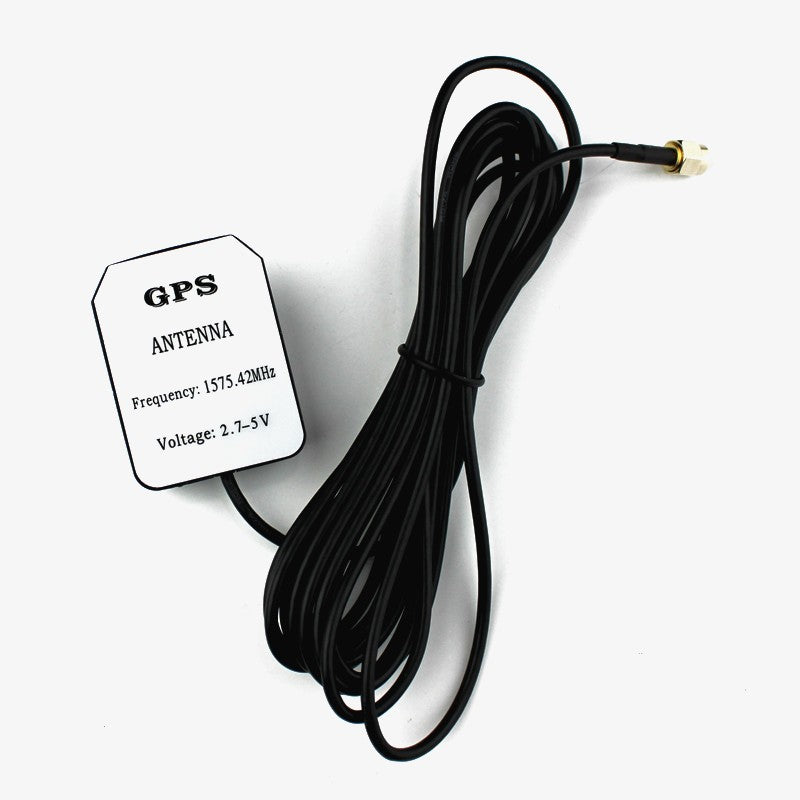

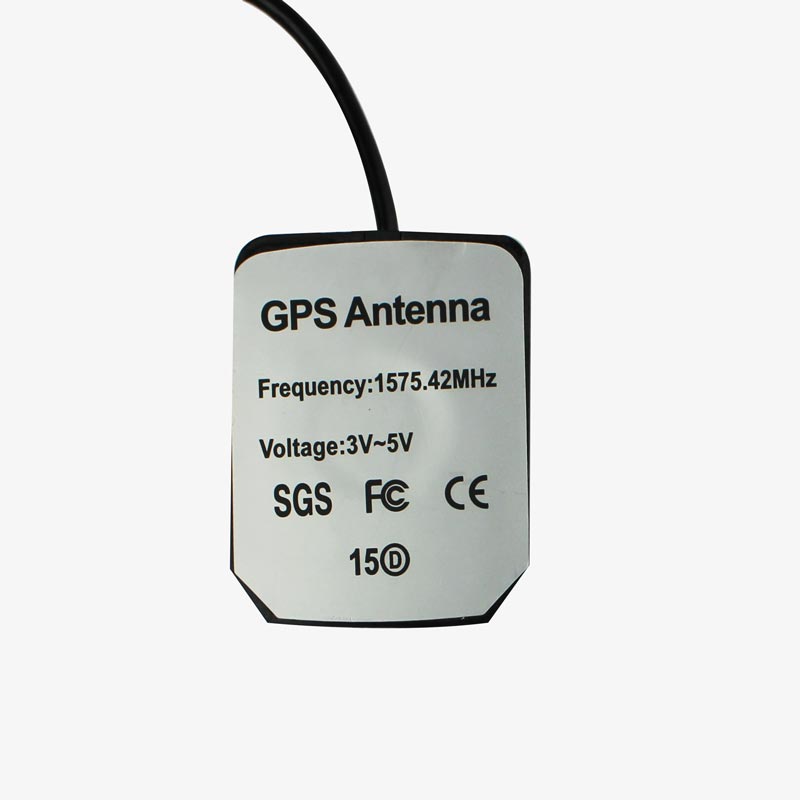

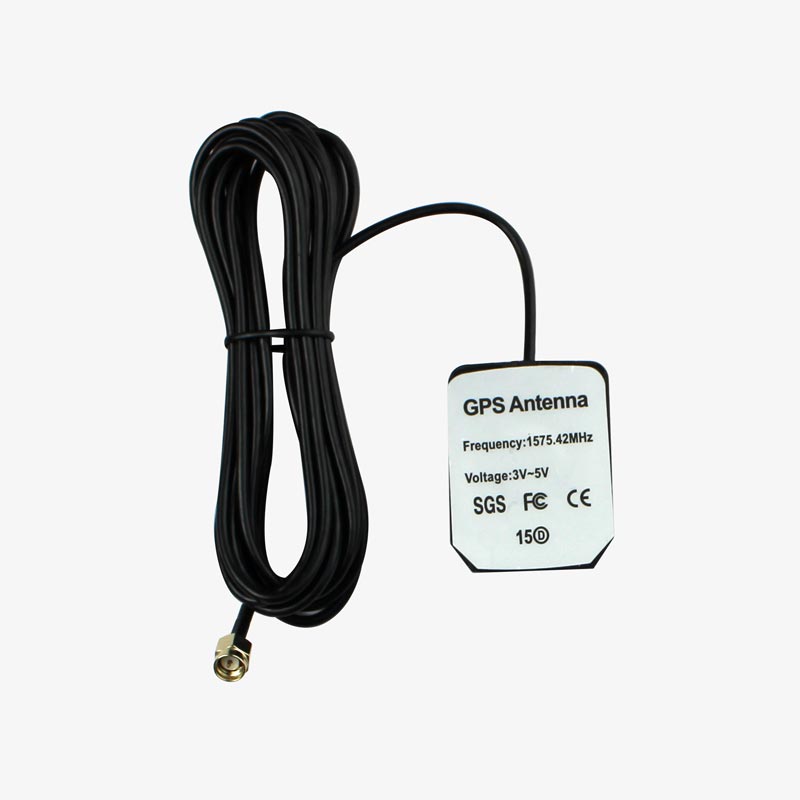

1575 Mhz GPS Antenna for GPS and GSM module
1575 Mhz GPS Antenna
GPS Antenna
GPS Antenna (1575.42 MHz)
Buy GPS Antenna (1575.42 MHz)
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

1575 Mhz GPS Antenna for GPS and GSM module

QC0053
37 In stock
Rs. 158.00 (Exc. GST)
Rs. 158.00

With 3 meters of long cable, this GPS Antenna has a central frequency of 1575.42MHz with a Bandwidth of 9MHz. It is very useful for multiple GPS devices that operate at the same frequency. This GPS antenna module can improve the GPS signal reception performance and thus increase the accuracy of Indoor/Outdoor GPS. Due to long cable, users can place the antenna on the outside of the house as well as outside of the car. It can also be used indoors.

The operational voltage of this antenna is 3V to 5V and provides a gain of 27dB. The Antenna comes in a water-proof design with a cable of 3 meters with a SMA connector making it suitable for rough terrains.

Commonly used with Raspberry Pi GPS HAT or Arduino GPS shield. The antenna also has an internal magnet to allow it to be mounted on metallic surfaces which makes it easy to be placed in different locations.




GPS Antenna Specification:

Operating Frequency  : 1575 ± 5 Mhz

LNA gain(without cable)  : > 28 dBi (with LNA)

Typical noise figure  :  1.5dB

Operating Voltage (VDC)  :  3 ~ 5

Operating Current  :  15mA

Max. GSM Working Frequency   :  824-894/1710-1880 MHz

VAWR  :  2:1

Impedance  :  50 Ohms

Peak gain  :  2dBi at 900mhz,2dBi at 1800mhz

Type  :  Omni-directional polarization, linear polarization

Connector  :  Male SMA

Color  :  Black

Cable Length (Meter)  :  3



GPS Antenna (1575.42 Mhz) Applications:

  • GPS Receptions
  • Tracker devices
  • RPI - GPS Shield
  • Arduino GPS Shield



Example Projects on GPS Antenna (1575.42 Mhz):

GPS Antenna Project

Additional Resources:

Placing GPS Antenna inside of a car

Package Contains

1x GPS Antenna (1575.42 Mhz)
