The Red LED in an SMD (Surface-Mount Device) 0805 package is a compact and efficient light-emitting diode, tailored for a variety of applications requiring bright and reliable red light. The 0805 package, measuring approximately 2.0mm x 1.25mm, offers a slightly larger footprint than the 0603 package, providing enhanced visibility and easier handling during assembly.
Features:
- Compact Size: The 0805 package (2.0mm x 1.25mm) is suitable for space-limited designs while offering easier handling than smaller packages.
- High Brightness: Delivers vivid red light output for high visibility.
- Long Lifespan: Engineered for durability and extended operational life.
- Low Power Consumption: Energy-efficient performance, ideal for battery-powered devices.
- Wide Viewing Angle: Ensures broad and consistent illumination.
- RoHS Compliant: Adheres to environmental safety standards, free from hazardous materials.
Specifications:
- Color: Red
- Wavelength: 620-630 nm
- Forward Voltage (Vf): 1.8V - 2.2V
- Forward Current (If): 20mA (typical)
- Luminous Intensity: 50-150 mcd (millicandela)
- Viewing Angle: 120 degrees
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
Package Includes:

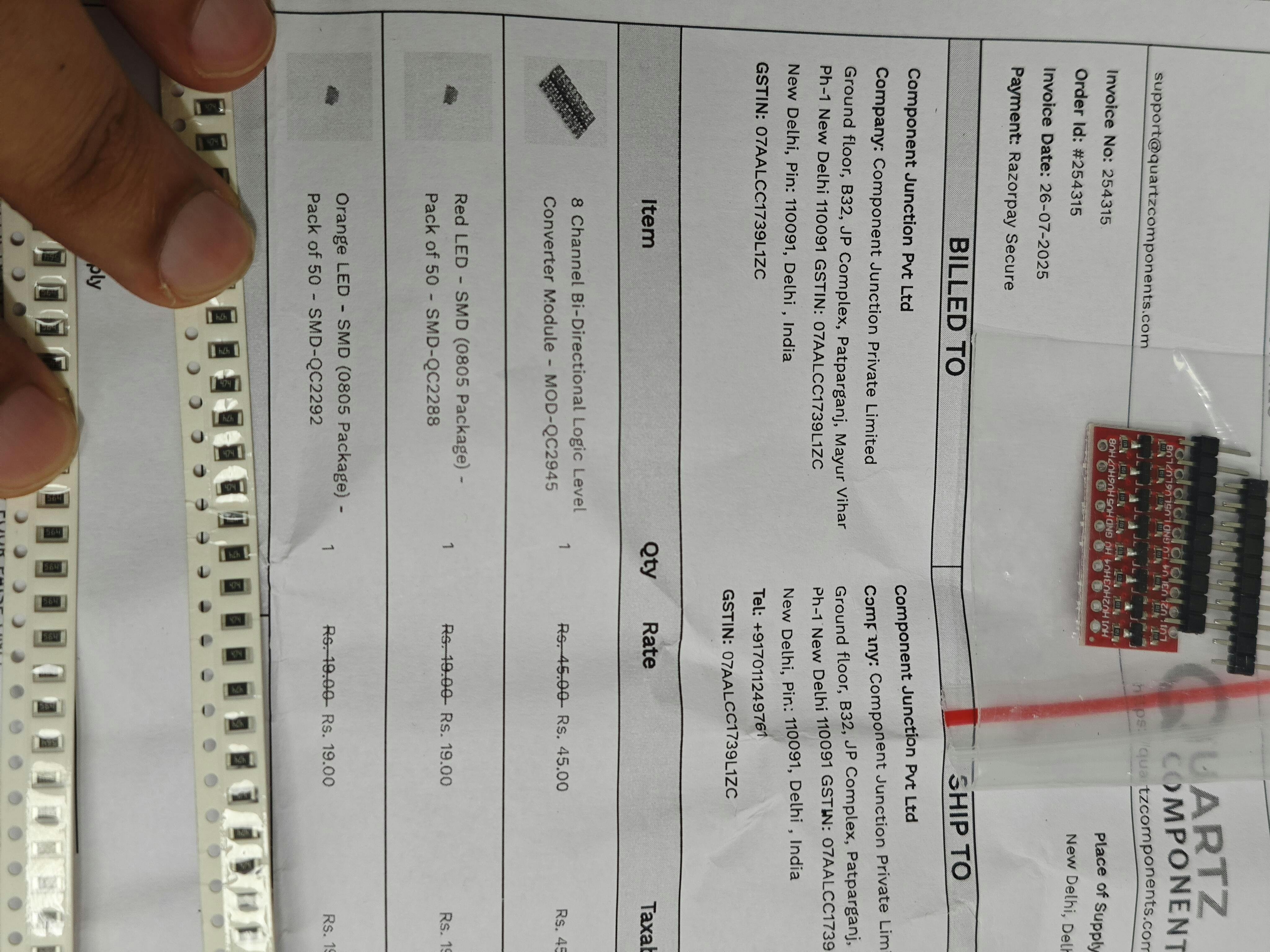

50 x Red LED - SMD (0805 Package)
