It also possesses the low self-heating and does not cause more than 0.1 °C temperature rise in still air. The operating temperature range is from -55°C to 150°C. The output voltage varies by 10mV in response to every °C rise/fall in ambient temperature, i.e., its scale factor is 0.01V/°C.
It is commonly used as a temperature measurement sensors. It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion of Arduino Board, in combination, can be very easy to achieve.
Wiring Instructions:
- “+”: Positive power supply
- “–“: Negative one
- “out”: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure.
Features :
- Based on the semiconductor LM35 temperature sensor
- Useful in detecting ambient air temperature
- Calibrated directly in ° Celsius (Centigrade)
- Linear + 10 mV/°C Scale Factor
- 0.5°C Ensure accuracy (at +25°C)
- Low power consumption, less than 60uA
- Low output impedance, 1mA current through only 0.1Ω
- With screw holes for easy installation and fixed. Aperture 2.6mm
Specifications:
| Operating voltage (v) |
4 ~ 30 V |
| Current Consumption (μA) |
60 |
| Scale Factor |
+10 mV/°C |
| Measuring Accuracy |
0.5°C |
| Operational Temperature (°C) |
−55 ~ +150 |
| Signal Output Type |
Analog |
Package Includes :

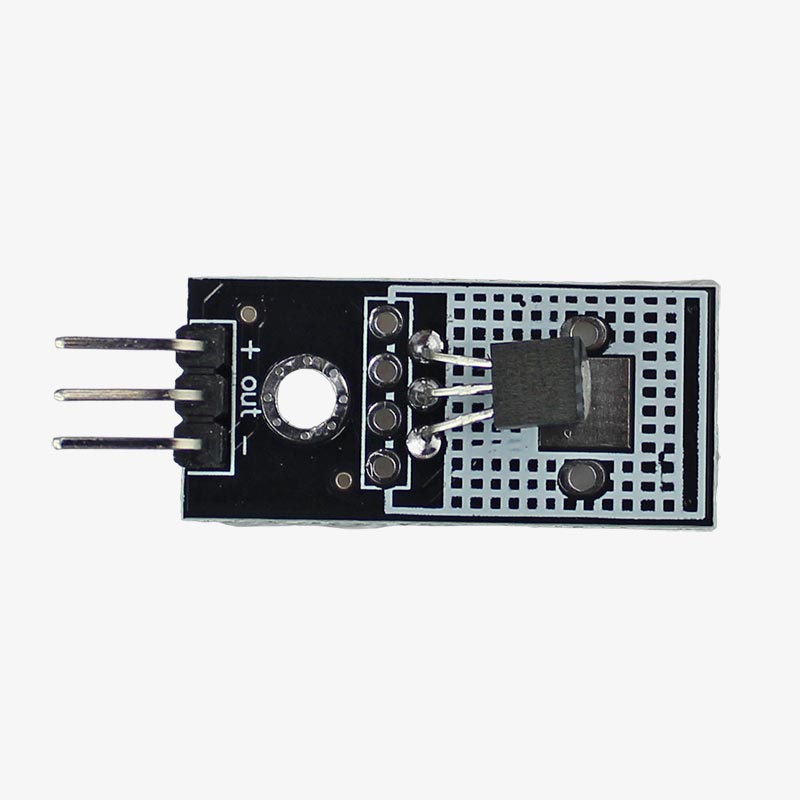

1 x LM35D Analog Temperature Sensor Module.
