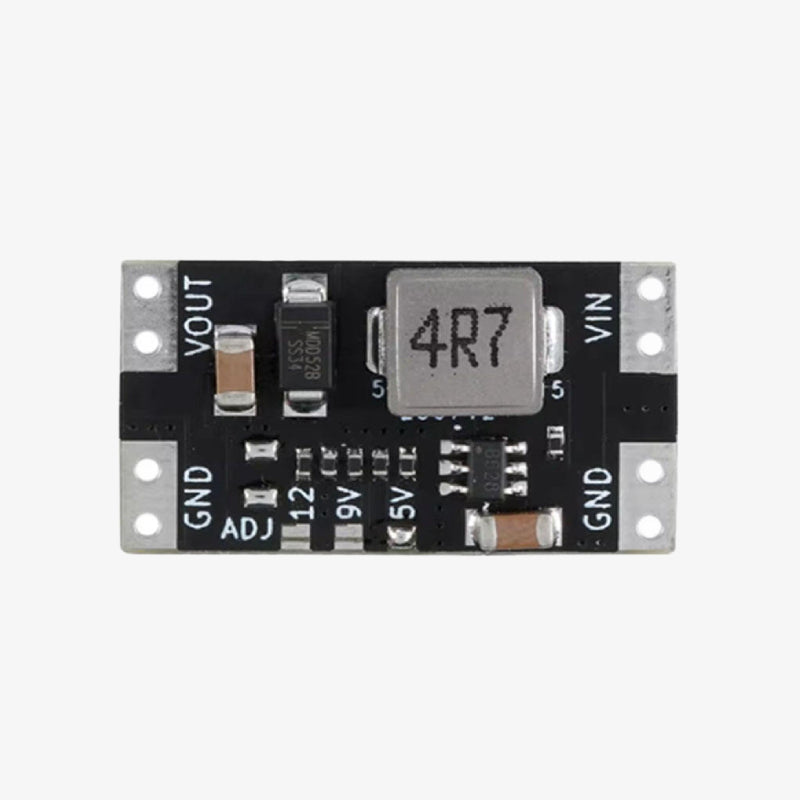

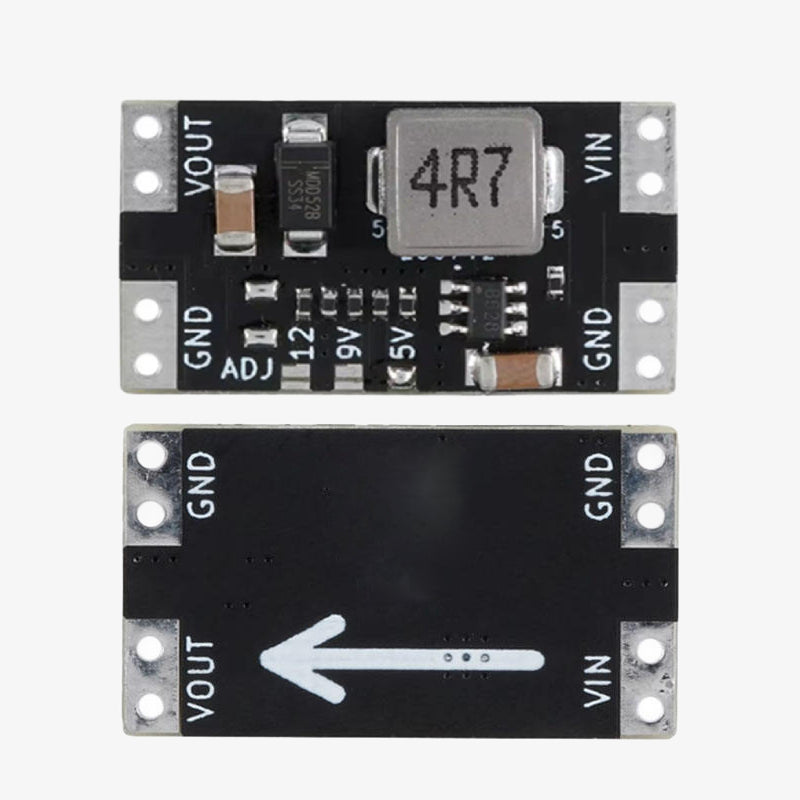

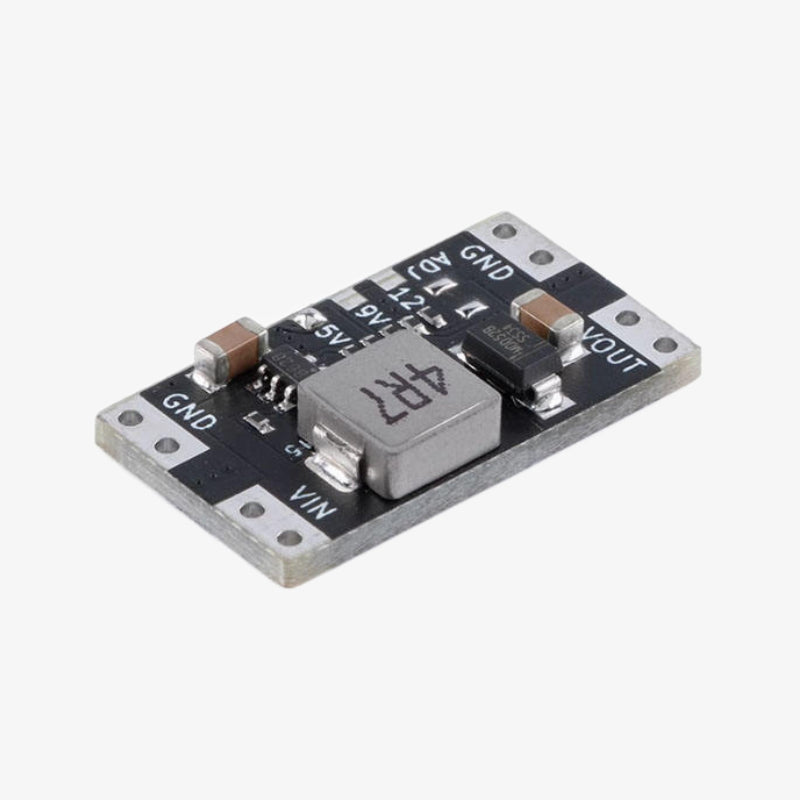

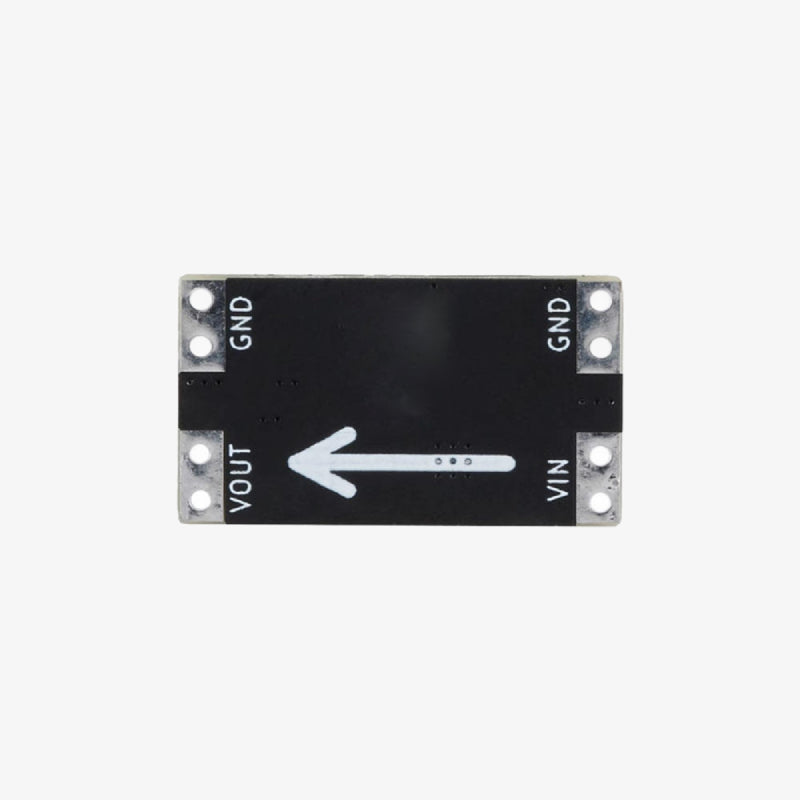

XL3608 Mini Boost Board DC-DC 5V Step-Up Power Module (5V/9V/12V 2A)
The XL3608 Mini Boost Board is a compact and efficient DC-DC step-up converter module designed to increase lower DC input voltages to stable higher output levels. Built around the XL3608 high-efficiency switching regulator, this module supports adjustable output voltage up to 28V with a maximum output current of 2A. Its small footprint and high efficiency make it ideal for battery-powered systems, DIY electronics, portable devices, and power supply projects requiring a stable boost function.
Features:
- High-efficiency XL3608 boost converter IC
- Adjustable DC-DC step-up functionality (output up to 28V)
- Supports common outputs like 5V, 9V, 12V, 15V, and more
- Compact mini module suitable for embedded and portable applications
- Overcurrent and thermal protection built-in
- High switching frequency for reduced ripple and stable output
- Ideal for battery-powered circuits and voltage boosting solutions
Specifications:
- Module Type: DC-DC Step-Up (Boost) Converter
- Chipset: XL3608
- Input Voltage Range: 3.5V – 28V
- Output Voltage Range: Adjustable, 5V – 28V
- Output Current: Up to 2A (peak), 1.2A (stable continuous)
- Efficiency: Up to 94% (depending on input/output configuration)
- Switching Frequency: 1.2 MHz
- Ripple: Low, depending on load and input quality
- Protection Features: Overcurrent, thermal shutdown
- Operating Temperature: –40°C to +85°C
- Dimensions: Mini compact board (varies slightly by batch)
- Applications: Battery boost circuits, portable electronics, DIY projects, sensors, embedded systems
Package Includes:
1 × XL3608 Mini Boost Board DC-DC Step-Up Power Module (5V/9V/12V 2A)
