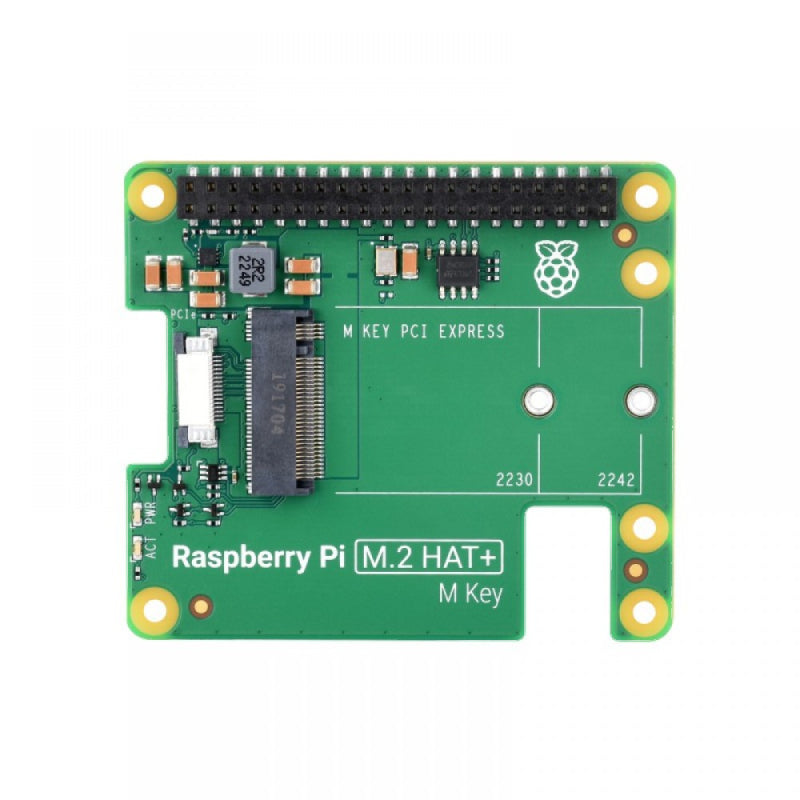

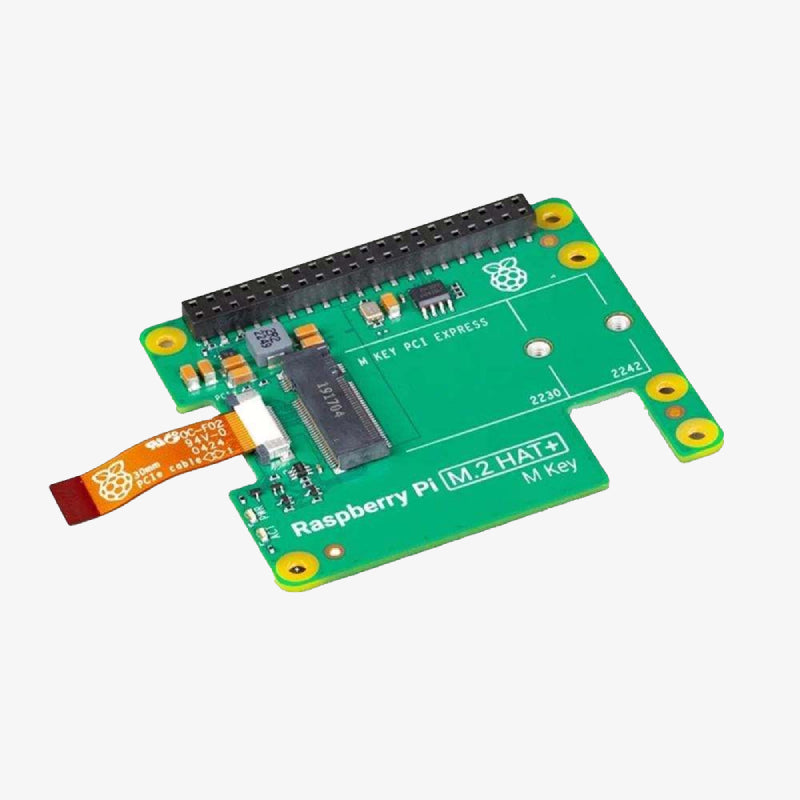

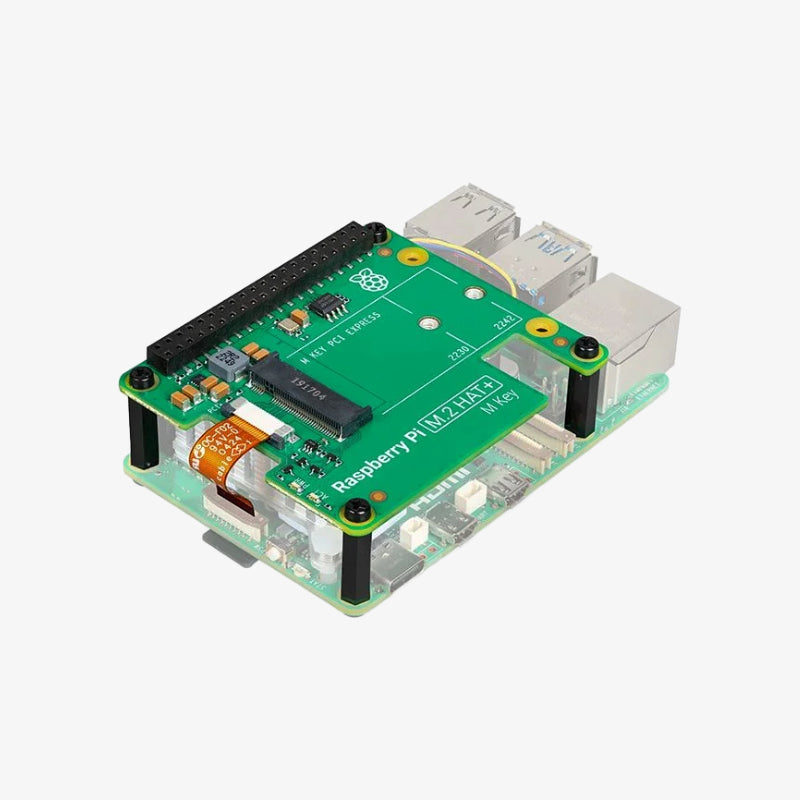

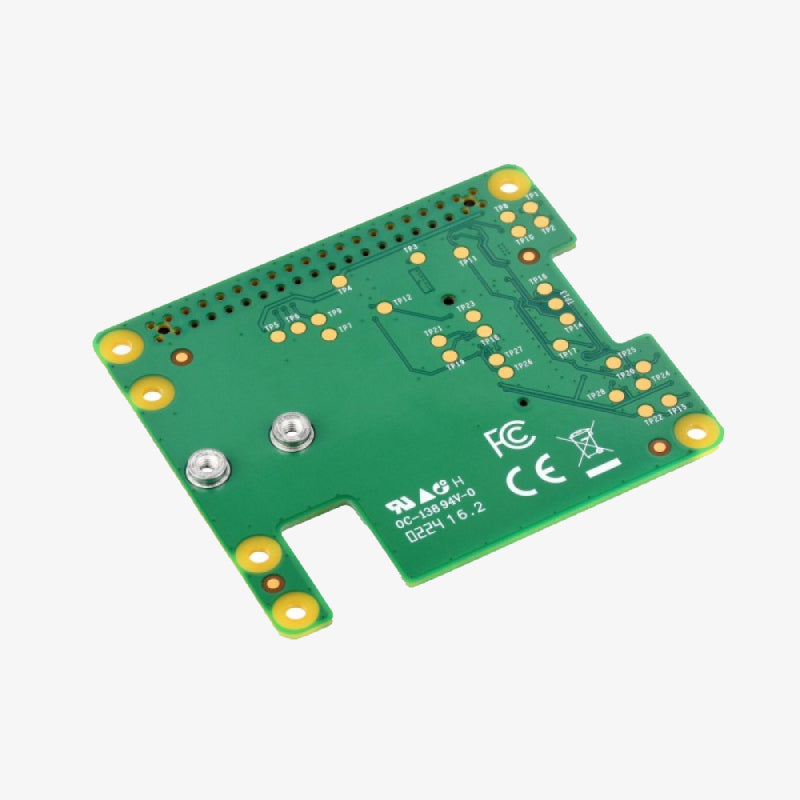

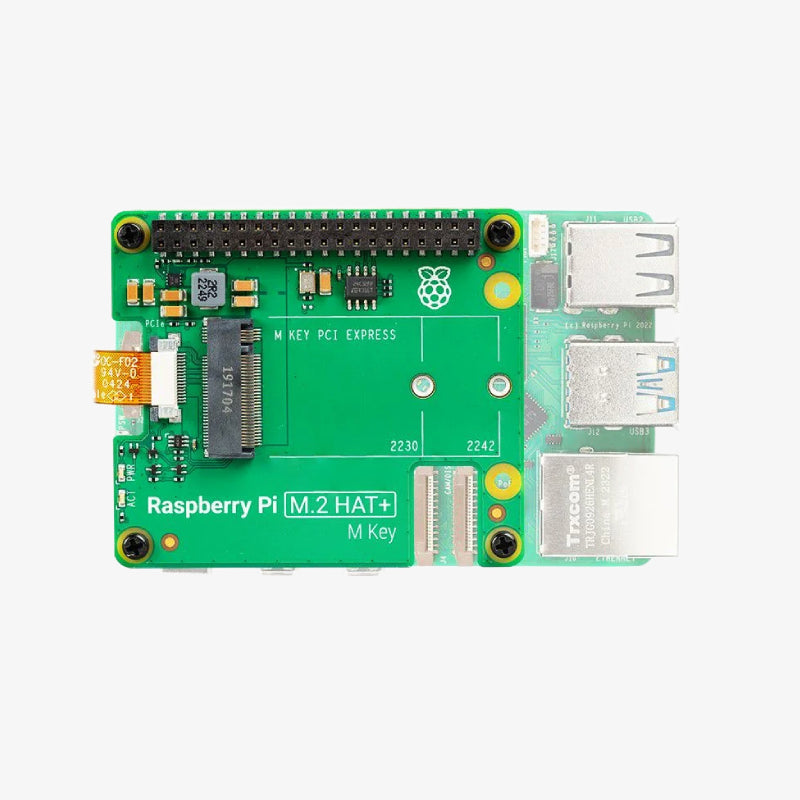

The Raspberry Pi M.2 HAT+ is a compact and efficient expansion board designed to connect M.2 NV Me SSDs and other PCIe peripherals to the Raspberry Pi 5. By leveraging the single-lane PCIe 2.0 interface, it offers a straightforward solution for enhancing storage performance and adding high-speed peripherals to your Raspberry Pi projects.
Features :
- M.2 M Key Support: Compatible with M.2 M key edge connectors in 2230 and 2242 form factors.
- Power Delivery: Provides up to 3A to connected M.2 devices, ensuring adequate power for high-performance peripherals.
- LED Indicators: Equipped with power and activity LEDs for real-time status monitoring.
- HAT+ Specification Compliance: Conforms to the Raspberry Pi HAT+ specification for seamless integration.
- Autodetection: Automatically detected by the latest Raspberry Pi software and firmware.

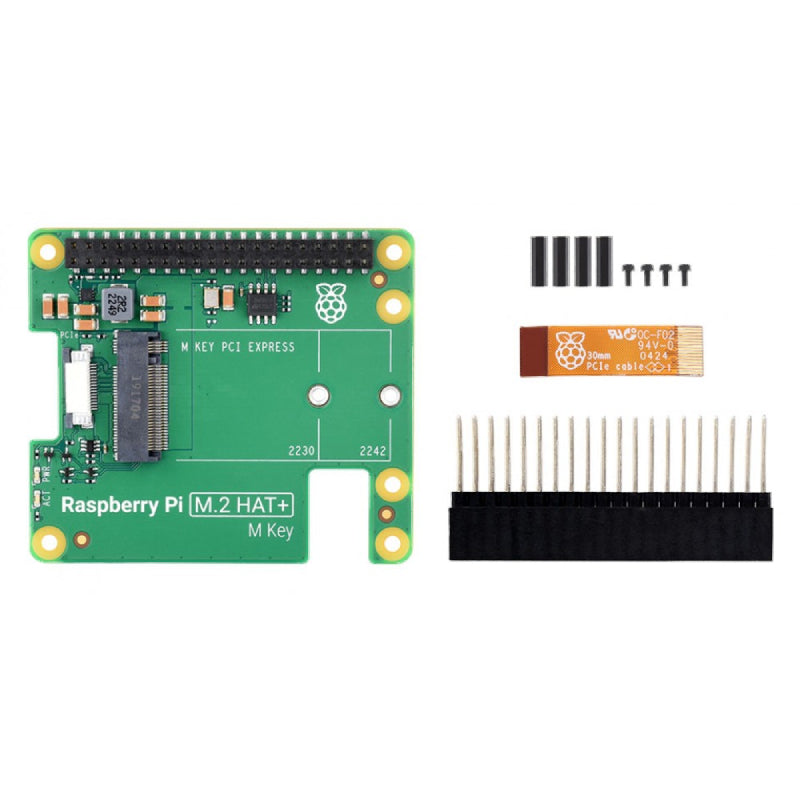

- Mounting Hardware Included: Comes with a 16mm stacking header, threaded spacers, screws, and a knurled double-flanged screw for secure attachment.
Specifications :
- Interface: Single-lane PCIe 2.0
- Supported Form Factors: M.2 2230 and 2242 (Standard version); M.2 2230 (Compact version)
- Power Output: Up to 3A
- LED Indicators: Power and activity
- Compliance: Raspberry Pi HAT+ specification
- Operating Temperature: 0°C to 50°C
- Dimensions: 65mm x 56.5mm x 7.5mm
Package Includes:
1 × Official Raspberry Pi M.2 HAT+
