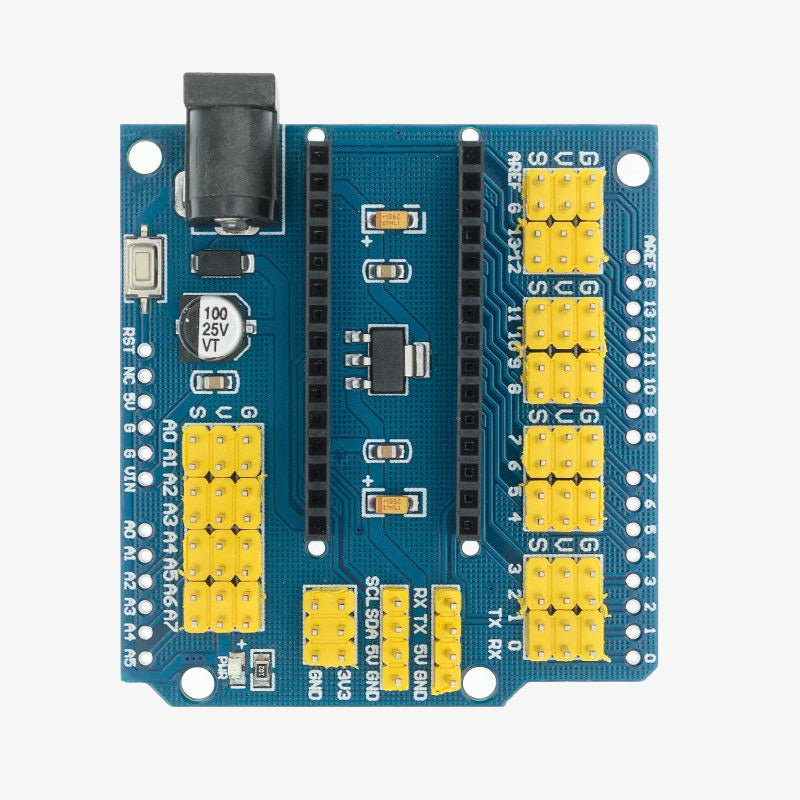

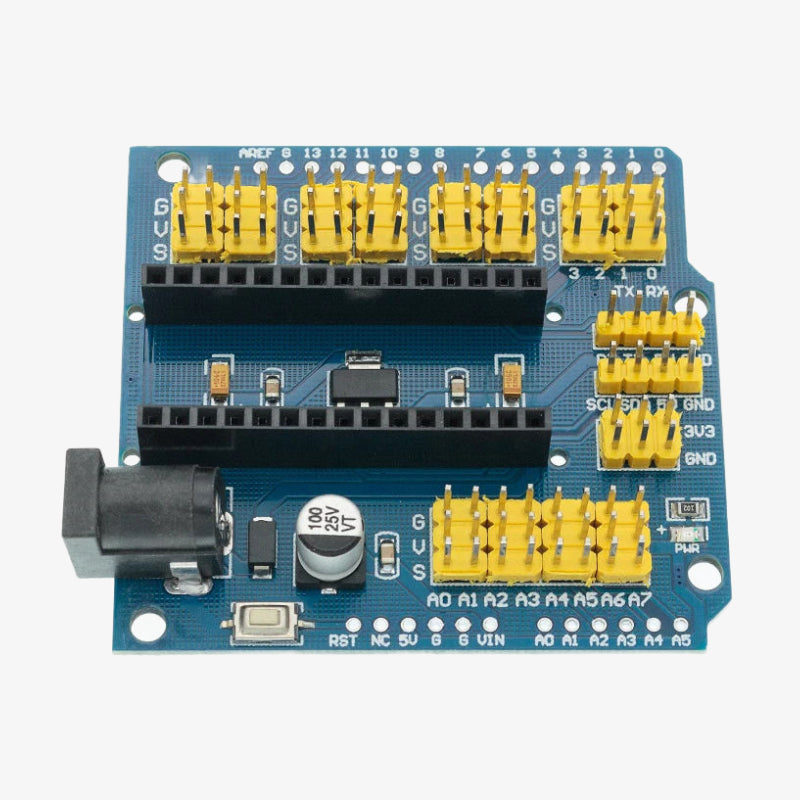

The Nano 328P Expansion Adapter Breakout Board IO Shield is a versatile and easy-to-use expansion board tailored for Arduino Nano (ATmega328P) boards. It brings out all I/O, power, and serial pins of the Nano to clearly labeled headers and offers additional 3-pin headers (Signal, VCC, GND) for effortless connection to external sensors, modules, and actuators. This makes it an ideal prototyping companion for embedded systems, robotics, and DIY electronics.
Designed to simplify complex wiring, the board ensures stable connections and streamlined interfacing between the Nano and other components. It can be directly mounted to a baseboard or placed on a breadboard setup.
Features of Nano 328P Expansion Adapter Breakout Board IO Shield:
- 14 Digital I/O pins (servo-style headers with GND, VCC, and Signal)
- 8 Analog pins with separate GND and power outputs
- 6 PWM-capable pins for precise motor/signal control
- 5 I2C expansion headers for easy module connectivity
- 1 Servo external power input for high-current applications
- 1 AREF output for analog reference customization
- 1 dedicated 3.3V regulated output for lower-voltage modules
- Clearly labeled pin layout for error-free connections
- Compact and through-hole mountable design
- Compatible with Arduino Nano V3.0 and similar boards
Specifications of Nano 328P Expansion Adapter Breakout Board:
- Input Voltage: Supplied via Nano
- Compatibility: Arduino Nano ATmega328P
- Pin Output: All Nano I/O pins with corresponding VCC and GND
- Mounting: Through-hole and screw-mount ready
- Material: FR4 high-quality PCB
- Dimensions: Approx. 58 x 54 x 12mm
Package Includes:
1 × Nano 328P Expansion Adapter Breakout Board IO Shield
