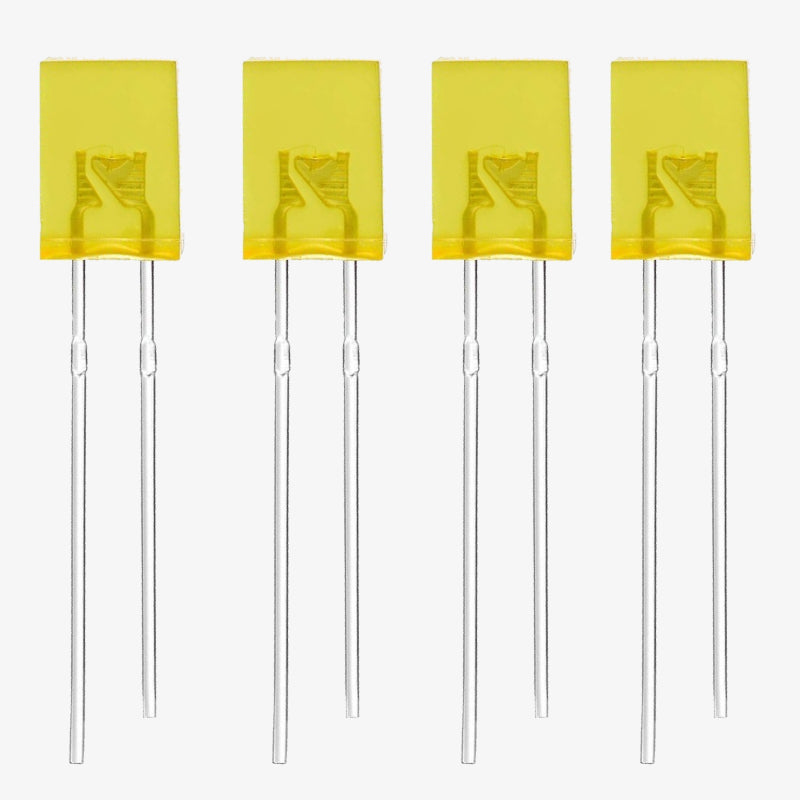

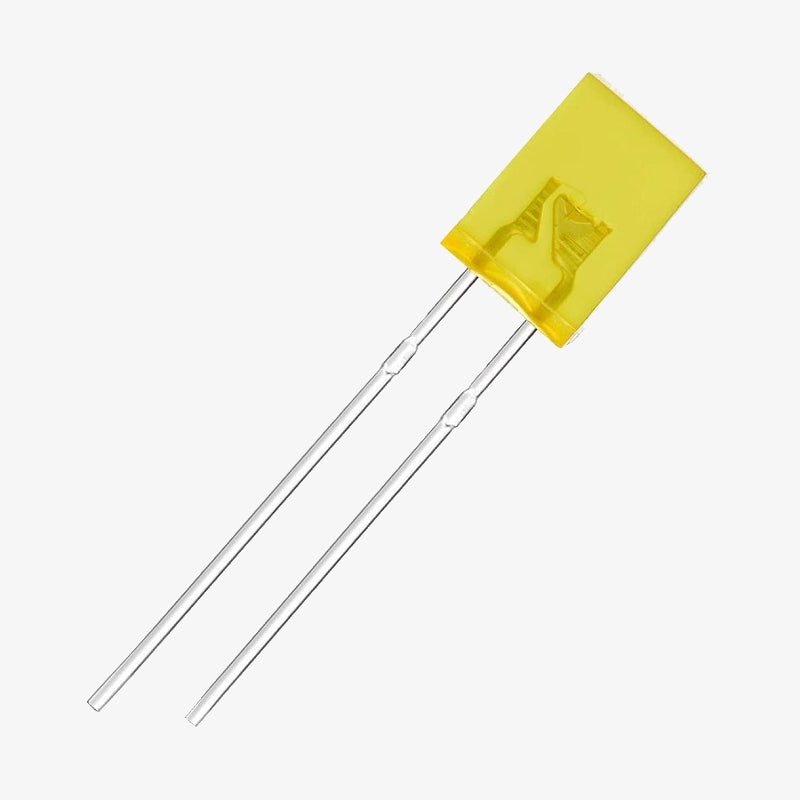

5mm Rectangle 2-Pin Through-Hole Flat Top Diffused LED - Yellow
The 5mm Rectangle Flat Top Diffused Yellow LED provides clear visual indication with uniform wide-angle illumination. Its diffused rectangular lens ensures smooth light dispersion, making it ideal for notification systems, panel indicators, and general electronics projects. The 2-pin through-hole form factor allows easy integration into PCBs and breadboards.
Features:
- Rectangular 5mm flat-top diffused lens for uniform output
- Bright yellow light with consistent performance
- Simple 2-pin through-hole design for easy installation
- Energy-efficient with long-term reliability
- Wide viewing angle for enhanced visibility
- Perfect for control indicators, prototyping, and signal circuits
Specifications:
- LED Type: 5mm Rectangular Flat Top Diffused LED
- Color: Yellow
- Forward Voltage (VF): 1.8V – 2.2V
- Forward Current (IF): 20mA
- Luminous Intensity: 200–600 mcd (typical)
- Wavelength: 585–595 nm (yellow)
- Lens Type: Diffused, flat-top rectangular
- Viewing Angle: ~120°
- Mounting Type: Through-hole, 2-pin
- Polarity: Long lead = Anode (+), short lead = Cathode (–)
- Applications: Indicators, control boards, signal modules
Package Includes:
1 × 5mm Rectangle 2-Pin Through-Hole Flat Top Diffused LED – Yellow
