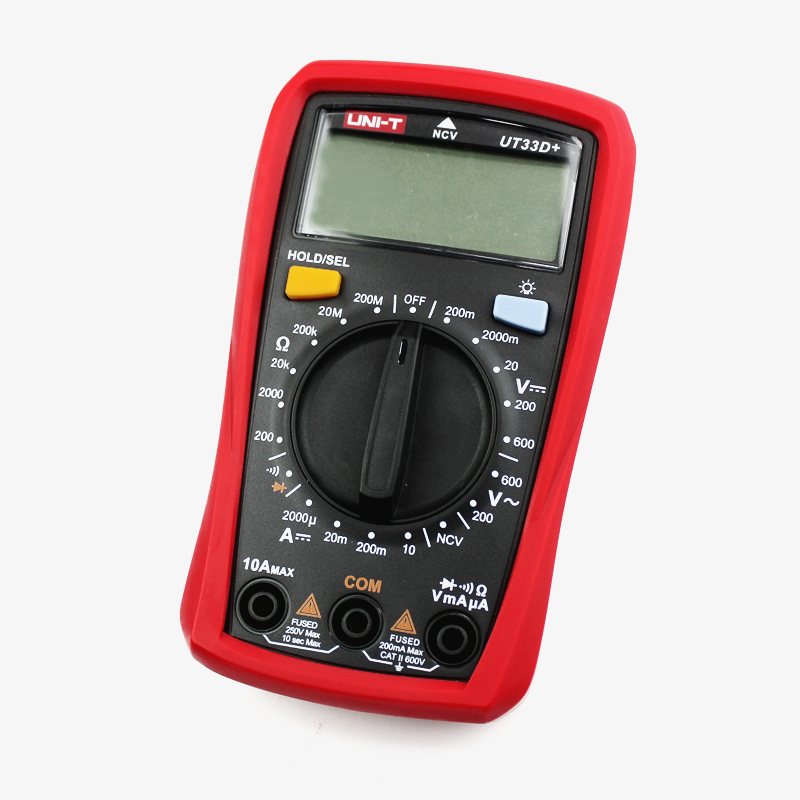

The new generation multimeter redefines the performance standards for entry-level digital multimeters. UNI-T UT33D is a pocket size small digital multimeter that can be used to measure AC/DC voltage, DC current, resistance, tests diodes, etc. Also we can check the continuity from it.
UT33D+ is a small handheld multimeter that is very useful for general purpose electronic testing. This is designed in such a way that it could easily fit inside a pocket and easy to carry. It is a Battery operated Digital multimeter with proper insulation and clear display even in high light condition. In dark conditions, the display backlight feature is very useful. It could also hold the data by pressing the hold button. It uses a rubber hustler for tight grip facility.
This Multimeter is useful for AC/DC voltage testing, DC current and resistance testing as well as Diodes and continuity testing can also be done using this Multimeter. The package includes probes and the multimeter. The battery is already installed in the multimeter. DC voltage testing ranges from 200mV to 600V that can be selected in 5 ranges and AC voltage testing facility includes two ranges 200V and 600V. The DC current range is 10A that is also divided in 4 ranges. It could test resistance up to 200Mohms with 6 ranges.
UT33D+ specification:
Technical Specifications:
| Display | 1999 digit LCD, backlight, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 500 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 500 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ |
| Accuracy | ±(0.8%+2) | |
| Power | 9 V battery (6F22) | |
| Dimensions | 130 × 73.5 × 35 mm | |
| Weight | 156 g | |
Specifications:
- DC voltage Range: up to 600 volts (5 Ranges)
- AC voltage Range: up to 600 (2 Ranges)
- DC Current: up to 10 A (4 Ranges)
- Resistance Range: 200M ohm (6 Ranges)
- Digital Display
- Backlight Button
- Diode and continuity test
- Data hold facility
- Low battery indicator
- Rubber hustler for excellent grip facility.
UT33D+ Applications:
- Continuity Test
- AC Voltage testing
- DC Voltage testing
- Resistance testing
- Transistor hFE testing
- DC Current Testing
Example on How to use UT33D+:
UNI-T UT33D+ Palm Size Multimeter unboxing and review
Additional Resources:
Package Contains

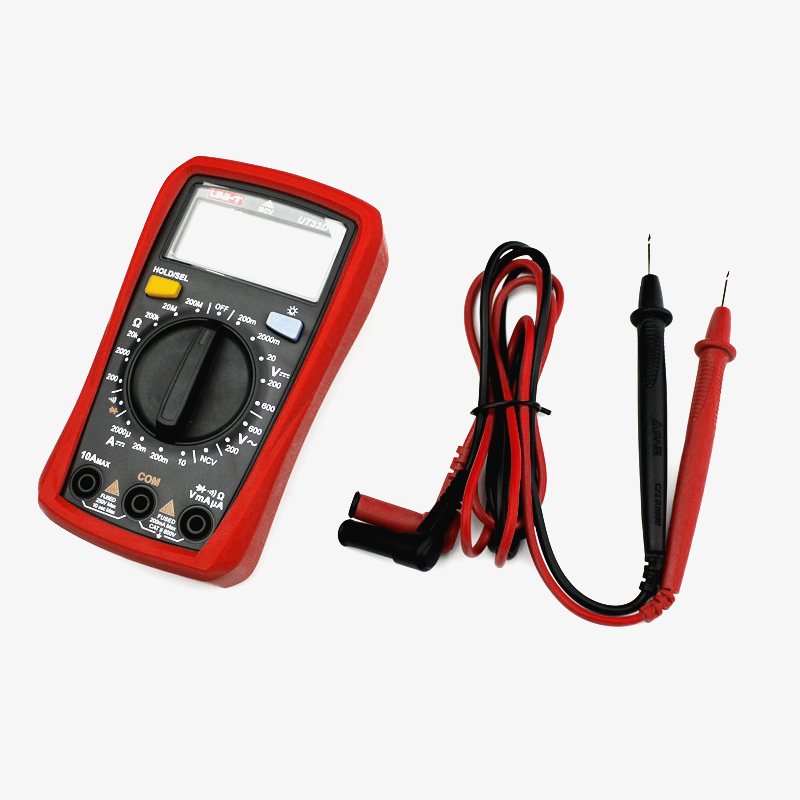

1x UT33D+ with pre-installed battery.

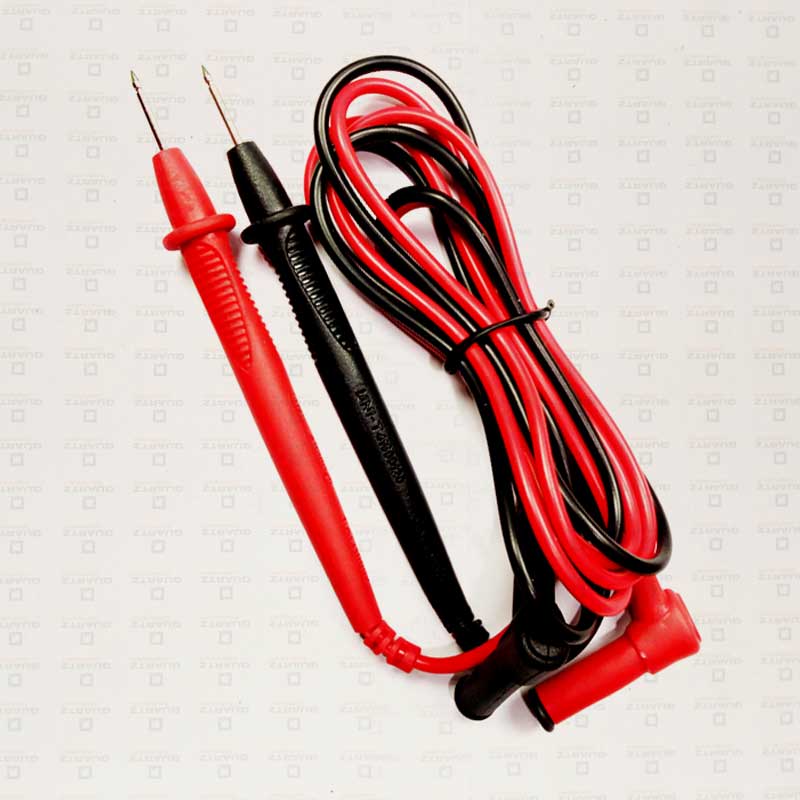

1x Probes Pair
