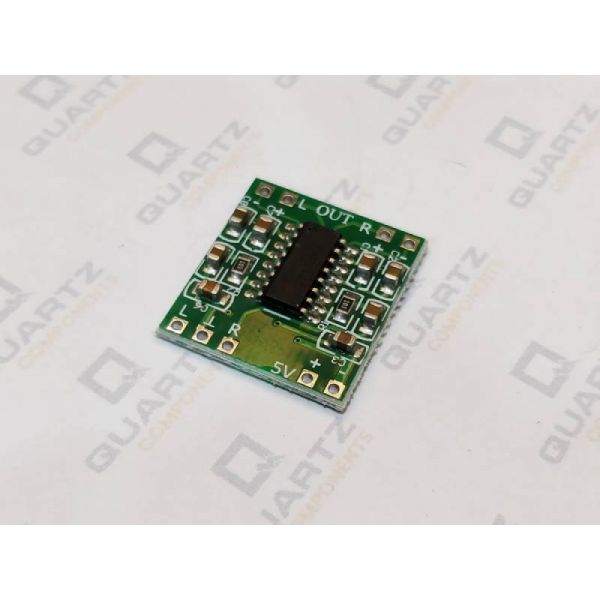

PAM8403 Digital Audio Amplifier Module

QC0042
129 In stock
Rs. 24.00 (Exc. GST)
Rs. 24.00

The PAM 8403 audio amplifier module is a class D audio power amplifier. It has a dual channel stereo output that can drive two 3W speakers. The module operates with a voltage range of 2.5V to 5V and has an efficiency of 85%.

Power the module (typically 5V) and feed in the audio signal. Connect two 4 ohm or 8 ohm speaks on the output side and you can listen the amplified audio signals being played on the speaker. Consumes very little power and can be powered with USB output.

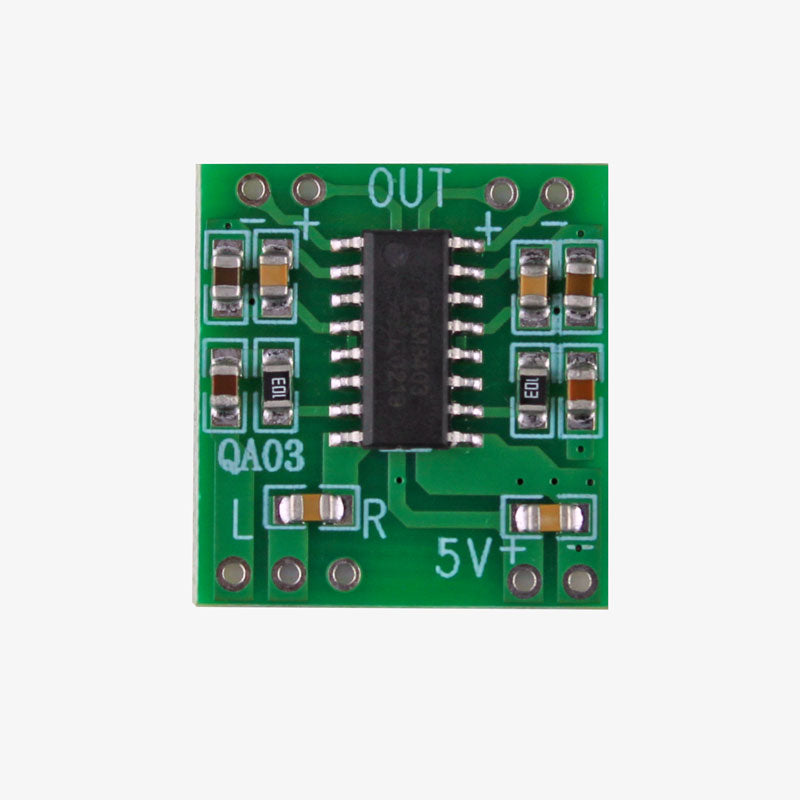

PAM8043 Stereo Audio Amplifier Module Pinout

This stereo Audio Amplifier Module takes in both left and right audio Input and can directly drive two speakers (left channel and right channel) as shown in the image above. If you are looking for a mono power amplifier check out the LM386 Amplifier Module.



 Specifications & Features

  • 2 channels 3 W PAM8403 audio amplifier
  • Output Power: 3 W + 3 W (at 4 ohm)
  • Working Voltage: 2.5 to 5.5 V
  • Board Size: 24 x 15 mm
  • High amplification efficiency 85%
  • Can directly drive 4 Ω/8 Ω small speakers
  • Good sound quality & noise suppression
  • Unique without LC filter class D digital power board
  • Can use computer USB power supply directly
  • Small Size, 1.85 x 2.11 cm can easily fit in a variety of products



Additional Resources:

PAM8403 Datasheet

PAM8403 Audio Amplifier Tutorial





Read More
Read Less

Returns Policy

Due to the type of products we sell, we accept limited returns. Below are the conditions where we can accept a return request.

1. Manufacturing Defect
If you receive a product with a manufacturing defect, please notify us within the 3 days of you receive the product, supported by proper pictures and description. Once our support team accept the return, we will provide a replacement or a complete refund including the return shipping cost. Please note that if your item is already soldered or modified in manner we will not be able to take it under return.

2. Wrong Item Shipped

If your item looks different from what is shown in the image on our website, we will take the item back and provide a refund or replacement as per your choice.

Limitation of Returns
We don't accept the returns for the products damanged by improper use of the product. Moreover we don't accept the return, if the ordered product is not fit for any specific application. Please read the product specifications and datasheet before selecting and ordering a product. Returns are accepted only with 3 days from the date of delivery.

Shipping

We ship to all over India with free shipping on all prepaid orders. For Cash on Delivery orders INR 70 will be charged for orders below INR 599 and INR 20 will be charged for the orders above 599. Please contact to our support team at support@quartzcomponents.com for any question related to shipping.


Please note that the Minimum Order Value is INR 200 for both prepaid and COD orders.

Customer Reviews

Based on 21 reviews
90%
(19)
10%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Rabindra Sharma
Awesome 😎

The module is not actually a pam8403 , its based around some other chip, and that's the only con, apart from that pcb is really good quality for the price , it's power is 2.1w per channel not actually 3 , and the idle power consumption is really low like around 15ma idle , so it's really good for battery powered projects.

R
R.Vignesh R.Vignesh
amplifier board

amplifier board

R
R.Vignesh R.Vignesh
amplifier board

amplifier board

K
Koday Kumar Primary School Koday Kumar Primary School

Good

U
U.B.
Good general purpose amplifier module.

I buy this amplifier module regularly, because of its performance and simple design. The module is so small and can be accommodated in very small spaces. It can be operated with battery as the voltage is very low. Only drawback is that we have to solder the external connections very carefully, otherwise the tracks will peel off.
