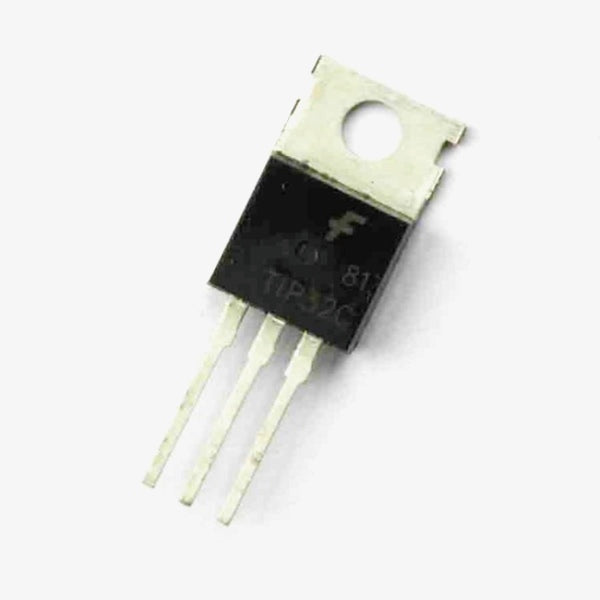

TIP32 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.
Features:
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 3ADC |
| Continuous Base Current (Ib) | 1ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 40W |
| Operating Temperature Range | -65 - 150°C |
| DC Current Gain (hFE) | 10-50 |
