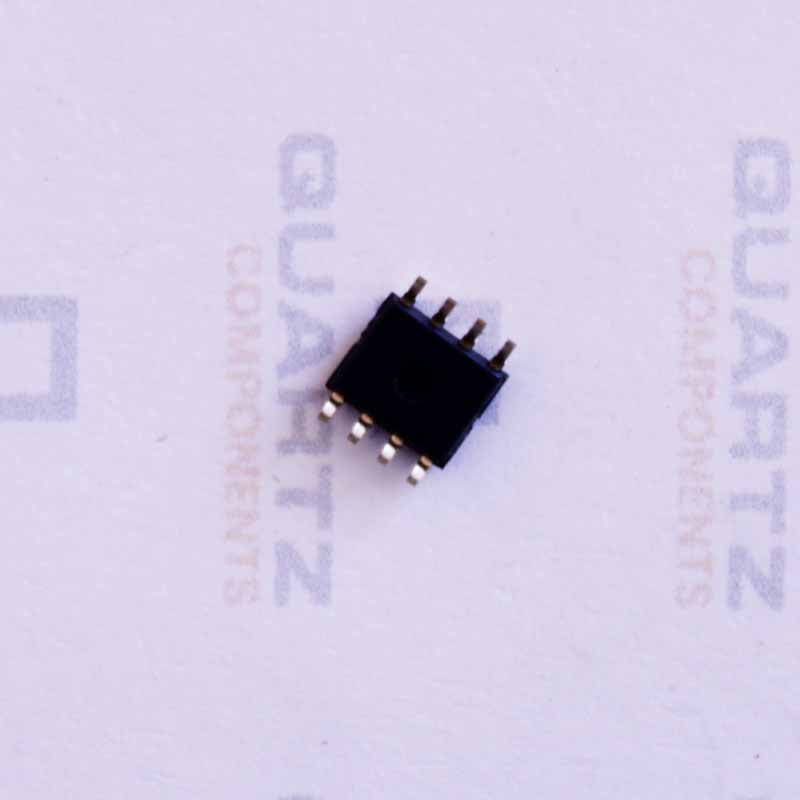

STM8S001J3M3 8S001J3 SOP-8 New original IC chip

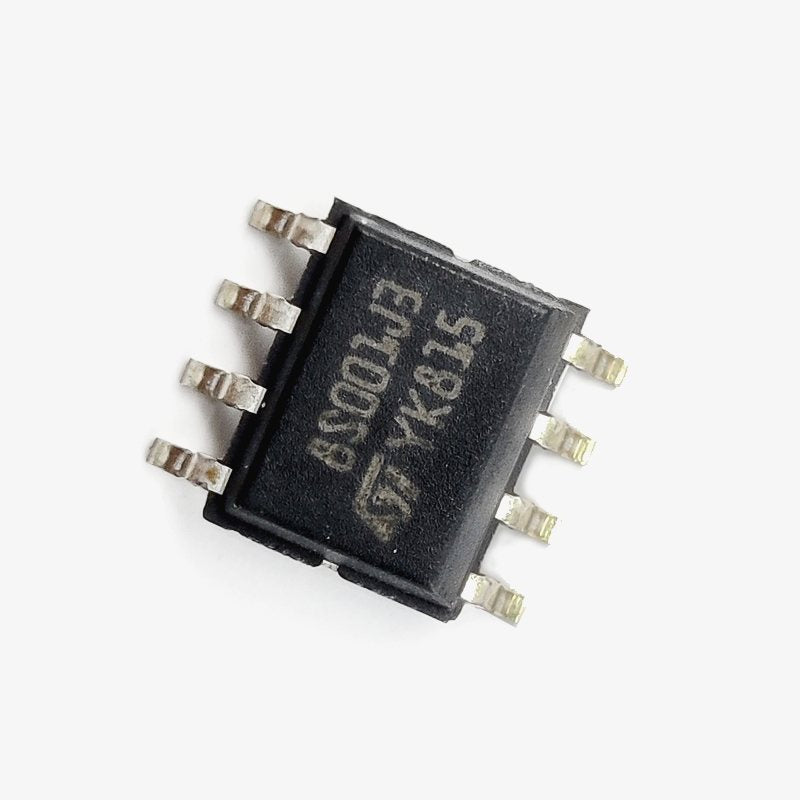

STM8S001J3M3 8S001J3 SOP-8 New original IC chip

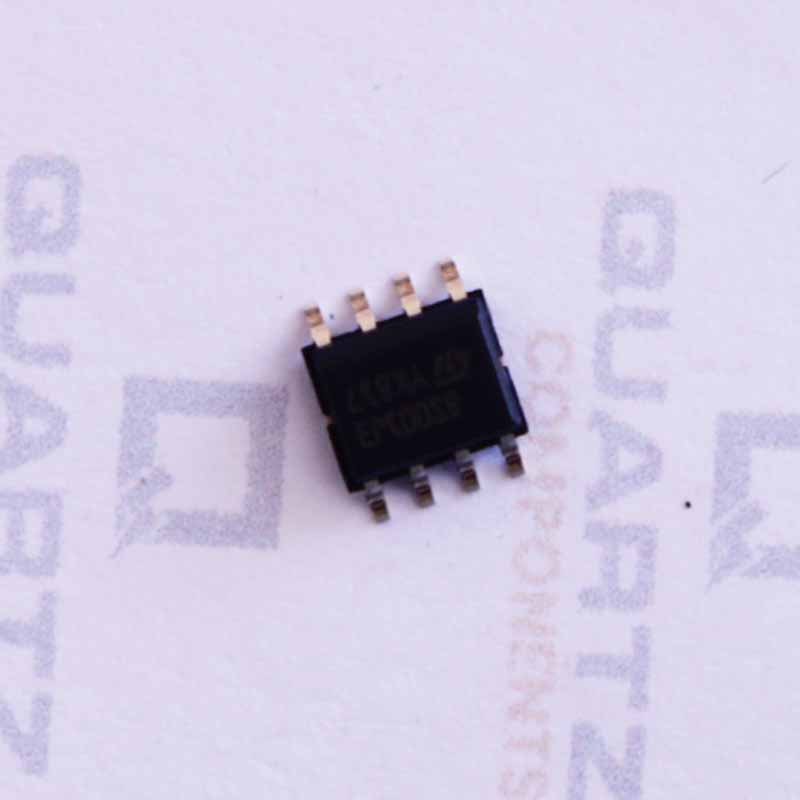

STM8S001J3M3 8S001J3 SOP-8 New original IC chip
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

STM8S001J3M3 8S001J3 SOP-8 New original IC chip

QC0721
93 In stock
Rs. 222.00 Rs. 131.00 (Exc. GST)
Rs. 131.00

STM8S001J3M3 8-bit Microcontroller is a low cost and robust microcontroller offered by STMicroelectronics for systems where primary requirement is performance, robustness and low cost. Like Stm8L051F3P6, it also has STM8 Core CPU which can process 16MIPS at 16MHz thereby ensuring performance and processing power for your application. It has 8Kbyte of flash memory, 1Kbyte of RAM and 10-bit ADC for your application. It is available in SOP-8 package which means it has 8 pins and 5 of them can be used for external interrupts. It has 5 GPIOs with four of them having high sink outputs. You can use it in the hobbyist projects and also in low-cost industrial application where you want. For Emulation and In Circuit Debugging you can use STice emulation system offered by the ST Microelectronics and for programming and development you can use ST Visual Develop and ST Visual Programmer or ST socket boards available specifically for programming. You can use this MCU as a standalone IC instead of breakout boards like STM32F030F4P6 Development Board, STM8S103F3P6 STM8 Development Board or Atmel microcontrollers.



Specifications

  • 2.95 V to 5.5 V operating voltage
  • Temperature range: −40 °C to 85 °C
  • Harvard architecture and 3-stage pipeline
  • 10-bit ADC
  • UART, Smartcard, IrDA, SPI, I2C
  • 5 GPIOs all external interrupt enabled
  • Embedded single-wire interface module (SWIM)



Product Description

STM8S001J3M3 8S001J3 SOP-8 New original IC chip

As you can see in the pin out above there are 8 pins on the SOP-9 package and apart from the power pins Vss, Vcap and Vdd, every pin can be used for multiple functionalities, so you can program them accordingly by selecting appropriate control registers as mentioned in the Datasheet.



Additional Resources

Getting Started with STM8S using STVD and Cosmic C Compiler

Datasheet

Package Contains

1x STM8S001J3M3 8S001J3 SOP-8 New original IC chip
