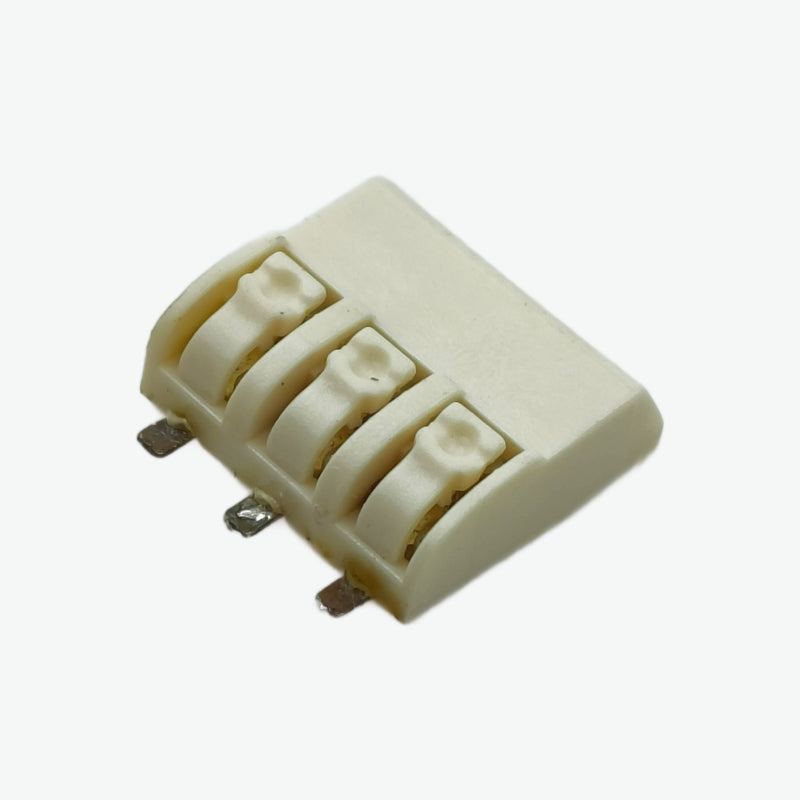

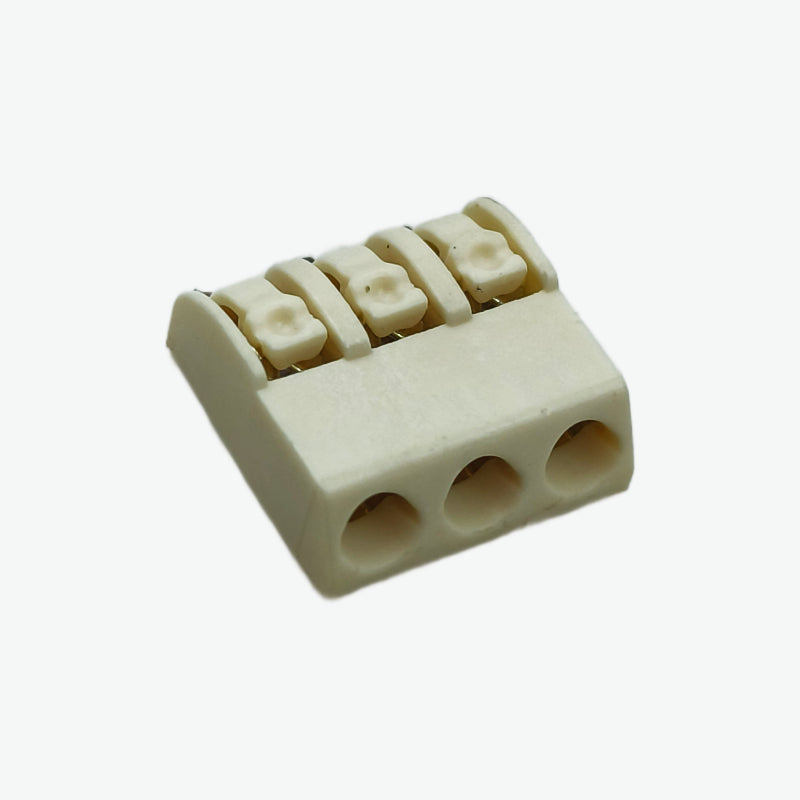

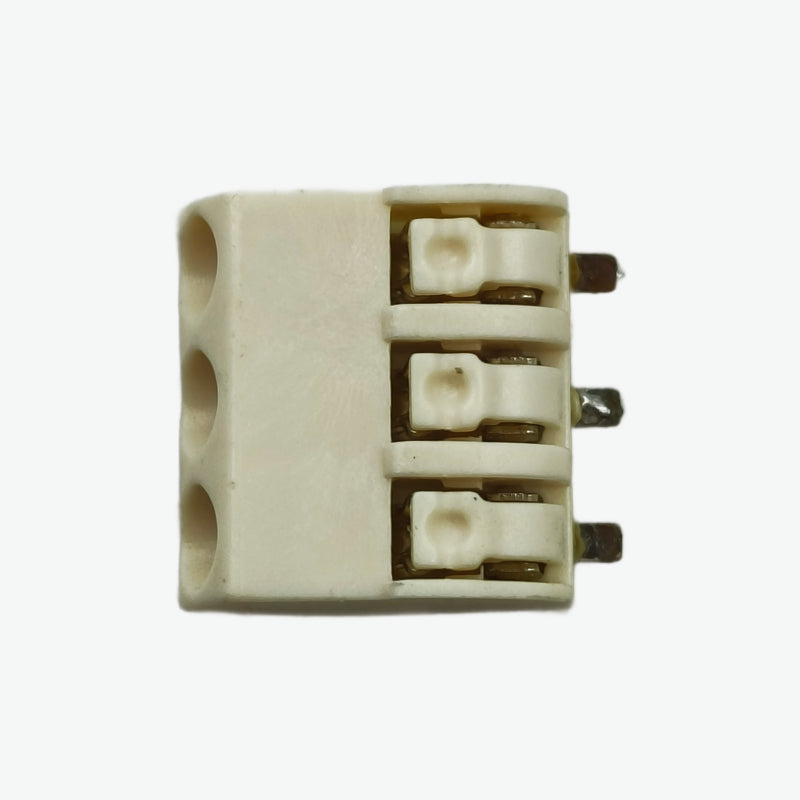

3 Terminal SMD PCB Terminal Block (Push-in CAGE CLAMP Type) - 4.00mm Pitch
The 3 Terminal SMD PCB Terminal Block offers secure Push-in CAGE CLAMP connections for multi-wire PCB circuits. Its integrated push-buttons allow tool-free removal of conductors, while the 4.5mm low-profile design makes it ideal for compact and high-density electronic boards.
Features:
- Three-terminal SMD connector with Push-in CAGE CLAMP technology
- Push-buttons for quick and easy conductor removal
- 4.00mm pitch for safe spacing and excellent insulation
- Compact and low-profile design (4.5mm tall)
- Durable thermoplastic housing for long-term performance
- Perfect for signal distribution, automation systems, and PCB modules
Specifications:
- Type: SMD PCB Terminal Block (Push-in CAGE CLAMP)
- Number of Terminals: 3
- Pin Spacing (Pitch): 4.00mm
- Rated Current: 6A
- Rated Voltage: 250V AC
- Wire Size: 24–18 AWG
- Dimensions (W × H): 3.9 × 4.5mm per terminal
- Mounting Type: Surface Mount (SMD)
- Connection Type: Push-in with Push-button Release
- Housing Material: Flame-retardant Thermoplastic
- Applications: PCB power and signal boards, automation systems, compact electronic devices
Package Includes:
1 × 3 Terminal SMD PCB Terminal Block (Push-in CAGE CLAMP Type) – 4.00mm Pitch
