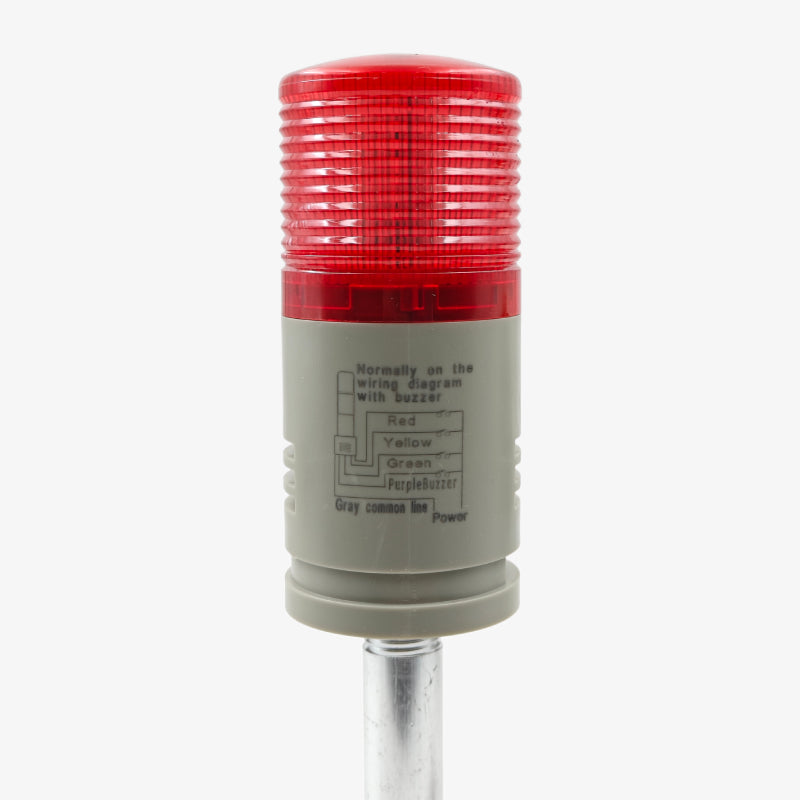

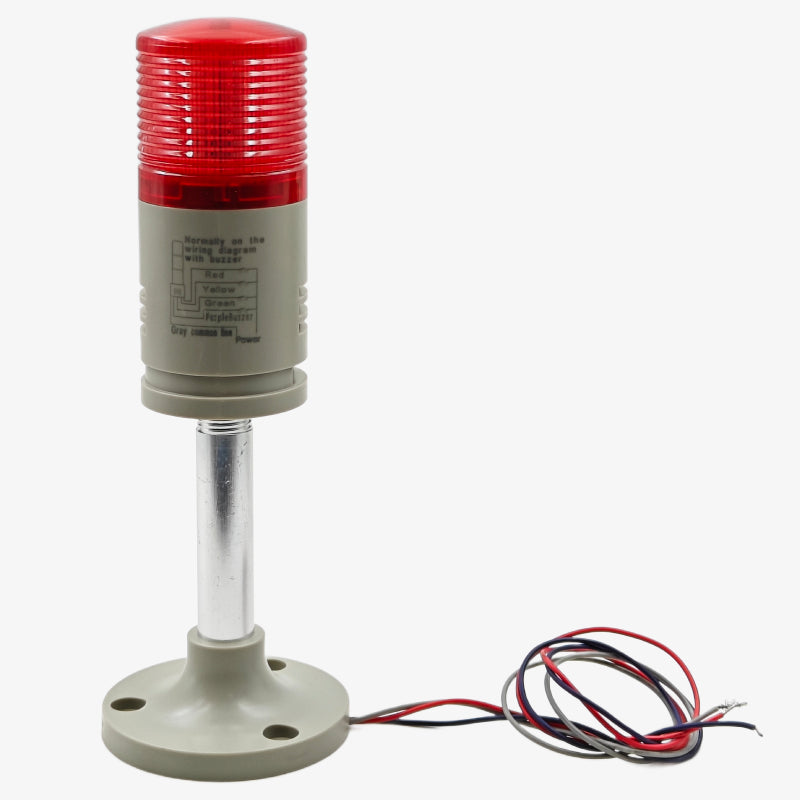

Signal Tower Light with Buzzer 1 Tier - Red LED, 24V/220V AC/DC
The Signal Tower Light with Buzzer (1 Tier) is designed for industrial automation, machinery indication, and production monitoring applications. This compact and durable tower light provides bright visual and audible alerts to indicate machine status, errors, or safety warnings.
It supports dual input voltage options (12V-24V AC/DC or 120V-220V AC), making it versatile for various setups. Users can easily switch between voltage levels and operating modes (flashing or steady light) by accessing the internal selector switch located inside the tower light housing.
The red LED provides high-intensity illumination with a built-in buzzer for audible indication. Both light and buzzer can operate in flashing or fixed modes, ensuring effective signaling in different industrial environments.
Note: Before installation, users must check and configure the voltage and operating mode settings according to their system requirements.
Features:
- Dual Voltage Compatibility: Works with both 12–24V AC/DC and 120–220V AC power inputs.
- Selectable Operating Modes: Supports flashing and steady (fix) modes for both light and buzzer.
- User-Configurable Settings: Easily change voltage and mode via internal DIP switch.
- High Brightness LED: Energy-efficient LED provides long life and clear visibility.
- Integrated Buzzer: Loud and clear sound alert for added safety.

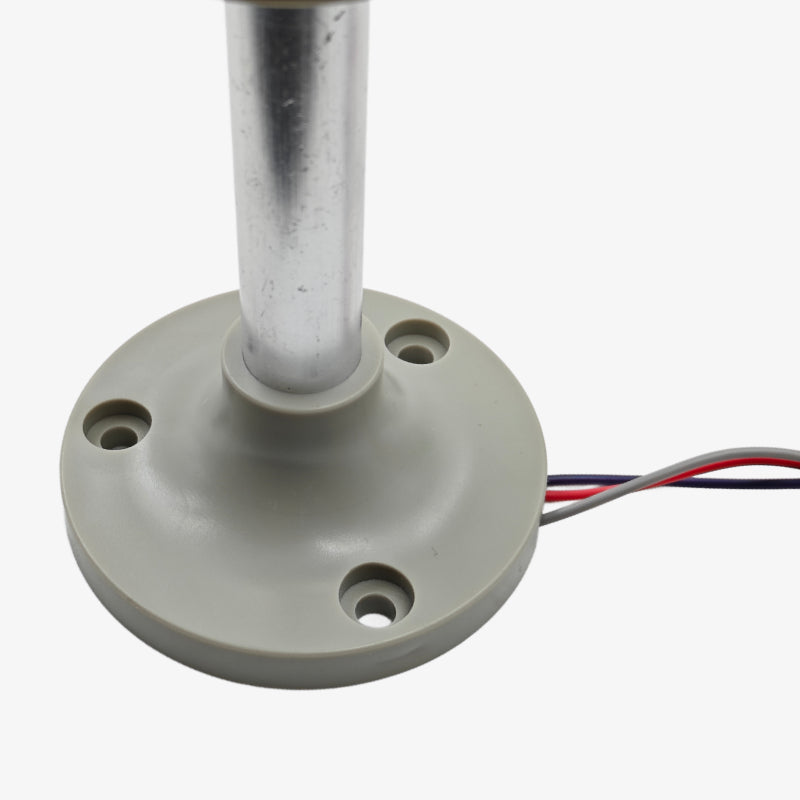

- Easy Installation: Compact size and mounting base suitable for panels, machines, and workstations.
Specifications:
|
Model |
Single Layer Signal Tower Light with Buzzer |
|
Color |
Red |
|
Voltage Range |
12–24V AC/DC or 120–220V AC (Selectable) |
|
Power Consumption |
< 5W |
|
Operating Mode |
Flashing / Steady (Selectable) |
|
Buzzer Type |
Built-in |
|
Sound Level |
Approx. 85–90 dB |
|
Light Source |
High-brightness LED |
|
Material |
ABS Body + Polycarbonate Lens |
|
Mounting Type |
Base Mount |
|
Operating Temperature |
-10°C to +50°C |
Package Includes:
1 x Signal Tower Light with Buzzer (Red, 1-Tier) with Mounting Stand
