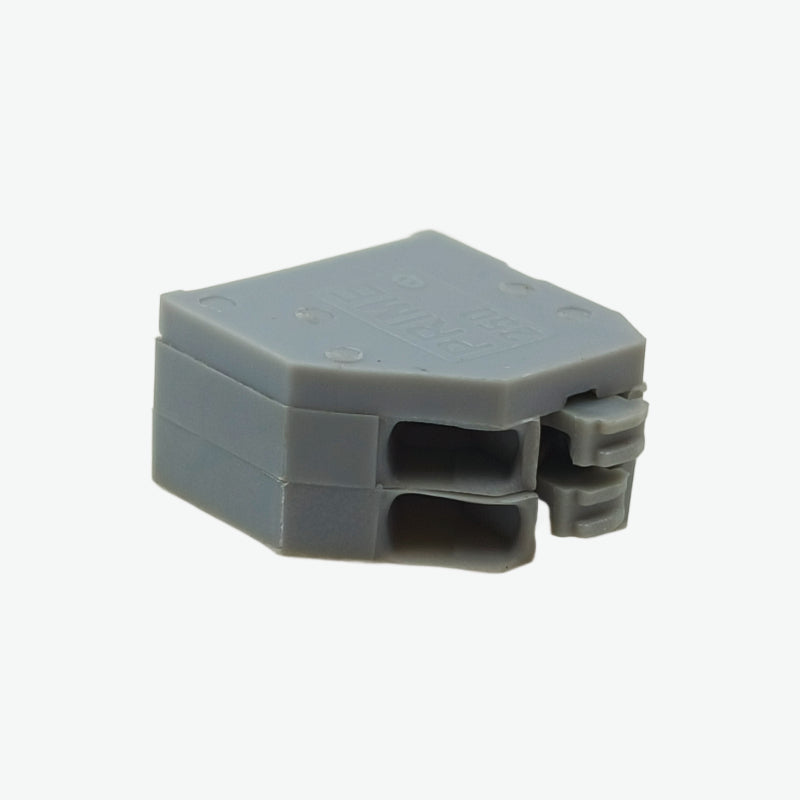

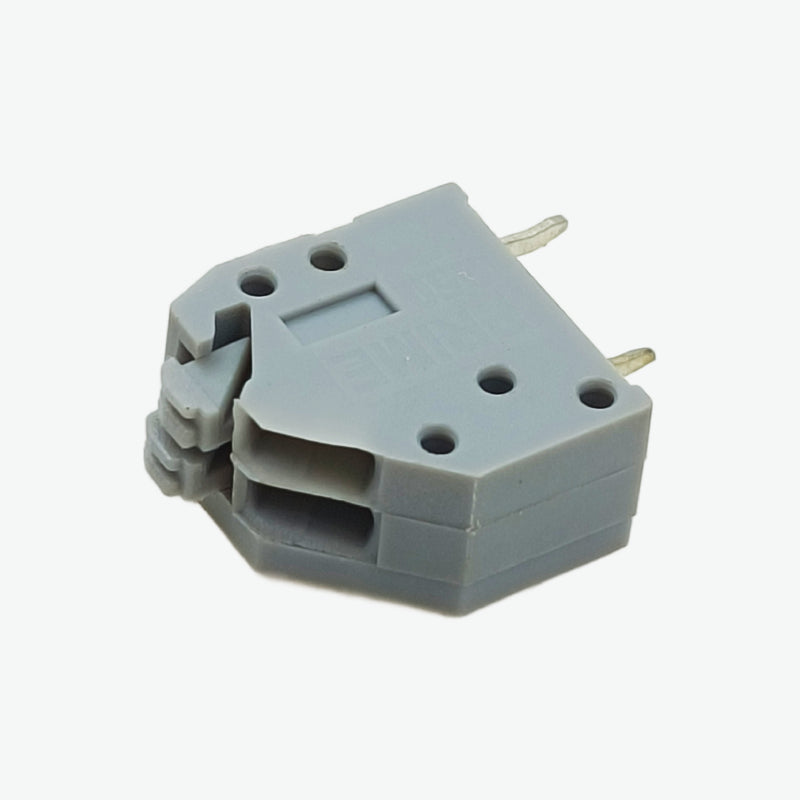

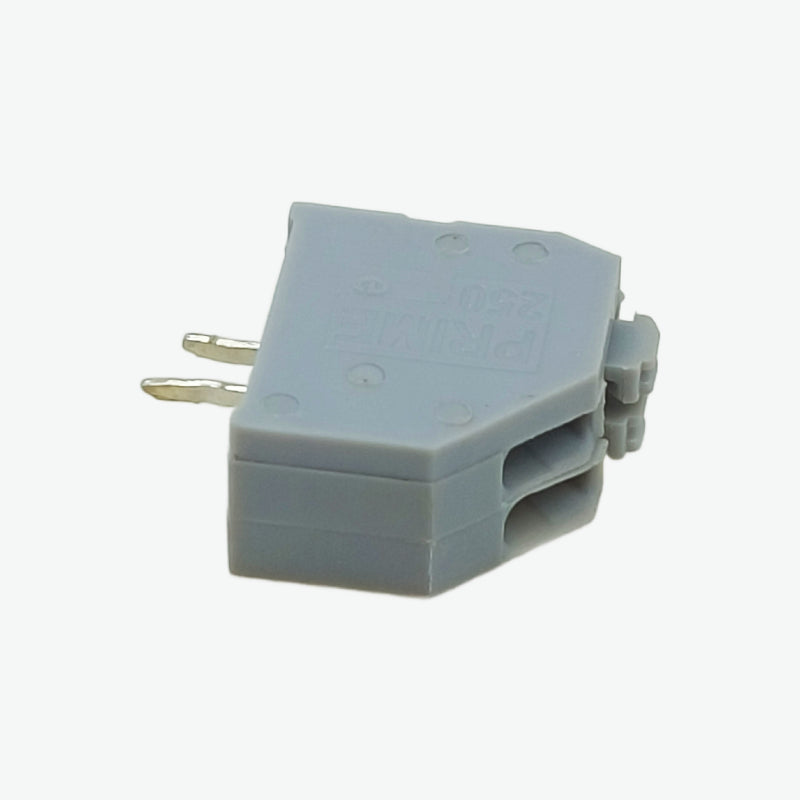

2 Way Push Type PCB Connector Terminal Block - 2.54mm Pitch
The 2 Way Push Type PCB Connector is a compact and reliable solution for secure wire-to-board connections. Featuring push-in terminals, it allows tool-free insertion and removal of solid or stranded wires, providing fast and maintenance-friendly assembly. Its high-quality engineering thermoplastic housing and copper alloy contacts ensure long-lasting performance, low voltage drop, and stable electrical conductivity, making it ideal for control boards, automation modules, and industrial electronics.
Features:
- Dual-terminal push-in connector for quick, secure, and screwless wire connections
- 2.54mm pitch suitable for compact, high-density PCB layouts
- Recommended PCB hole diameter: 1.20mm for precise mounting
- Engineering thermoplastic housing ensures durability and high insulation
- Minimal voltage drop of 20mV for efficient power transmission
- Supports wire sizes from 0.2–1.5mm²
- Copper alloy contacts with wire protector for reliable termination
- Solder pin size: 0.40 × 0.80mm for easy PCB assembly
- Compliant with IEC 60947-7-1 standard; dielectric strength >2.5KV
Specifications:
- Type: Push Type PCB Connector (Screwless)
- Number of Terminals: 2
- Rated Current: 2A
- Rated Voltage: 160V AC
- Test Class: IEC 60947-7-1
- Pitch: 2.54mm
- Wire Size: 0.2–1.5mm²
- Wire Strip Size: 8.50–9.50mm
- Contact Material: Copper Alloy
- Wire Protector: Yes
- Solder Pin Size: 0.40 × 0.80mm
- Dielectric Strength: >2.5KV
- Voltage Drop: 20mV
- Housing Material: Engineering Thermoplastic
Package Includes:
1 × 2 Way Push Type PCB Connector - 2.54mm Pitch
