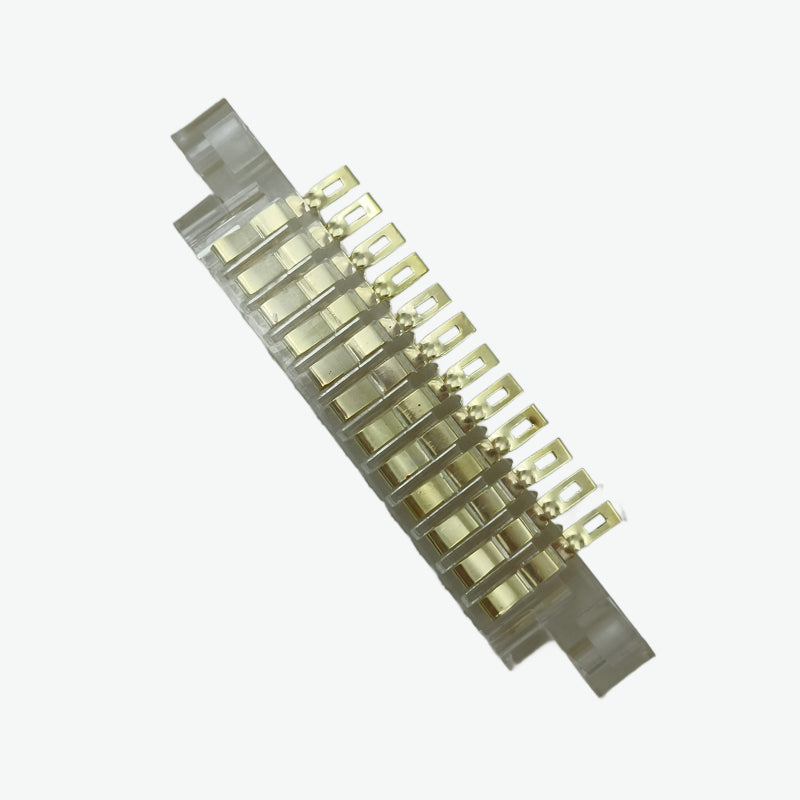

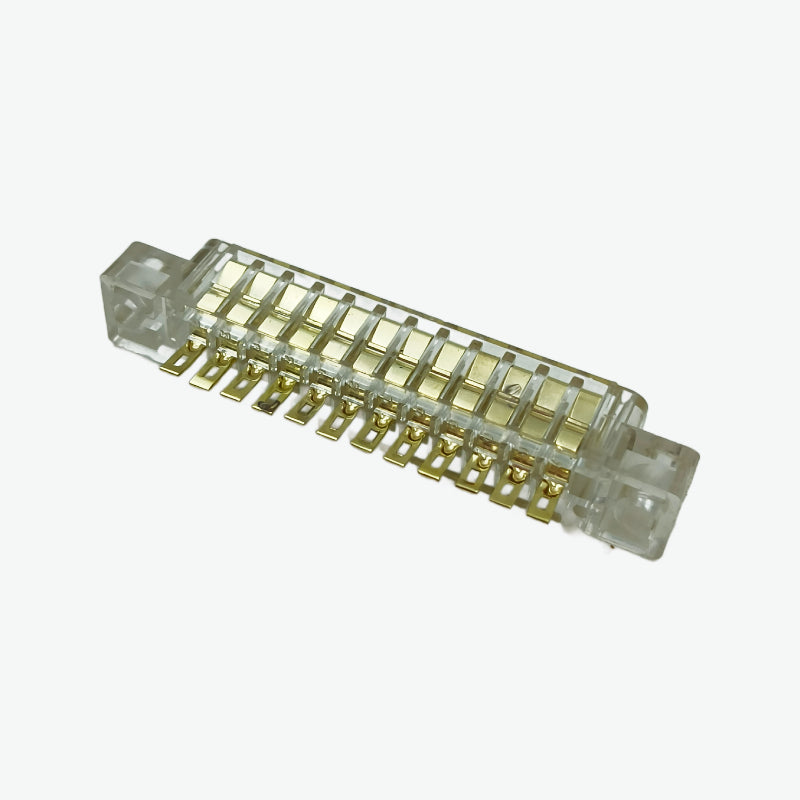

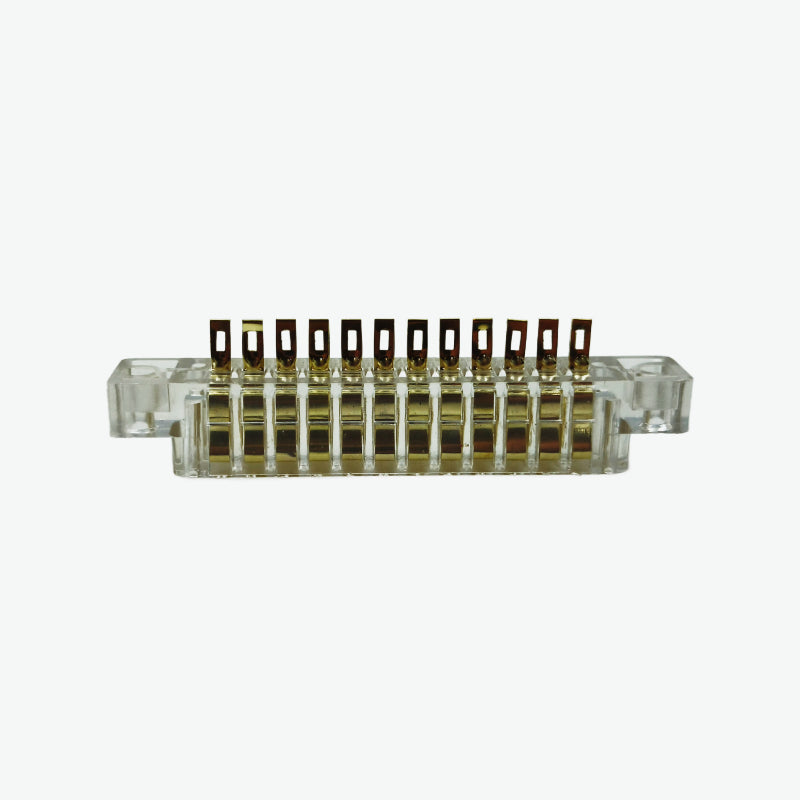

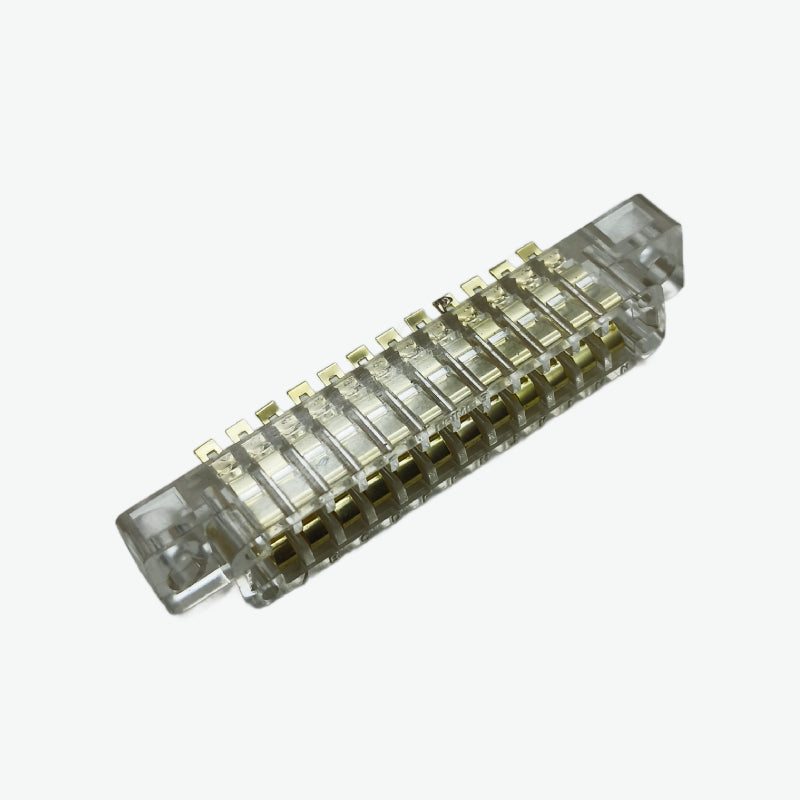

12 Contact Card Edge Connector(White) - 3.96mm Pitch 5A 300V
The 12 Contact Card Edge Connector is a reliable and high-quality interface solution designed for secure PCB-to-board connections. Built with durable insulating materials and precision contacts, it provides excellent conductivity and long-term performance for electronic, control, and industrial systems. Its 3.96mm pitch and bellows-type contact structure ensure consistent electrical contact and easy integration into standard PCB layouts.
Features:
- 12 contacts with bifurcated bellows (BT) design for stable and reliable connection
- Solder/PMT type terminals for easy and flexible mounting
- Gold/tin-plated contacts for superior corrosion resistance and conductivity
- High-durability design rated for up to 500 mating cycles
- Polycarbonate/PBTP insulation provides excellent mechanical and thermal stability
- Wide operating temperature range suitable for demanding environments
- Compliant with RoHS standards and safety certifications
Specifications:
- Model: 12 Contact Card Edge Connector
- Contact Type: Bellows (BT)
- Contact Terminal: Solder / PMT
- Contact Pitch: 3.96mm (0.156 inch)
- Durability: 500 Cycles
- Insulator Material: Polycarbonate / PBTP
- Contact Material: Phosphor Bronze
- Contact Finish: Gold / Tin
- Operating Temperature Range: -40°C to +125°C
- Working Voltage: 300V RMS
- Voltage Proof: 1000V RMS
- Current Rating: 5A
- Contact Resistance: ≤10 mΩ (max)
- Insulation Resistance: ≥1000 MΩ (min)
- Compliance: RoHS Certified
- Approval: E302677
Package Includes:
1 × 12 Contact Card Edge Connector(White) – 3.96mm Pitch
