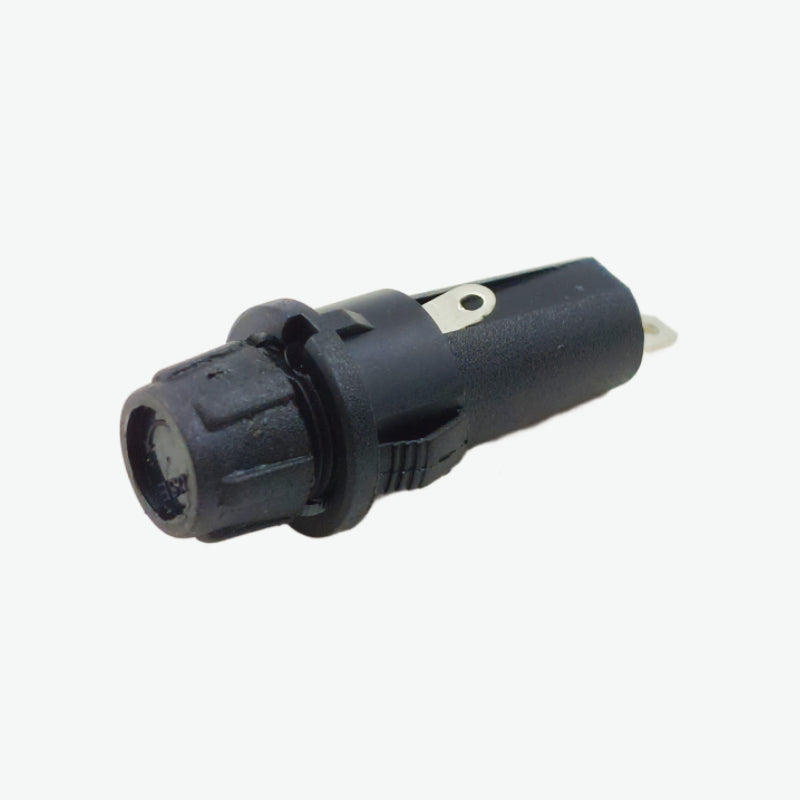

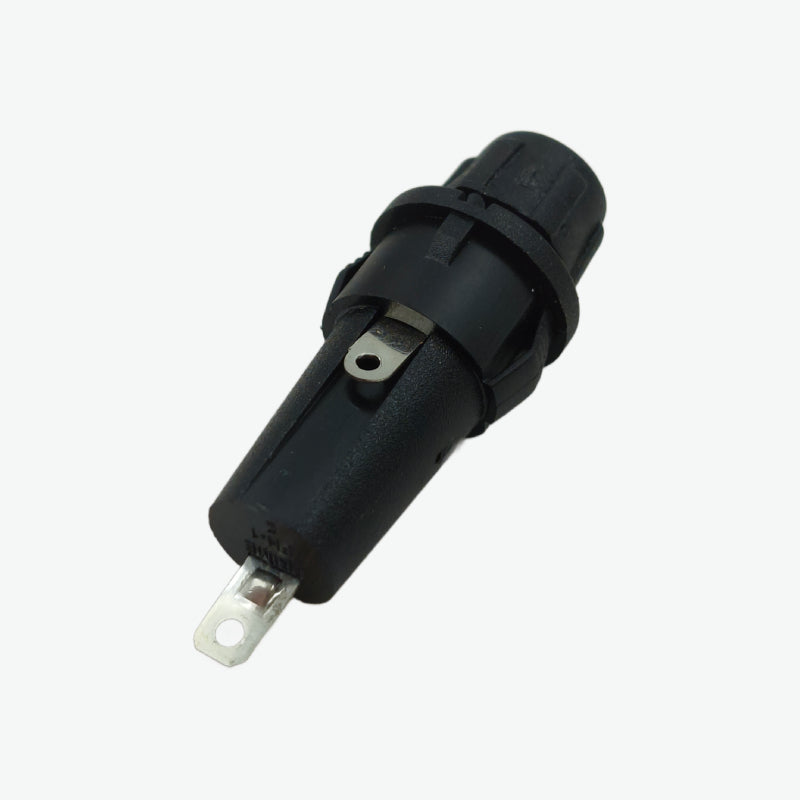

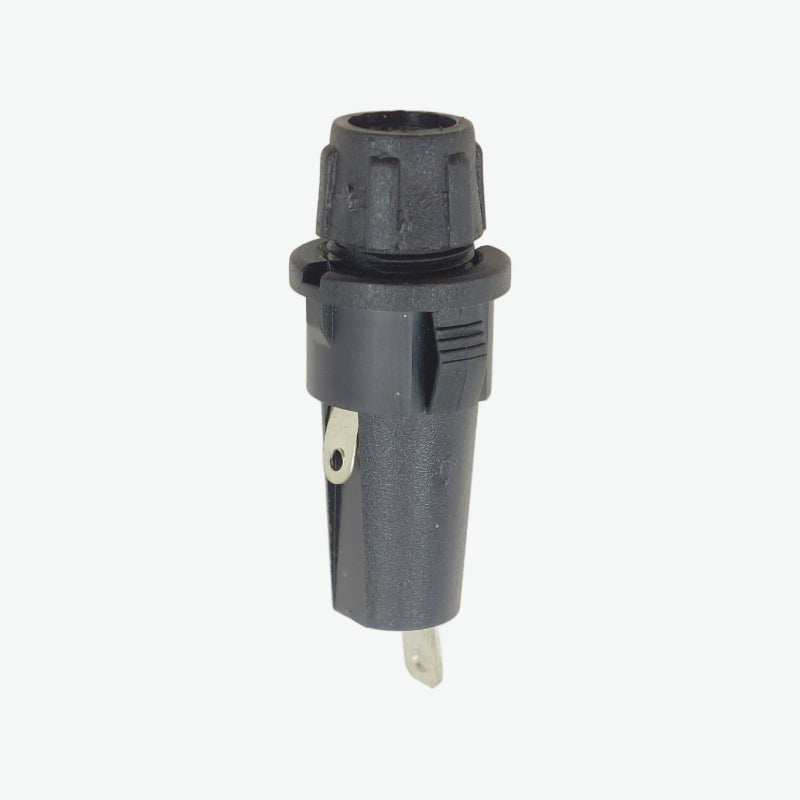

Snap-In Panel Mount Fuse Holder (5×20mm) - 6.3A 250V AC
The Snap-In Panel Mount Fuse Holder offers a secure and compact solution for mounting 5×20mm fuse links in electronic and electrical devices. Designed for quick snap-in panel installation, it eliminates the need for screws while maintaining a firm hold. The durable Polyamide Glass-Filled (G.F.) body ensures excellent heat resistance and insulation, while the brass tin-plated contacts provide consistent electrical conductivity and long-lasting performance.
Features:
- Snap-in panel mount design for fast and easy installation
- Compatible with standard 5×20mm fuse links
- Screw-in cap design allows easy fuse replacement
- Durable Polyamide G.F. body ensures high insulation and temperature resistance
- Brass tin-plated contacts for stable conductivity and corrosion protection
- Compact and lightweight for efficient panel design
Specifications:
- Type: Snap-In Panel Mount Fuse Holder
- Mounting Style: Panel, Snap-In
- Material: Polyamide G.F. (Glass-Filled)
- Fuse Size: 5×20mm
- Rated Current/Voltage: 6.3A / 250V AC
- Terminals: Solder Type
- Current Carrying Parts: Brass, Tin-Plated
- Cap Design: Screw-In
- Panel Thickness (Max.): 3mm
- Insulation Resistance: ≥1000 MΩ
- Contact Resistance (Initial): ≤10 mΩ
- High Voltage Breakdown: 2KV AC for 1 minute
- Permissible Temperature (With/Without Load): -20°C to +85°C
- Approximate Weight: 4.1g
Package Includes:
1 × Snap-In Panel Mount Fuse Holder – 5×20mm 6.3A 250V AC
