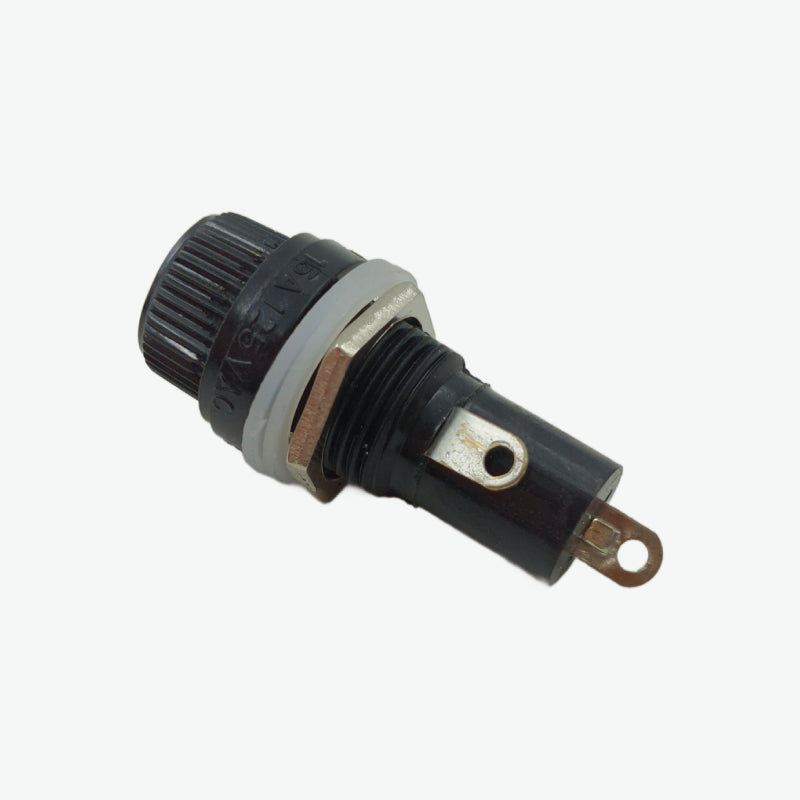

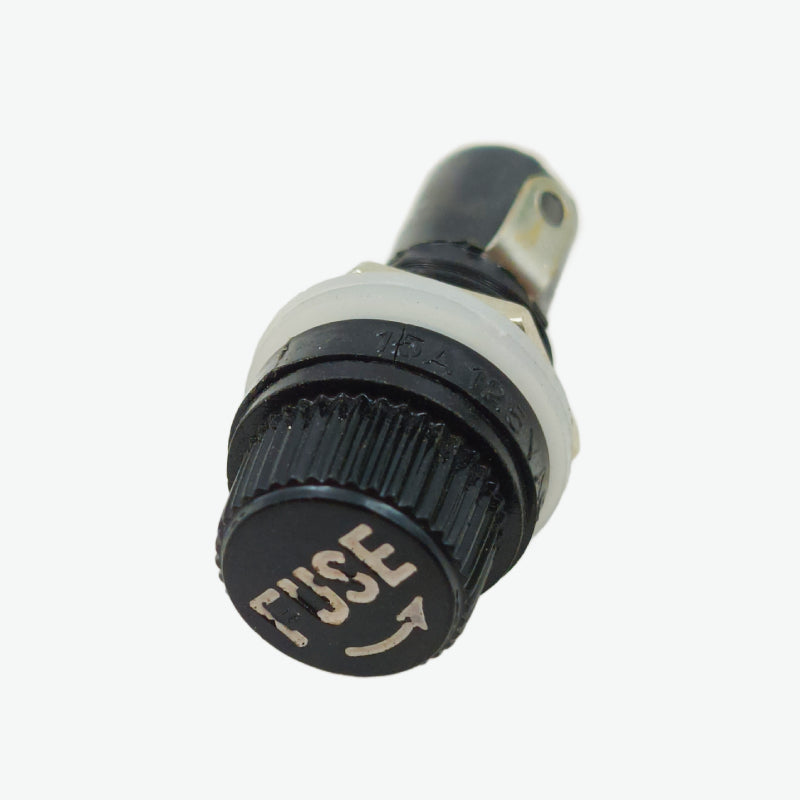

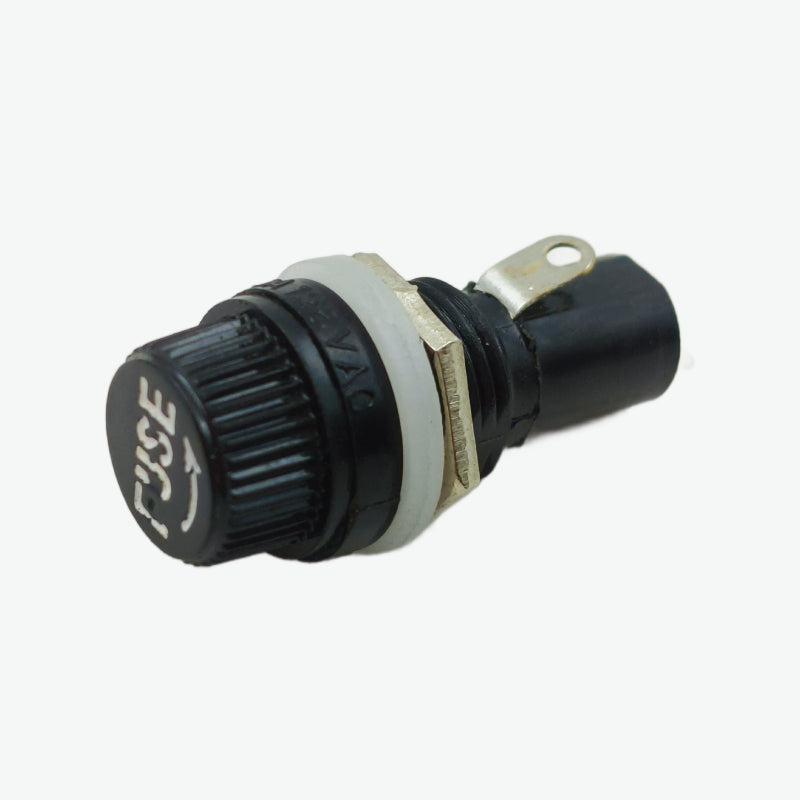

The Screw-In Panel Mount Fuse Holder is a durable and reliable solution for mounting 5×20mm fuses in electronic and industrial equipment. Designed for secure panel installation, it features a screw-in cap design with a metal nut for easy and stable mounting. Its Bakelite insulation and brass tin-plated contacts ensure safe and efficient current flow, while maintaining high insulation and voltage withstand performance.
Features:
- Panel-mount screw-in fuse holder with metal nut for secure installation
- Suitable for standard 5×20mm fuse links
- Durable Bakelite housing provides high mechanical strength and insulation
- Brass tin-plated contacts for reliable electrical performance
- Low initial contact resistance: ≤10 mΩ
- Screw-in cap design for convenient fuse replacement
Specifications:
- Type: Panel Mount Screw-In Fuse Holder
- Fuse Size: 5×20mm
- Rated Current/Voltage: 10A / 250V AC
- Mounting Style: Panel, Screw-In with Metal Nut
- Material: Bakelite (Housing)
- Contact Material: Brass, Tin-Plated
- Terminals: Solder Type
- Insulation Resistance: ≥1000 MΩ
- High Voltage Breakdown: 2KV AC for 1 minute
- Contact Resistance (Initial): ≤10 mΩ
- Cap Design: Screw-In
- Maximum Panel Thickness: 3mm
- Permissible Temperature With/Without Load: -20°C to +85°C
- Permissible Soldering Temperature: 27°C for 5 seconds max
- Approximate Weight: 5.5g
Package Includes:
1 × Screw-In Panel Mount Fuse Holder – 5×20mm, 10A 250V AC
