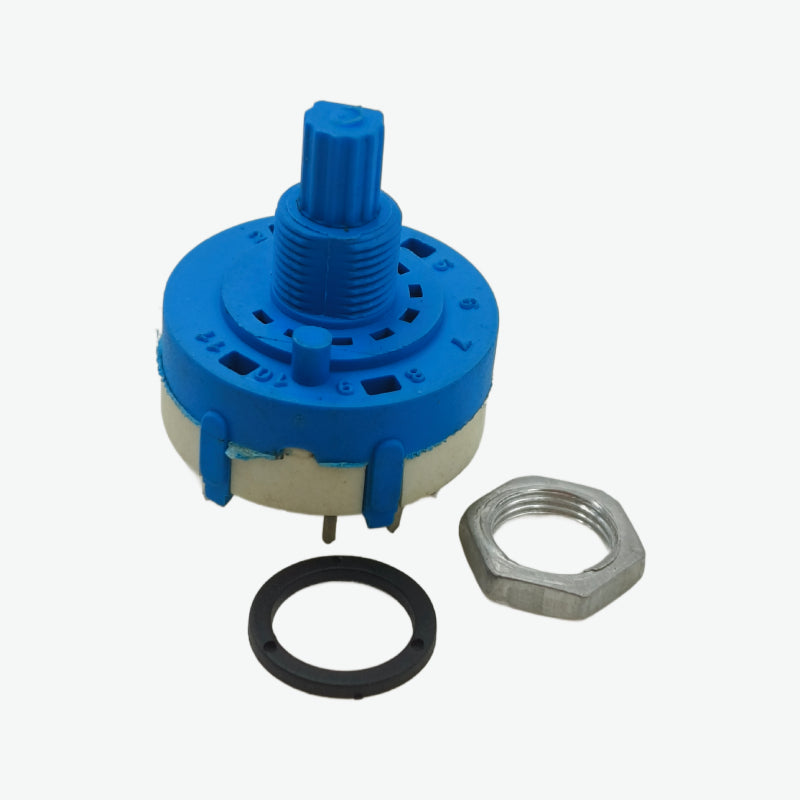

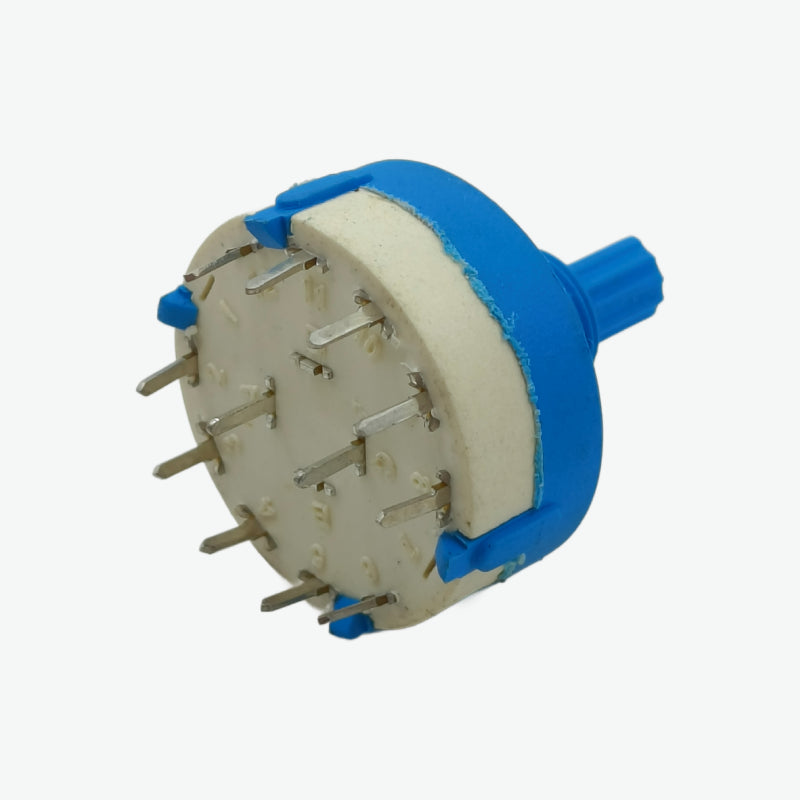

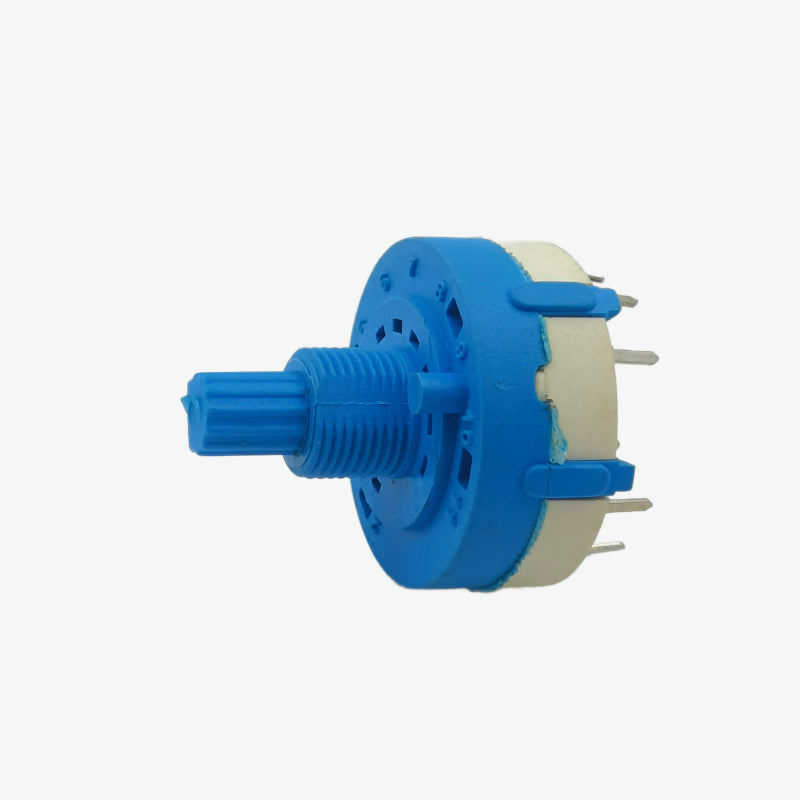

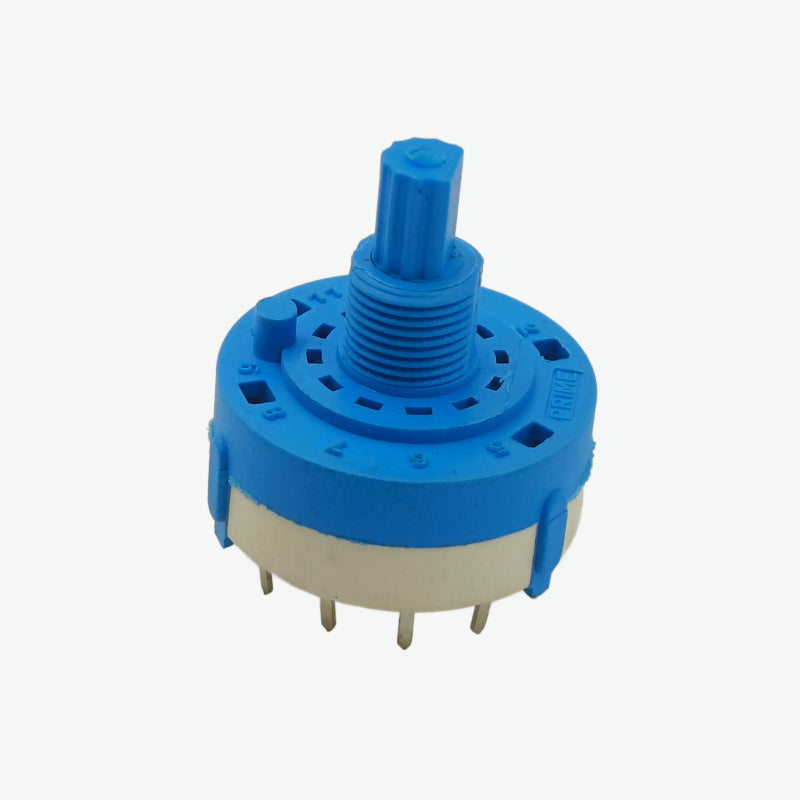

The 2 Pole 5 Way 26 mm Rotary Switch is a high-performance control device designed for smooth and accurate,regulation. Built with robust engineering thermoplastic and precision metal components, it ensures excellent durability, superior insulation, and long electrical endurance. Its 5-step rotary mechanism allows precise control of electricity, making it suitable for residential, industrial, and commercial applications.
Features:
- Rated for 5A at 250V AC, ideal for ceiling fan control
- 5-step rotary operation for smooth speed adjustment
- High insulation resistance ensures electrical safety
- Excellent dielectric strength for reliable performance
- Rugged thermoplastic housing for enhanced durability
- Tin/Silver-plated terminals for stable and low-resistance contact
- Long-lasting steel spring mechanism for consistent rotation
Specifications:
- Model: 2 Pole 5 Way Rotary Switch
- No. of Poles: 2
- Diameter: 26mm
- Type: 5 Way Rotary
- Rated Voltage: 250V AC
- Rated Current: 5A
- Insulation Resistance: >1000 MΩ (at 500V DC)
- Dielectric Strength: >2KV
- Breakdown Voltage: 500V AC (50Hz, 2mA)
- Moulded Parts: Engineering Thermoplastic
- Terminal & Wiper: Tin/Silver Plated
- Electrical Endurance: 5,000 Cycles @ 80W Fan Load
- Axial Load: 5Kg Min.
- End Torque: 4Kg·cm Max.
- Nut Torque: 0.80Nm Max.
Package Includes:
1 × 2 Pole 5 Way 26 mm Rotary Switch-5A 250V AC
