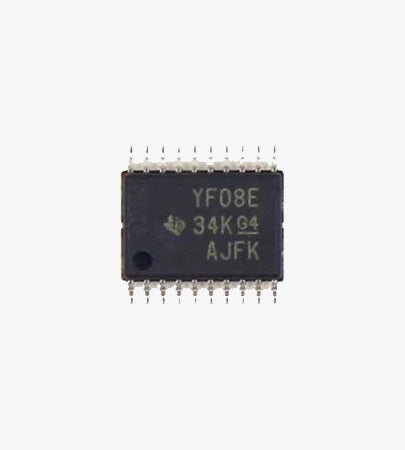

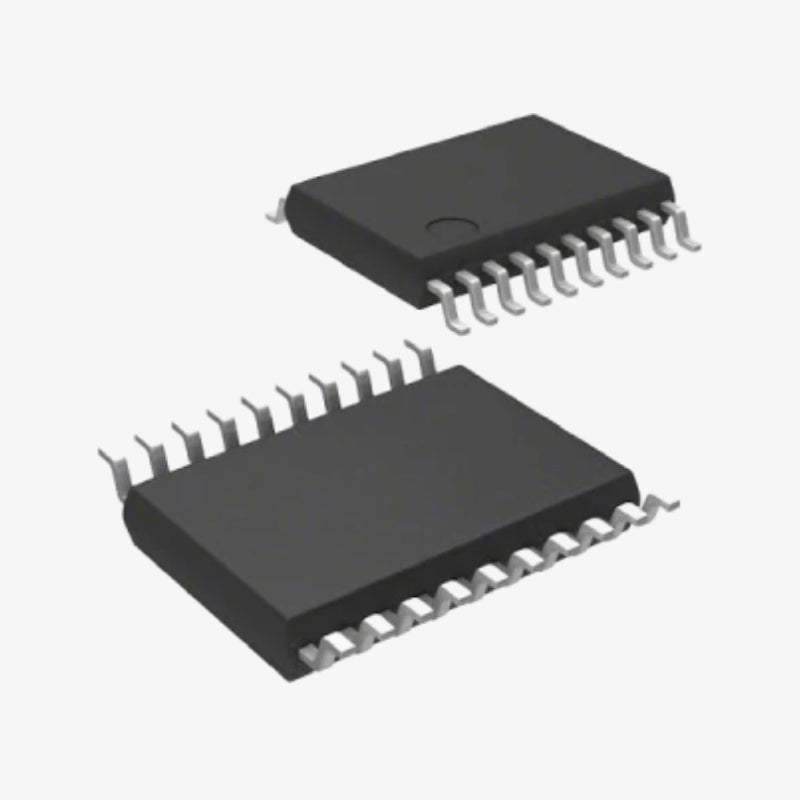

TXS0108EPWR 8-Bit Bidirectional Level Shifter IC (TI) - TSSOP-20 SMD Package
The TXS0108EPWR is an 8-bit bidirectional voltage-level translator IC designed by Texas Instruments. It provides seamless voltage shifting between different logic levels ranging from 1.2V to 3.6V on A-port and 1.65V to 5.5V on B-port, making it ideal for interfacing devices with different voltage requirements. Its auto-direction sensing feature eliminates the need for a direction control pin, simplifying design. This compact TSSOP-20 SMD package is widely used in microcontroller, FPGA, I2C, SPI, and UART interfacing applications.
Features of TXS0108EPWR 8-Bit Level Shifter IC:
- 8-bit bidirectional voltage-level translator
- Supports wide voltage range: 1.2V to 3.6V (A-port) and 1.65V to 5.5V (B-port)
- Auto-direction sensing – no need for direction control pin
- Suitable for I2C, SPI, UART, and GPIO level shifting
- Low power consumption and high-speed operation
- ESD protection: ±15kV (HBM)
- Compact TSSOP-20 SMD package for space-saving PCB designs
- RoHS compliant and industry-standard reliability
Specifications of TXS0108EPWR IC:
- Model: TXS0108EPWR
- Function: 8-bit bidirectional voltage level shifter
- Voltage Range A-Port: 1.2V – 3.6V
- Voltage Range B-Port: 1.65V – 5.5V
- Data Rate: 60Mbps (Push-pull), 2Mbps (Open-drain)
- Package: TSSOP-20 – SMD
- Operating Temperature: -40°C to +85°C
- Manufacturer: Texas Instruments (TI)
Package Includes:
1 × TXS0108EPWR 8-Bit Bidirectional Level Shifter IC – TSSOP-20 – SMD
