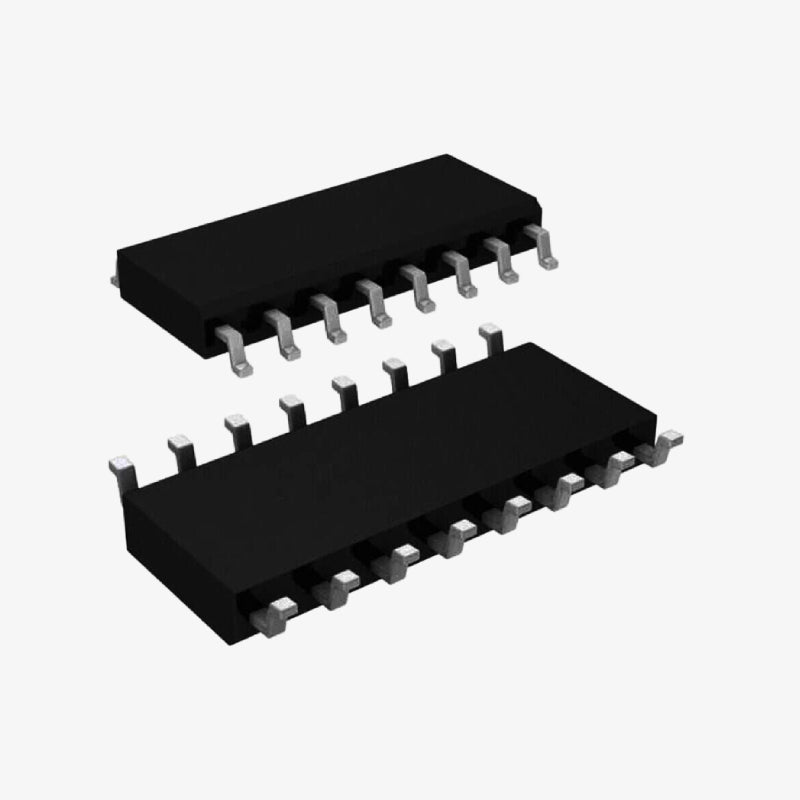

The SG3525AP is a high-efficiency pulse width modulation (PWM) controller IC, designed specifically for switching power supplies and DC-DC converters. With a wide supply voltage range from 8V to 35V and support for switching frequencies up to 500kHz, it is ideal for a variety of power regulation applications. The IC includes a built-in oscillator, error amplifier, soft start, and undervoltage lockout (UVLO) functions. Dual totem-pole outputs can directly drive external power MOSFETs or bipolar transistors. Housed in a NSOIC-16 SMD package, this IC is suitable for compact and space-efficient designs.
Features of SG3525AP PWM Controller IC:
- Wide operating supply voltage range: 8V to 35V
- High switching frequency support up to 500kHz
- Built-in oscillator with external timing resistor and capacitor
- Integrated soft start and undervoltage lockout (UVLO)
- Dual push-pull outputs with 500mA peak current capability
- On-chip error amplifier for closed-loop control
- SMD NSOIC-16 package for compact surface-mount applications
- Compatible with both MOSFET and BJT switching devices
Specifications of SG3525AP PWM IC:
- Model: SG3525AP
- Function: PWM Controller
- Supply Voltage: 8V – 35V
- Switching Frequency: Up to 500kHz
- Output Current: 500mA (peak per output)
- Package: NSOIC-16 – SMD
- Operating Temperature: 0°C to +70°C
- Brand: Generic
Package Includes:
1 × SG3525AP PWM Controller IC – NSOIC-16 – SMD Package
