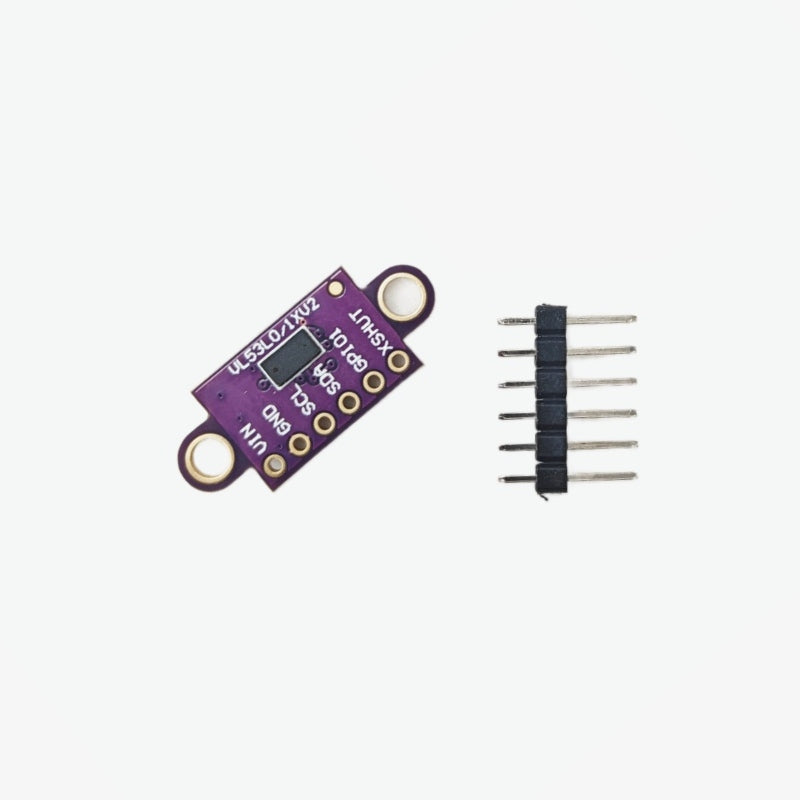

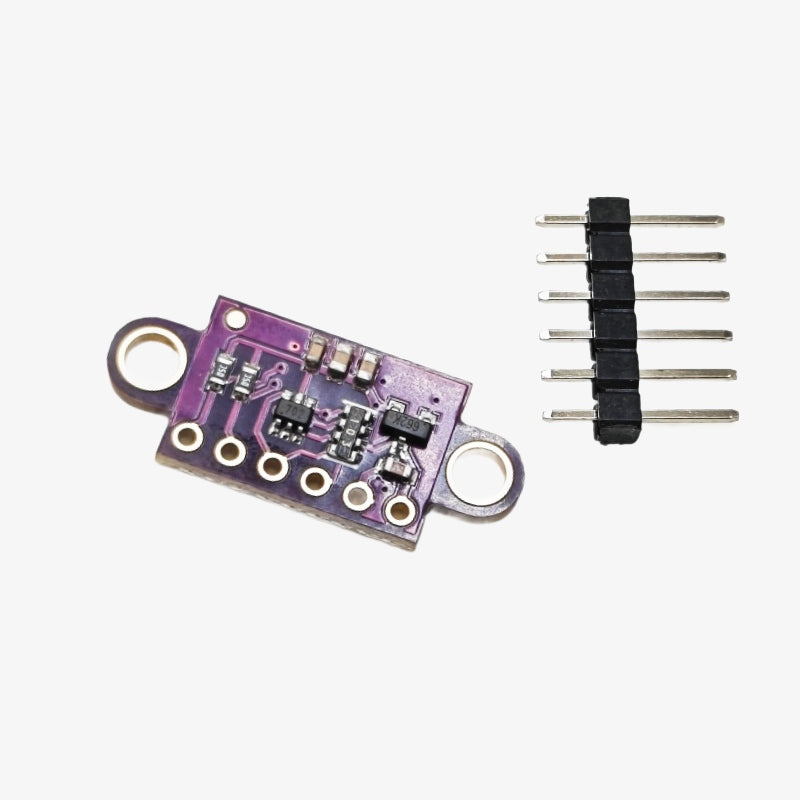

The GY-53 VL53L0X is a high-precision laser Time-of-Flight (ToF) ranging distance sensor module that measures distances with millimeter-level accuracy. Its compact design and advanced technology make it ideal for robotics, drones, and proximity detection applications.
Features
- Laser ToF Technology: Measures distance based on the time taken for light to return, ensuring precise readings.
- High Accuracy: Provides millimeter-level measurement accuracy.
- Wide Measurement Range: Supports distances from 30mm to 2000mm.
- Multiple Interfaces: Supports I2C and PWM communication for flexibility in integration.
- Compact Design: Lightweight and space-efficient for embedded applications.
- Low Power Consumption: Suitable for battery-powered devices.
Specifications
- Sensor Model: VL53L0X.
- Measurement Range: 30mm to 2000mm.
- Operating Voltage: 3.3V–5V.
- Communication Interface: I2C (default address: 0x29) and PWM.
- Field of View (FoV): ±15°.
- Response Time: <50ms for distance measurement.
- Dimensions: L - 25mm, W: 12.2mm
Applications
- Obstacle avoidance in robotics and drones.
- Proximity sensing in industrial automation.
- Gesture recognition and presence detection.
- Depth sensing and mapping.
Pinout:
- VIN (VCC): Power supply input, typically 2.6V to 5V.
- GND: Ground connection.
- SCL: Serial Clock Line for I2C communication.
- SDA: Serial Data Line for I2C communication.
- XSHUT: Shutdown pin to control the sensor's power state.
- GPIO1 (optional): Interrupt output for signaling specific events.
