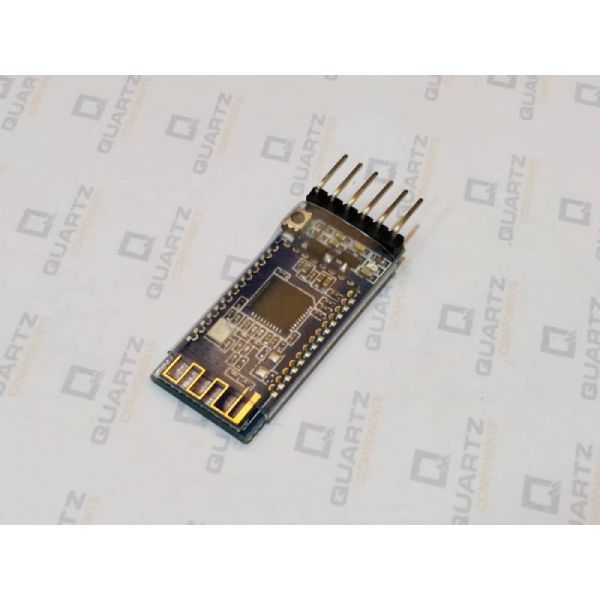

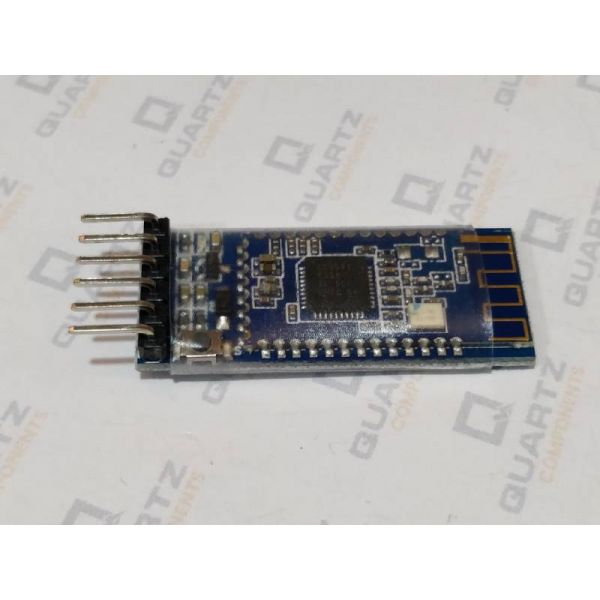

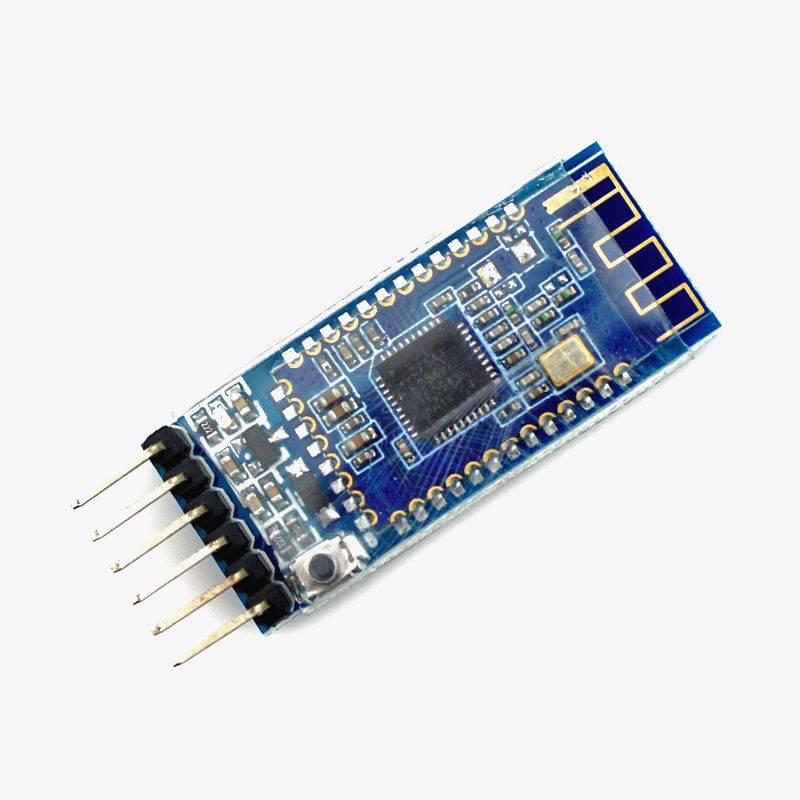

HM-10 Bluetooth Module - AT-09 Bluetooth 4.0 UART Transceiver Module CC2541
HM-10 Bluetooth module is a Bluetooth Low Energy (Bluetooth 4.0) development module based on the CC02541 Chip from Texas Instruments. The module communicates through UART protocol using AT commands. It can be used to communicate with all BLE devices like Fitness bands, Bluetooth trackers etc or even used as an iBeacon.
The module has a built-in CPU that supports IO expansion, 14-bit two channel ADC, 120Hz four channel PWM etc. It has a range of 60 meters and consumes very low power in standby mode. The module can act both as a Master and as a Slave.

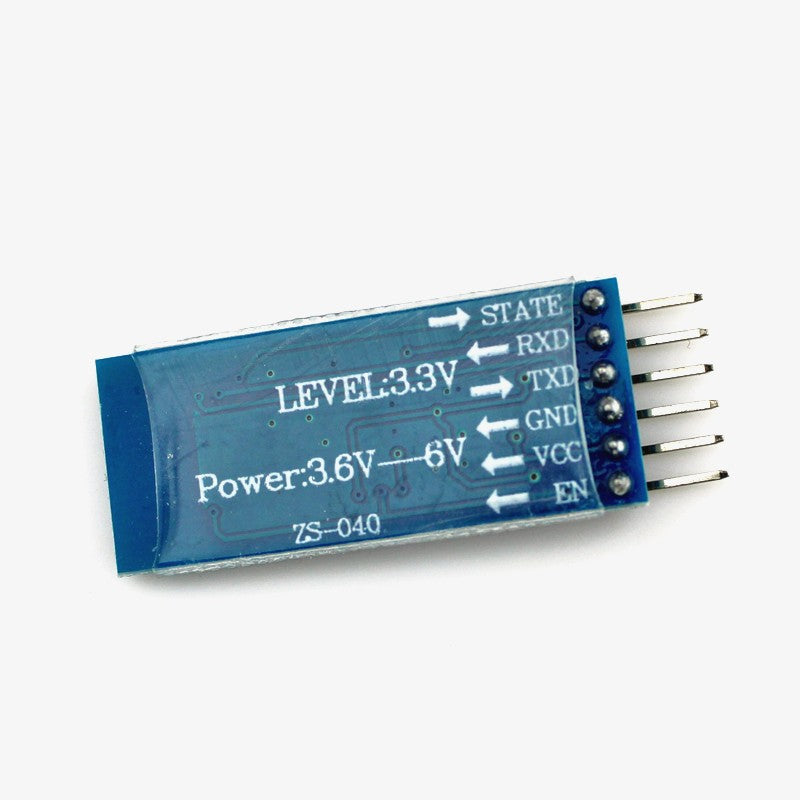

HM-10 Bluetooth Module pinout:
HM-10 Bluetooth Module features, Specification:
Features:
- Bluetooth Protocol Specification: Bluetooth Specification V4.0 BLE
- Supported USB Protocol: USB V2.0
- Operating Frequency: 2.4GHz ISM band
- Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
- Transmitting Power: ≤4dBm
- Sensitivity: ≤-84dBm at 0.1% BER
- It’s easy to use and completely encapsulated.
- You can set it as slave or master.
- You can use AT command set the baud rate
- Coverage up to 60 meters.
- Built-in PCB antenna.
- UART design.
- Support bridge direct-driven mode simultaneously (no need for extra CPU).
- 20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.
- Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).
- Support APP; IO expansion.
- 2 channel ADC input (14 bit).
- 4 channel PWM (120Hz) output.
- The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).
- Power indicator/alert.
- Support anti-hijack password setup, modification, and restoration.
- Ultra-low power consumption standby mode
Specification:
- Input Supply voltage (V) : 5
- USB Protocol : USB V2.0
- Operating Frequency : 2.4GHz ISM band
- Modulation Mode : GFSK
- Transmitting Power (dBm) : ≤4
- Coverage Range (m) : 60
- Sensitivity : ≤-84dBm at 0.1% BER
- Length (mm) : 47
- Width (mm) : 17
- Height (mm) : 8
- Weight (gm) : 4
HM-10 Bluetooth Module Applications:
- Bluetooth Communication
- BLE Devices
- Indoor Navigation
- Robotics
HM-10 Bluetooth Module Dimension and footprint:
Example Projects on HM-10 Bluetooth Module:
Controlling HM-10 using mobile phone
Additional Resources:
HM-10 Bluetooth Module Datasheet
Package Contains
1x HM-10 Bluetooth Module
