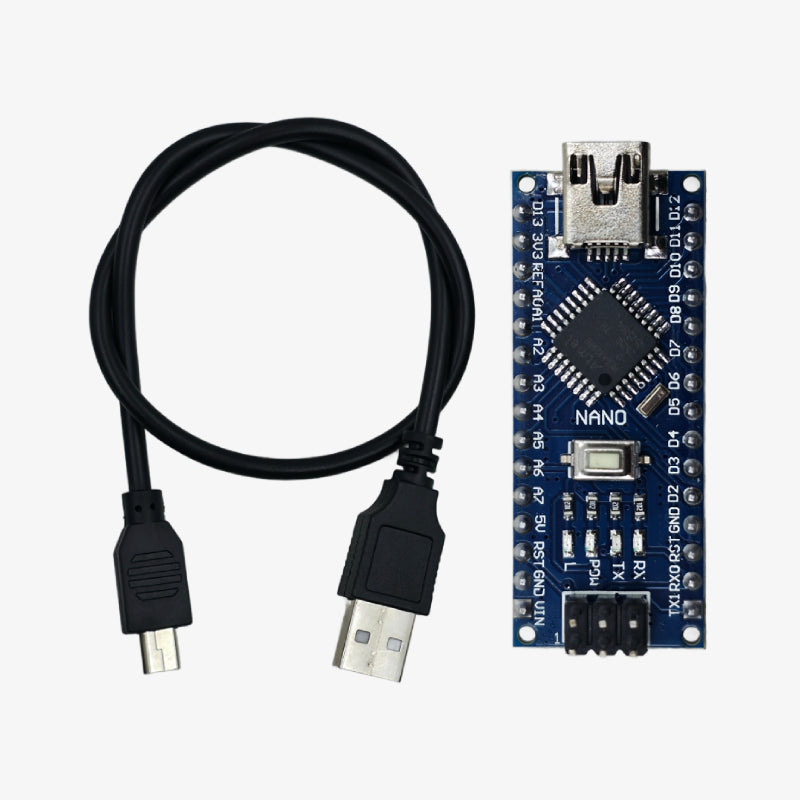

Nano R3 CH340 Chip Development Board With USB Mini Cable - Compatible with Arduino - Soldered
The Arduino Nano R3 CH340 with USB Mini Cable Combo is a compact, soldered, and ready-to-use development kit ideal for learning, prototyping, and building space-constrained electronics projects. Powered by the ATmega328P microcontroller, this soldered Nano board ensures stable connections and hassle-free usage, while the included USB Mini-B cable allows easy programming and reliable power through a single connection. Its small size and wide compatibility make it a popular choice for IoT, robotics, and automation applications.
Features:
- Compact and breadboard-friendly Arduino Nano R3 development board with soldered pins
- Based on ATmega328P microcontroller with CH340 USB-to-Serial interface
- Supports Serial, I2C, and SPI communication protocols
- USB Mini-B cable included for programming and power supply
- Ideal for IoT, robotics, automation, instrumentation, and control projects
Specifications:
- Microcontroller: ATmega328P / ATmega168 (SMD)
- USB Interface Chip: CH340
- Operating Voltage: 5 V
- Input Voltage (Vin): 6–20 V (unregulated)
- Clock Speed: 16 MHz
- Digital I/O Pins: 14 (6 PWM)
- Analog Input Pins: 8
- Flash Memory: 32 KB (2 KB used by bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- DC Current per I/O Pin: 40 mA

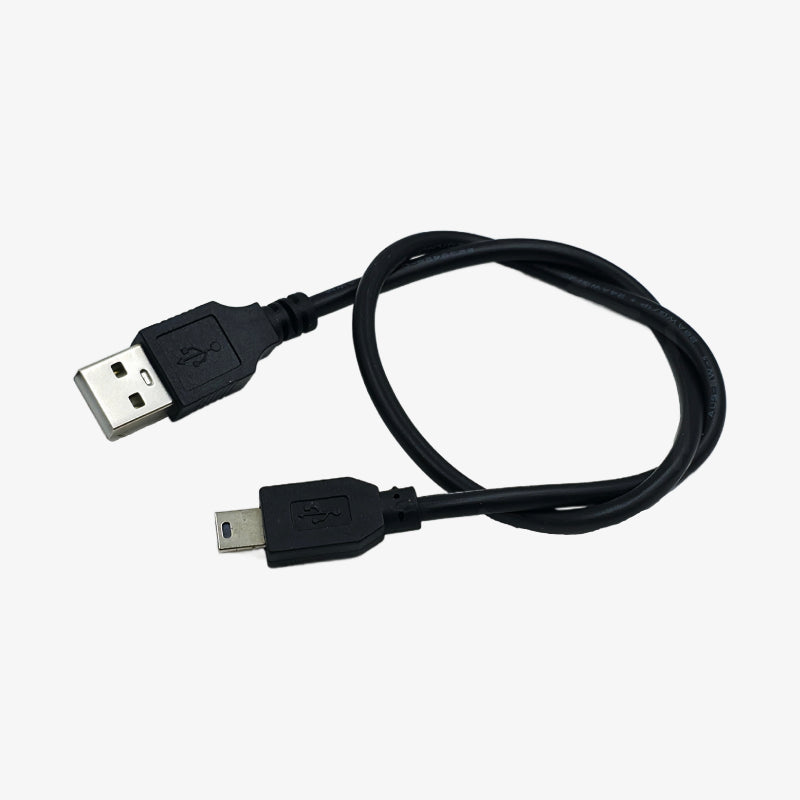

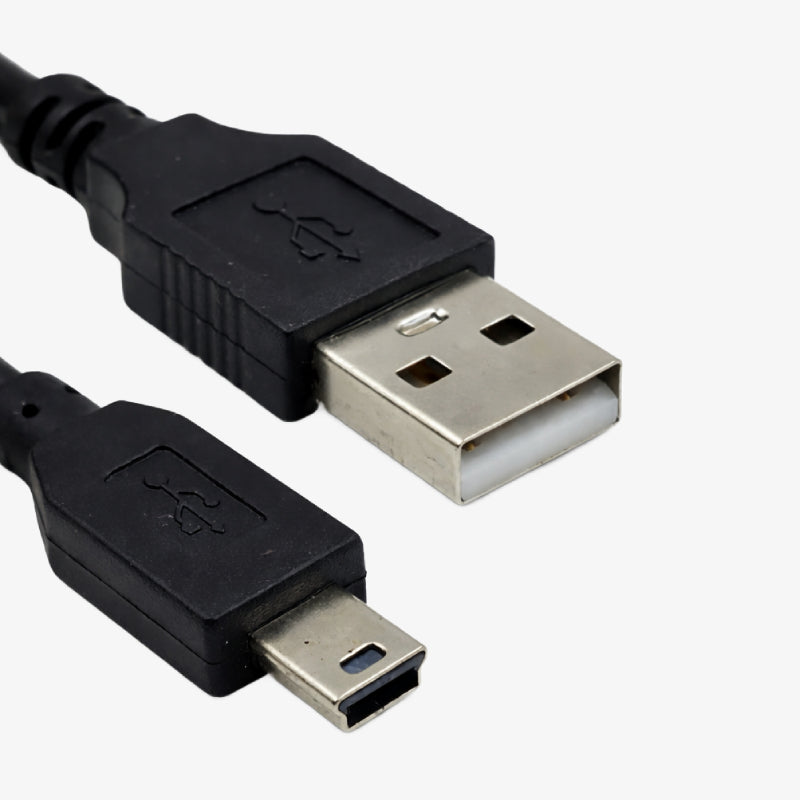

- USB Cable Type: USB 2.0 Type-A to USB Mini-B
- Cable Length: 30 cm
Package Includes:
1 × Arduino Nano R3 CH340 Chip Development Board (Soldered Pins)
1 × USB 2.0 Type-A to USB Mini-B Programming Cable (Blue/Black)
